Garmin GPSMAP 9010xsv – 10" premium chartplotter with sonar

In short: 10" premium chartplotter with built-in 1 kW sonar. WUXGA touchscreen, BlueNet gigabit network and a fast processor.

Key features

• 10.1" WUXGA IPS, edge-to-edge glass, easy to read in sunlight and with polarised sunglasses

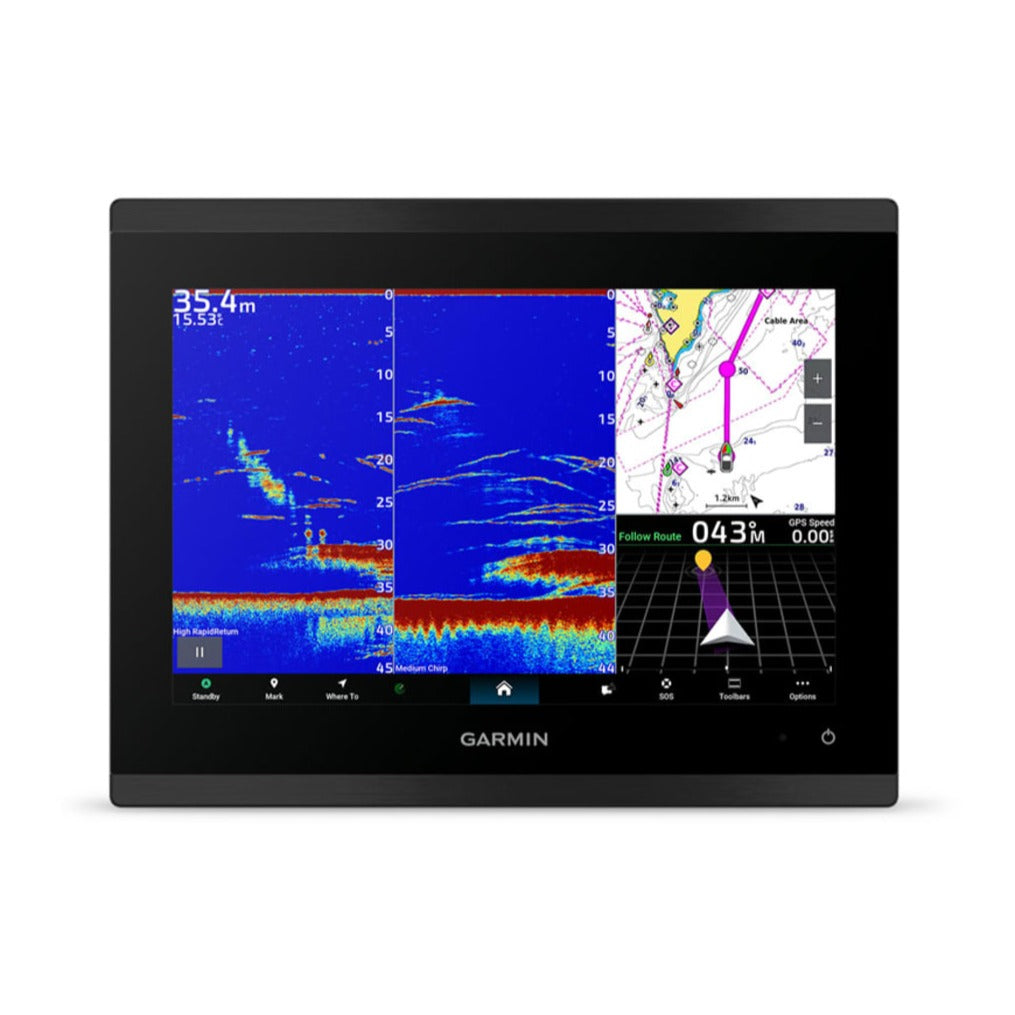

• Fast processor – chart, radar and sonar move smoothly even on split screen
• Garmin BlueNet gigabit network: connect other chartplotters, radar, cameras and sonar modules
• Multi-band GNSS receiver with 10 Hz update rate

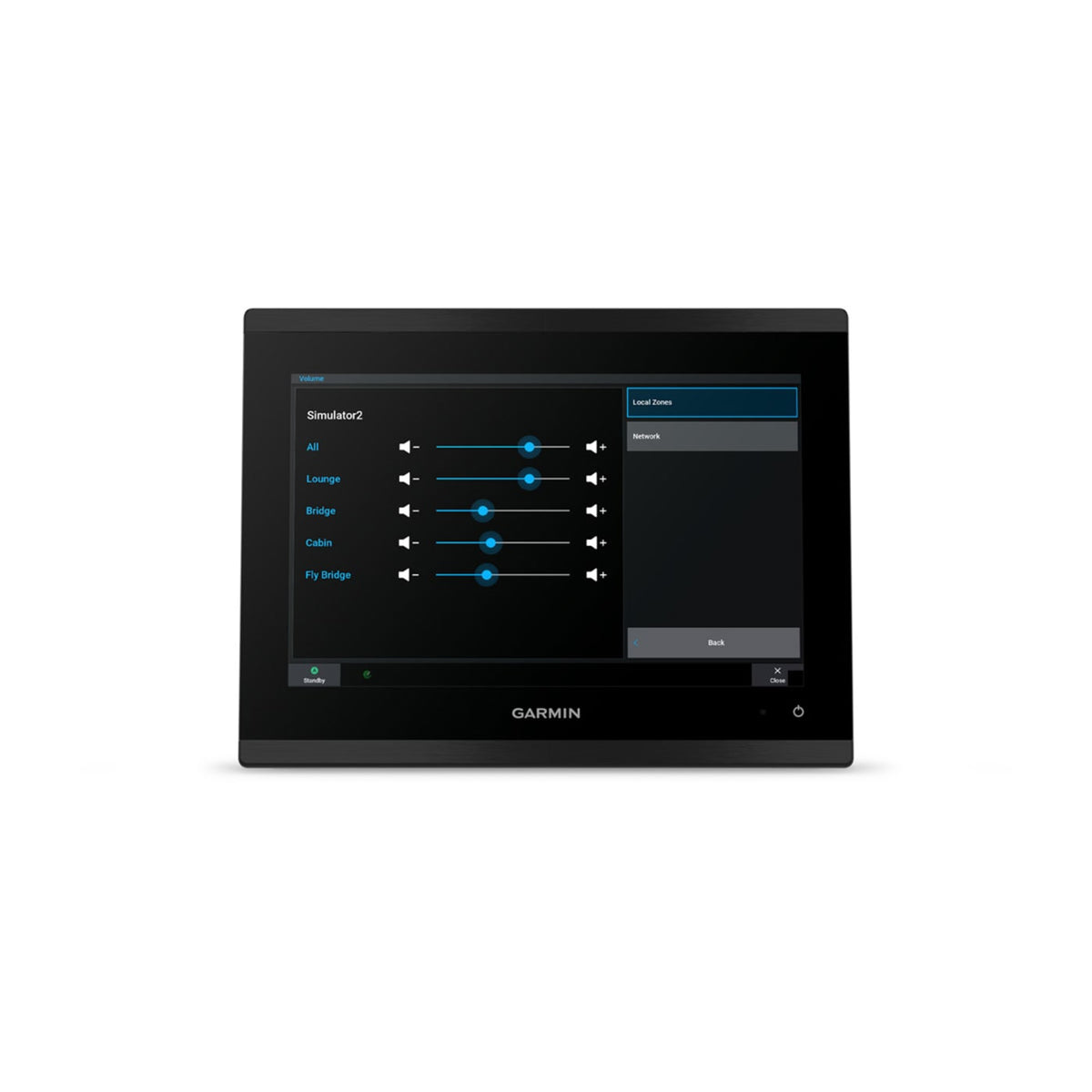

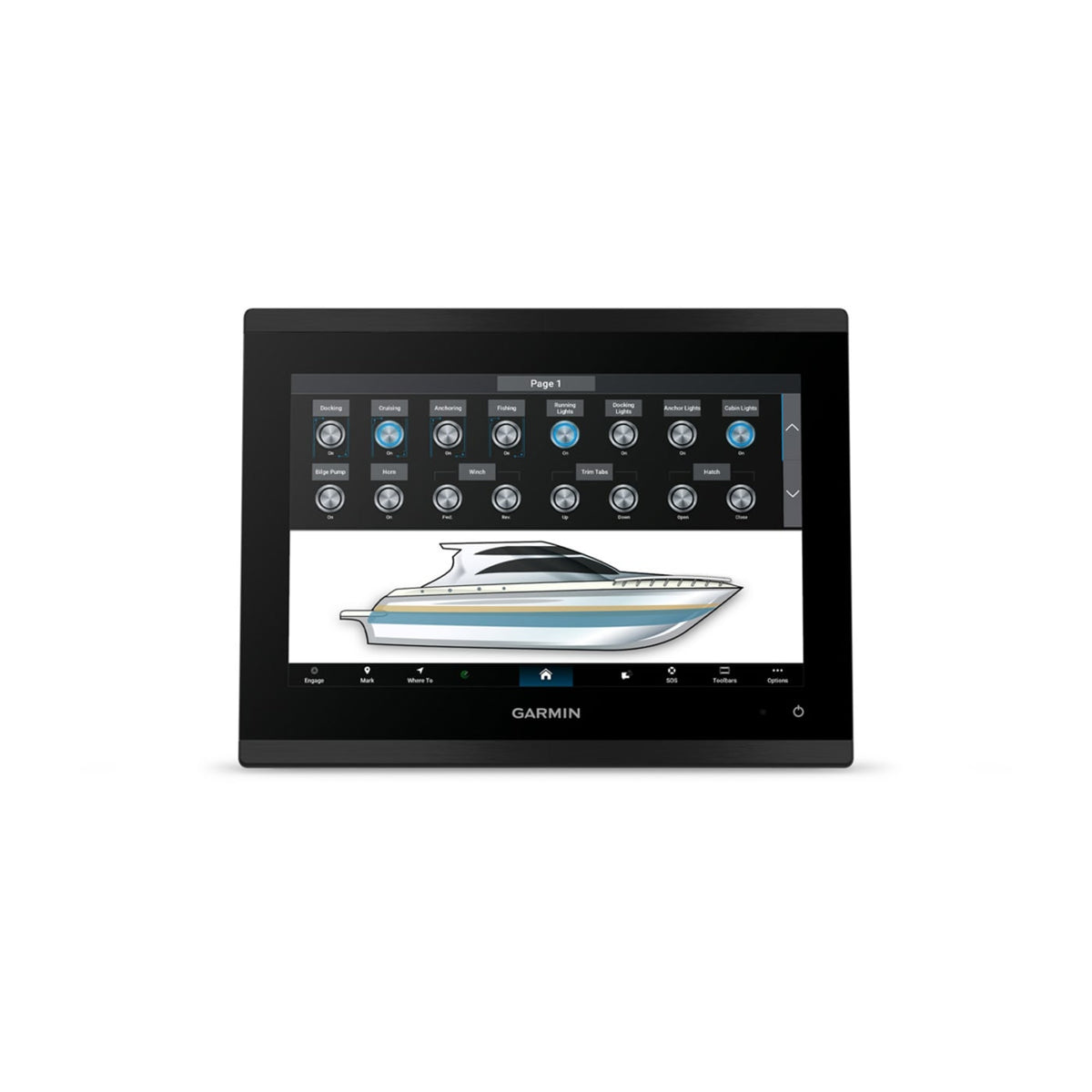

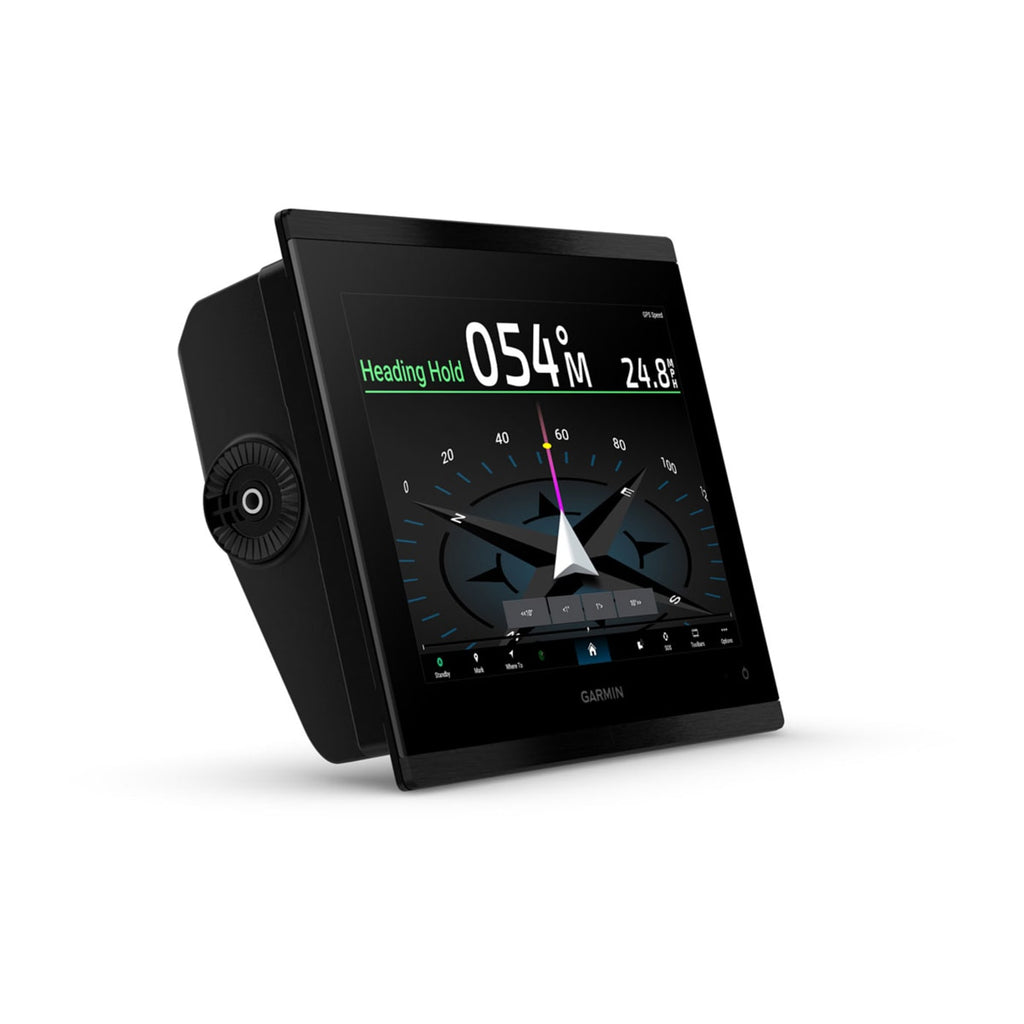

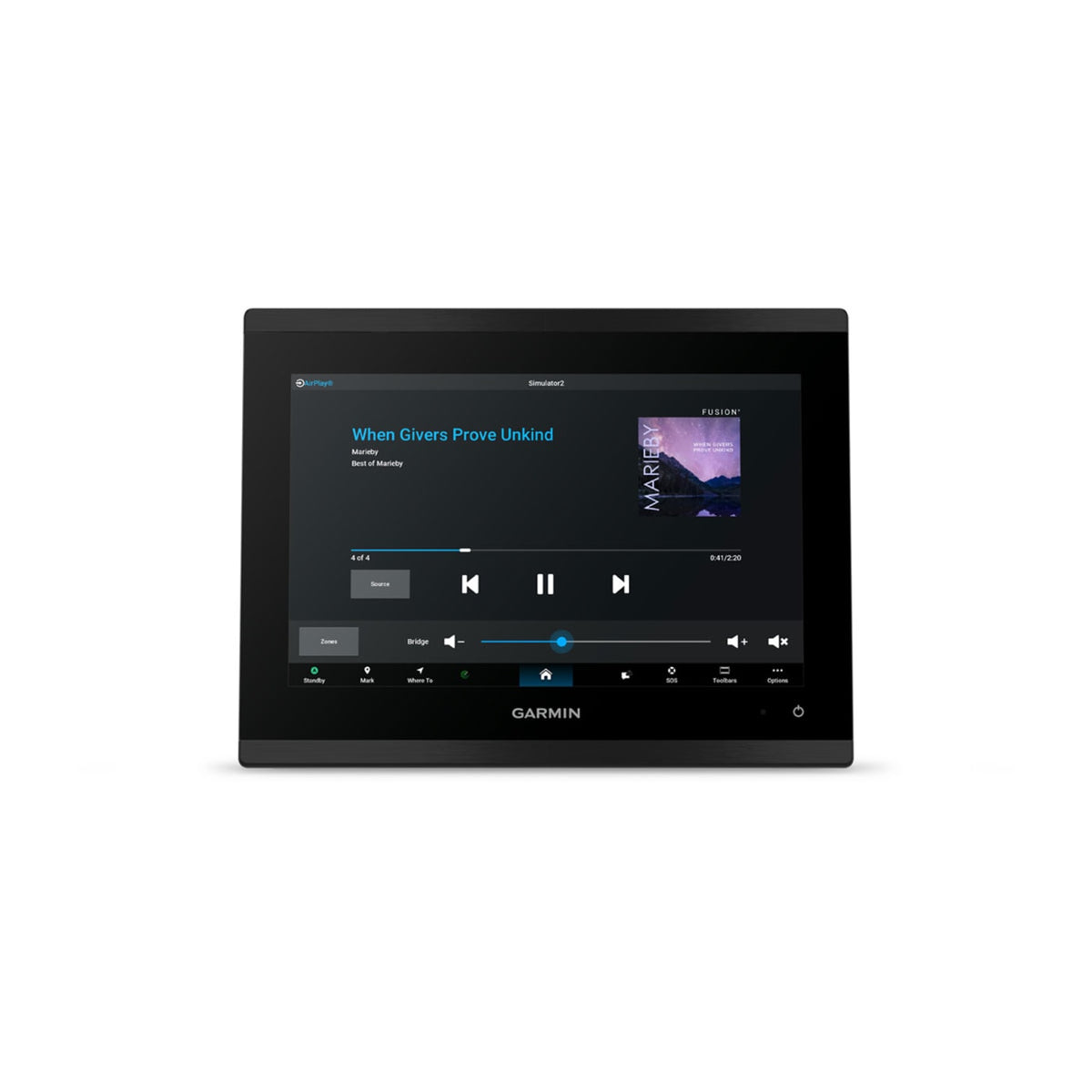

• Controls the autopilot, Fusion-Link audio and digital switching, and shows engine data (NMEA 2000, J1939)
• SmartMode and OneHelm – custom screen layouts and control of third-party systems from one screen
• ActiveCaptain app: software and chart updates, smartphone notifications

Built-in sonar

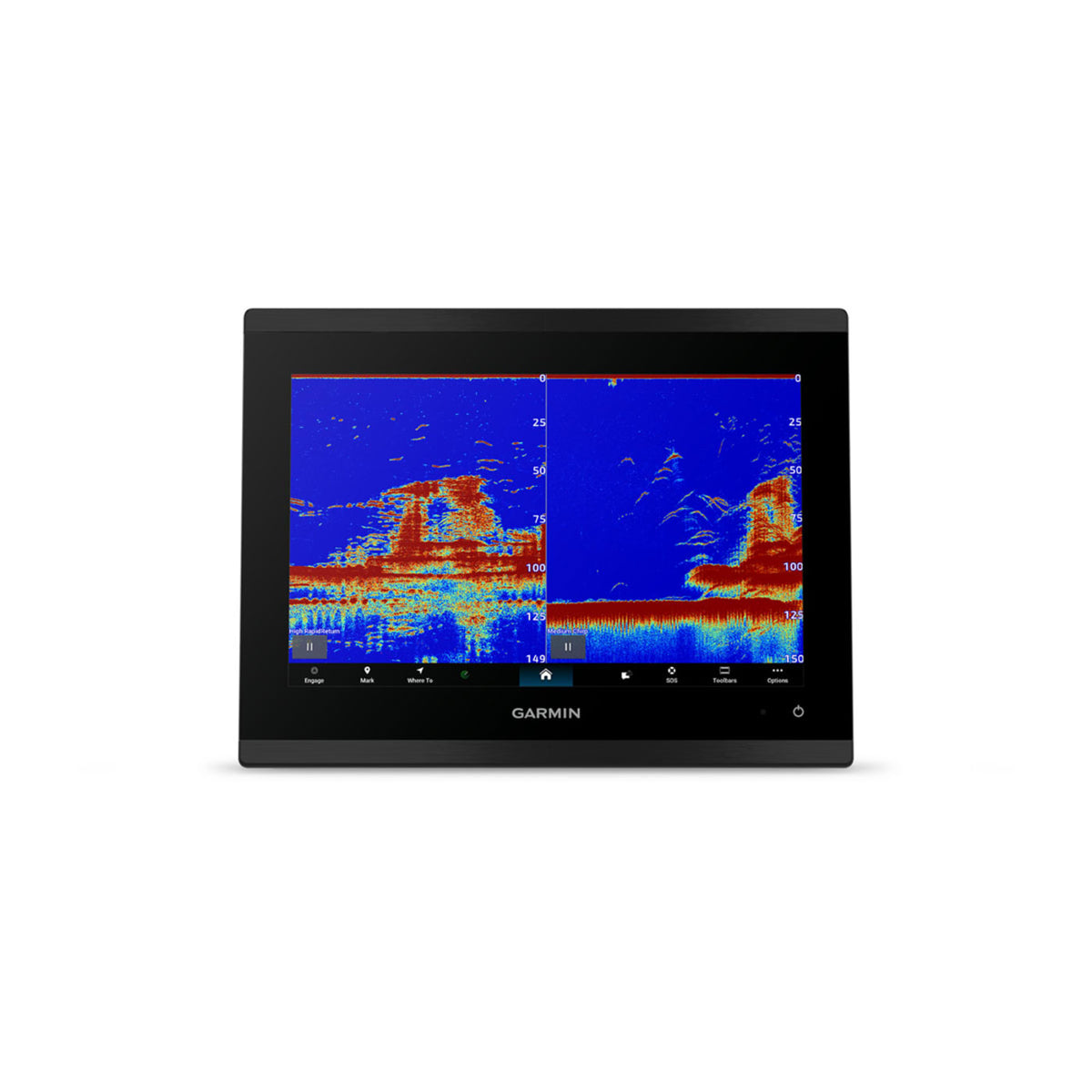

• 1 kW dual-frequency traditional CHIRP sonar
• xCHIRP and RapidReturn – faster refresh and better target separation
• ClearVü and SideVü (with a suitable transducer)

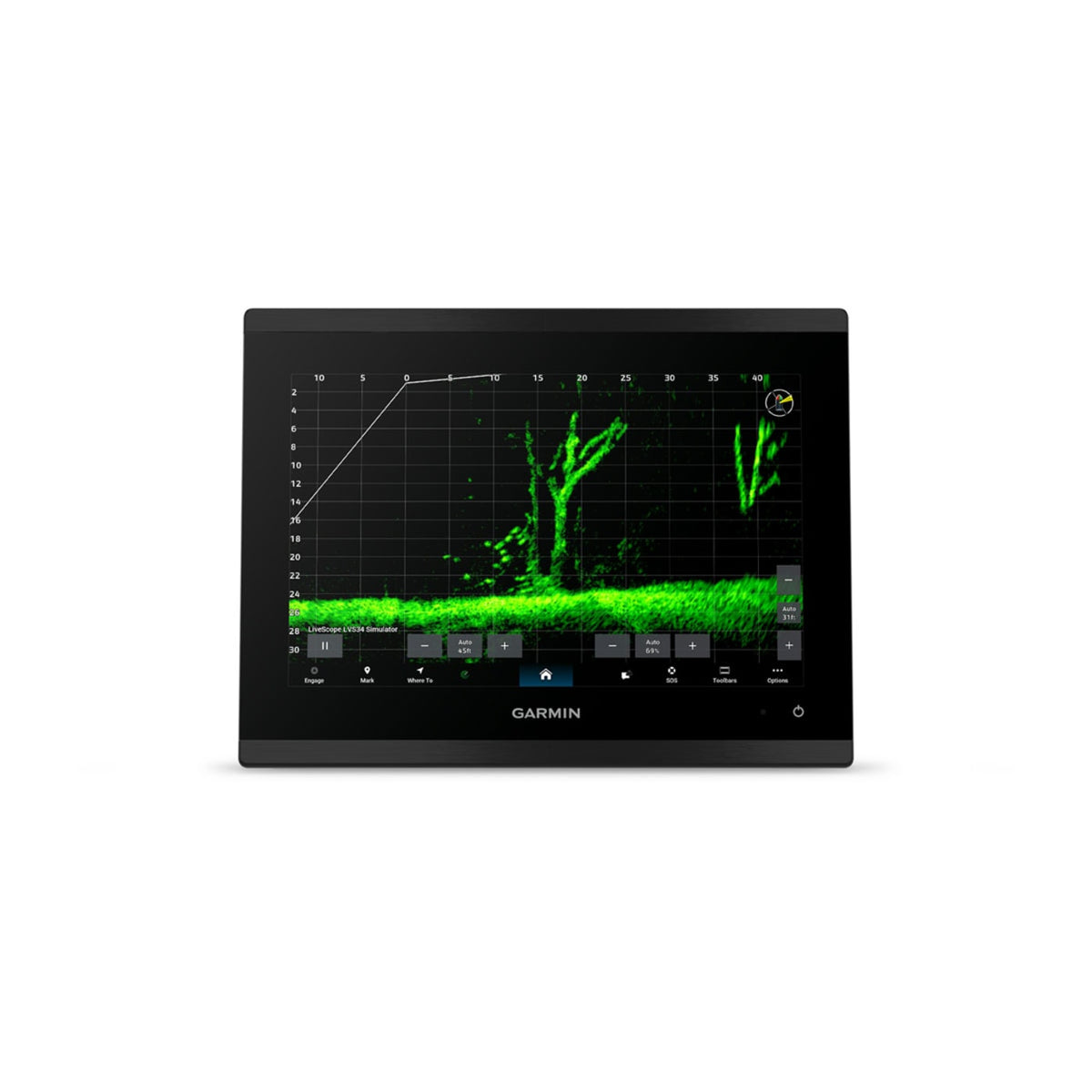

• Also supports Panoptix and LiveScope live sonar (separate system)

The transducer is not included. You will find compatible transducers below under “Compatible accessories” – if you are not sure which to choose, ask us.

Specifications

• Display: 10.1" WUXGA IPS, edge-to-edge glass, 1920 × 1200 px, touchscreen

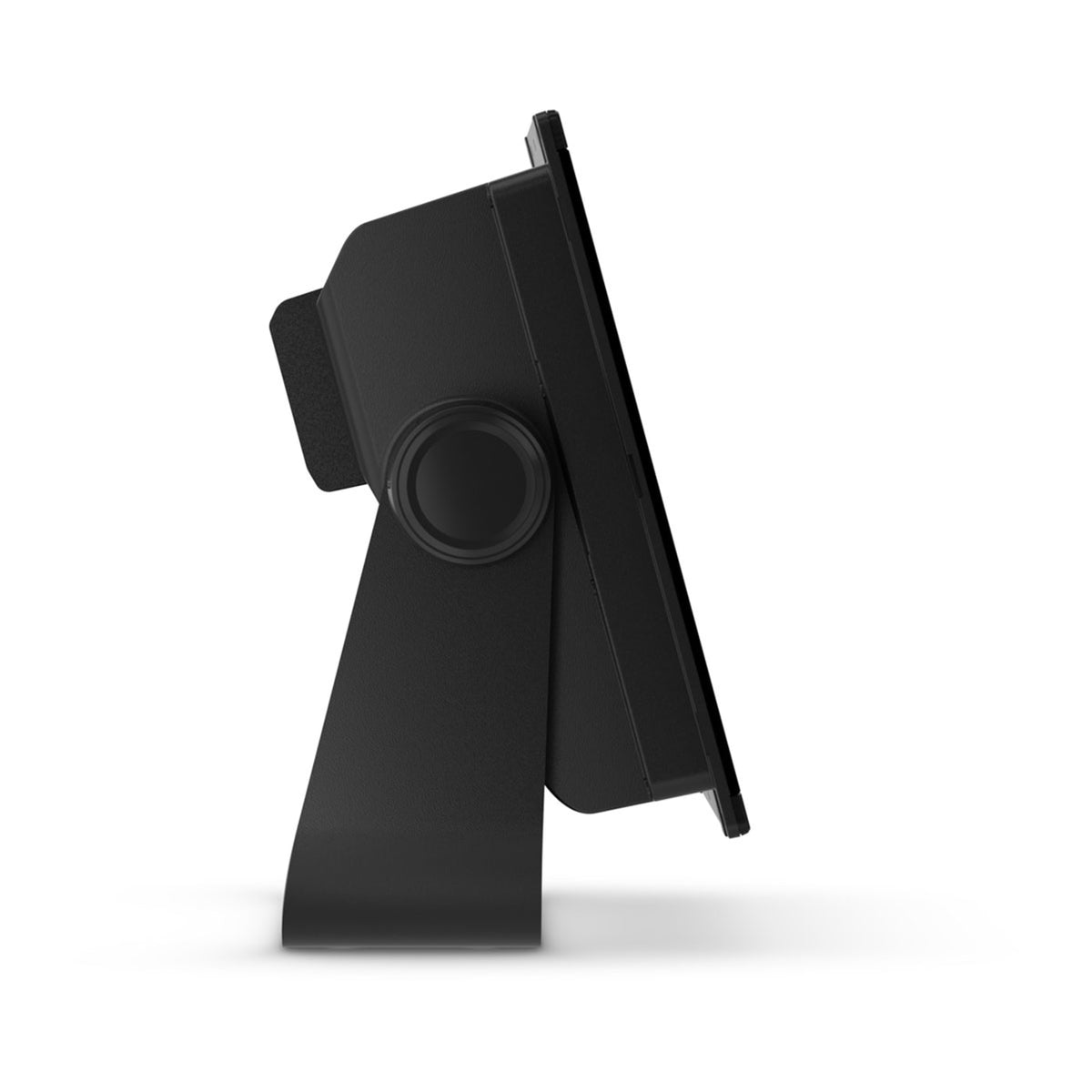

• Mounting: flush or flat
• Dimensions: 26 × 20 × 9.1 cm
• Weight: 2.52 kg
• Water rating: IPX7
• Power: 10–32 V DC
• Current draw at 12 V: typically 3.6 A
• GNSS: GPS, GLONASS, Galileo, BeiDou, multi-band, 10 Hz
• Connections: Garmin BlueNet gigabit network, NMEA 2000, NMEA 0183, J1939 (engine data), Wi-Fi, Bluetooth, USB-C, 2 BlueNet ports
• Video: HDMI in and out, BNC composite input
• Charts: 2 microSD slots; supports Garmin Navionics+ and Navionics Vision+, BlueChart g3 and Quickdraw Contours

Who it is for

Centre consoles, motorboats and sailing boats where you want both the chart and the sonar picture on one screen. The GPSMAP 9000 is Garmin’s current flagship series – if you are building a new electronics system for your boat, start here.
