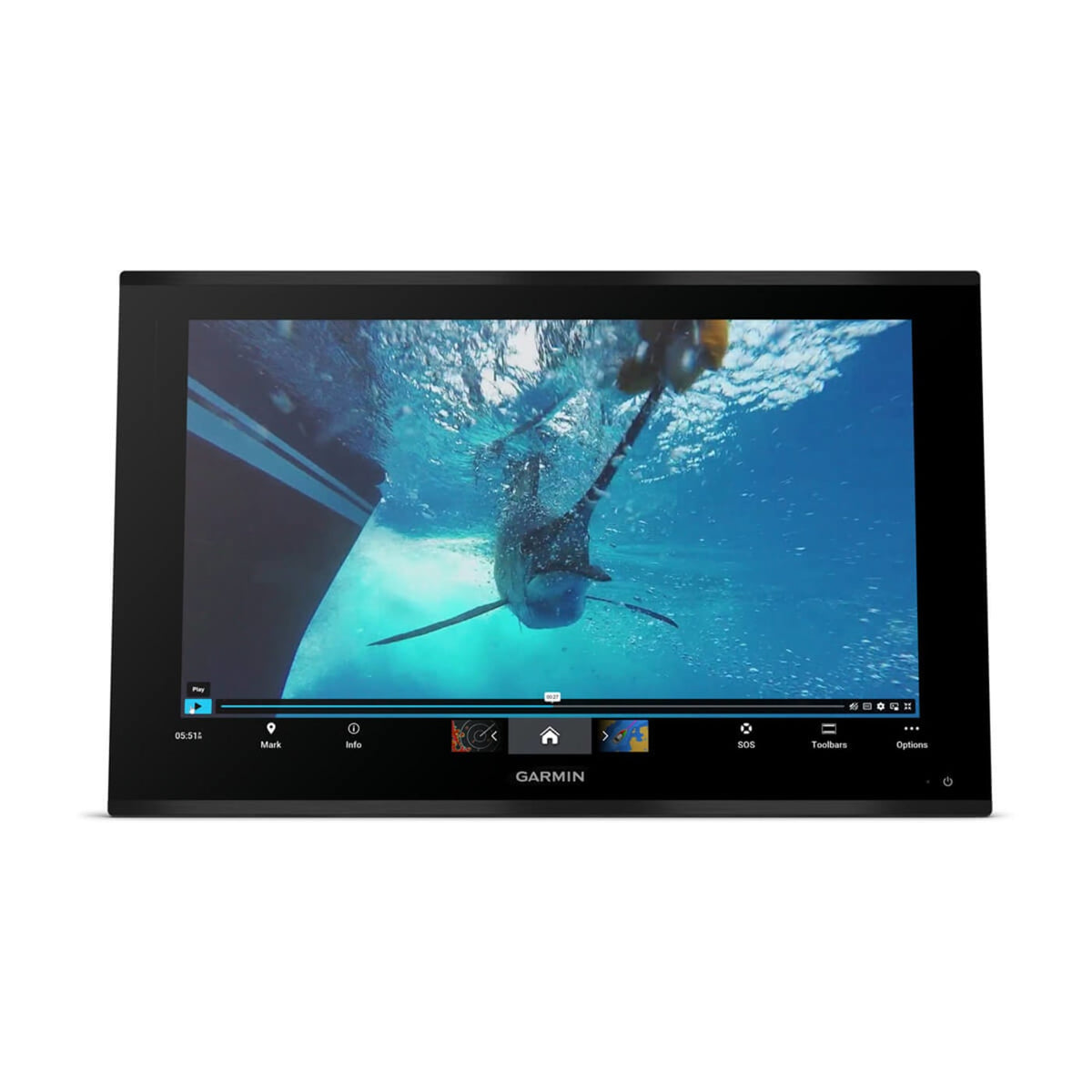

Garmin GPSMAP 9027 – 27" 4K premium chartplotter

In short: Premium 27" 4K touchscreen chartplotter for large boats and glass bridge installations. No built-in sonar – sonar connects via the network.

Key features

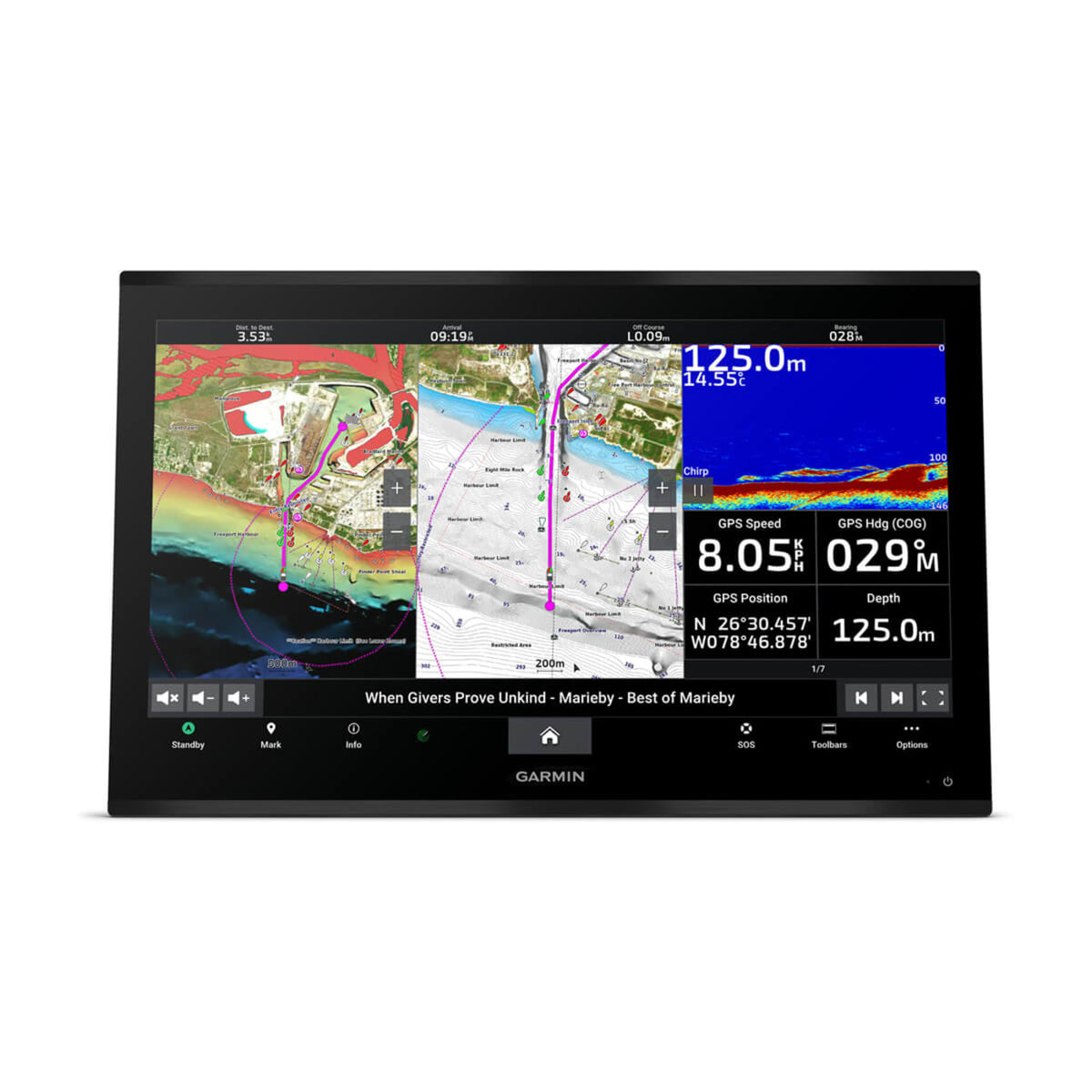

• 27" 4K IPS touchscreen – a large, sharp picture even with chart, radar and camera on screen at the same time
• Four BlueNet gigabit ports – ideal as the central display of a glass bridge

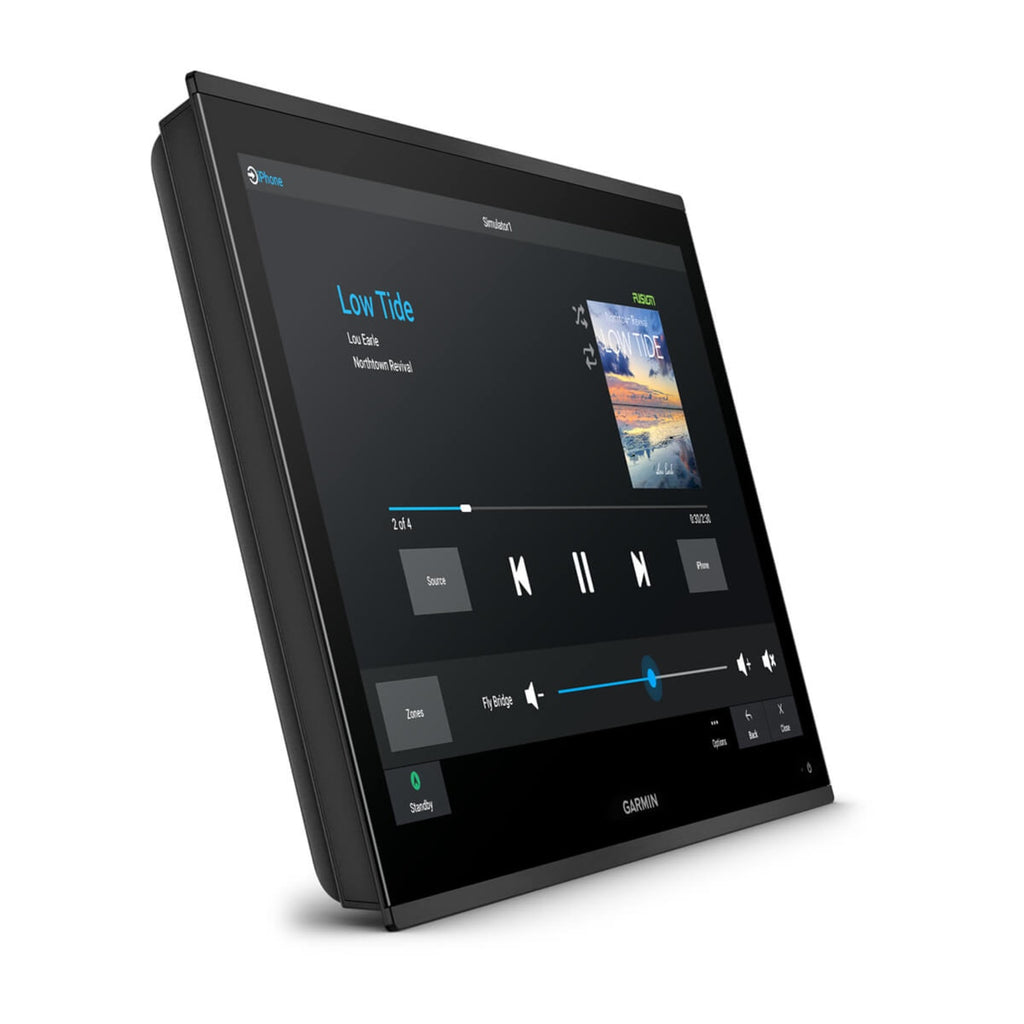

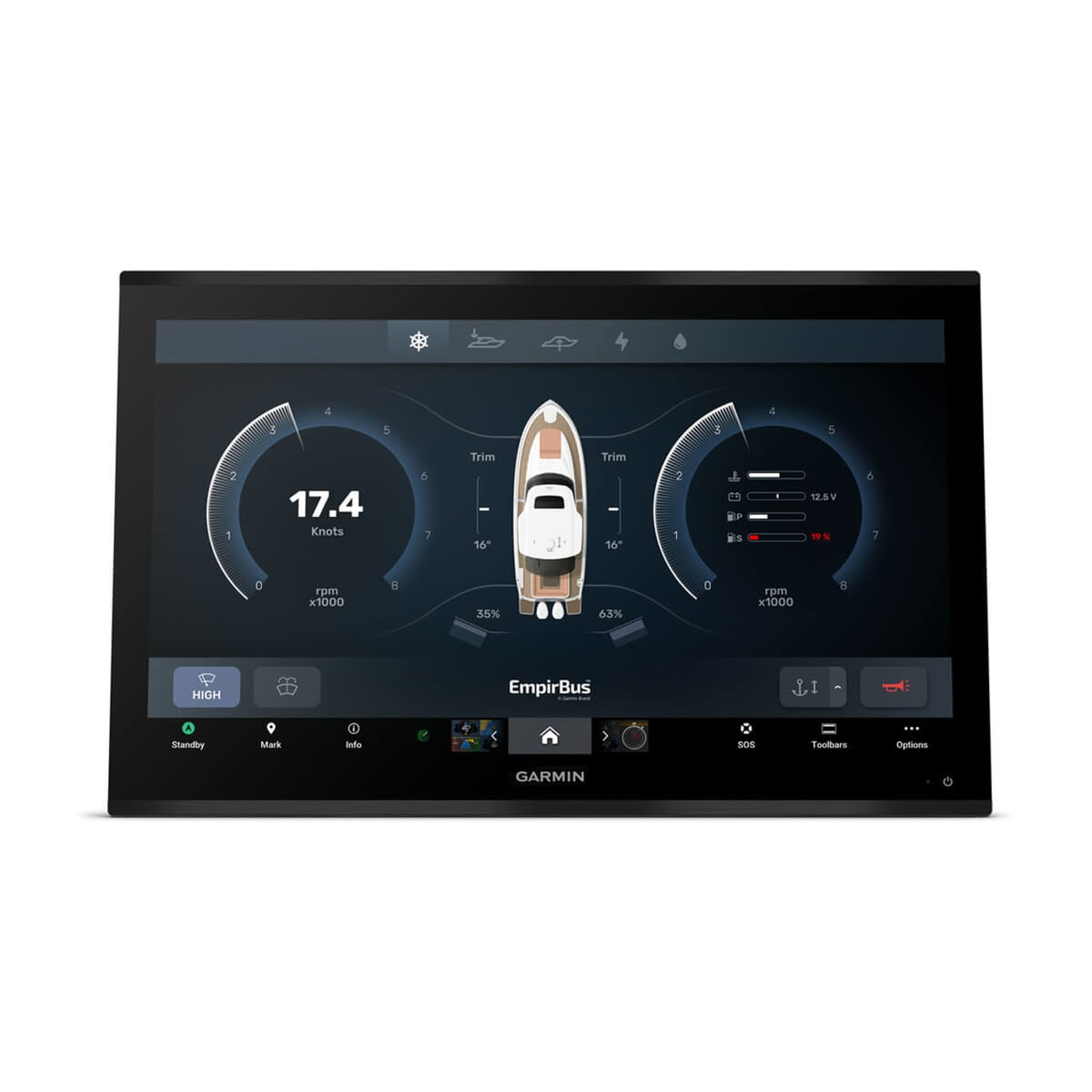

• Controls the autopilot, Fusion-Link audio and digital switching, and shows engine data (NMEA 2000, J1939)
• SmartMode and OneHelm – control third-party onboard systems from one screen
• Multi-band GNSS receiver with 10 Hz update rate
• ActiveCaptain app: updates and smartphone notifications

Sonar

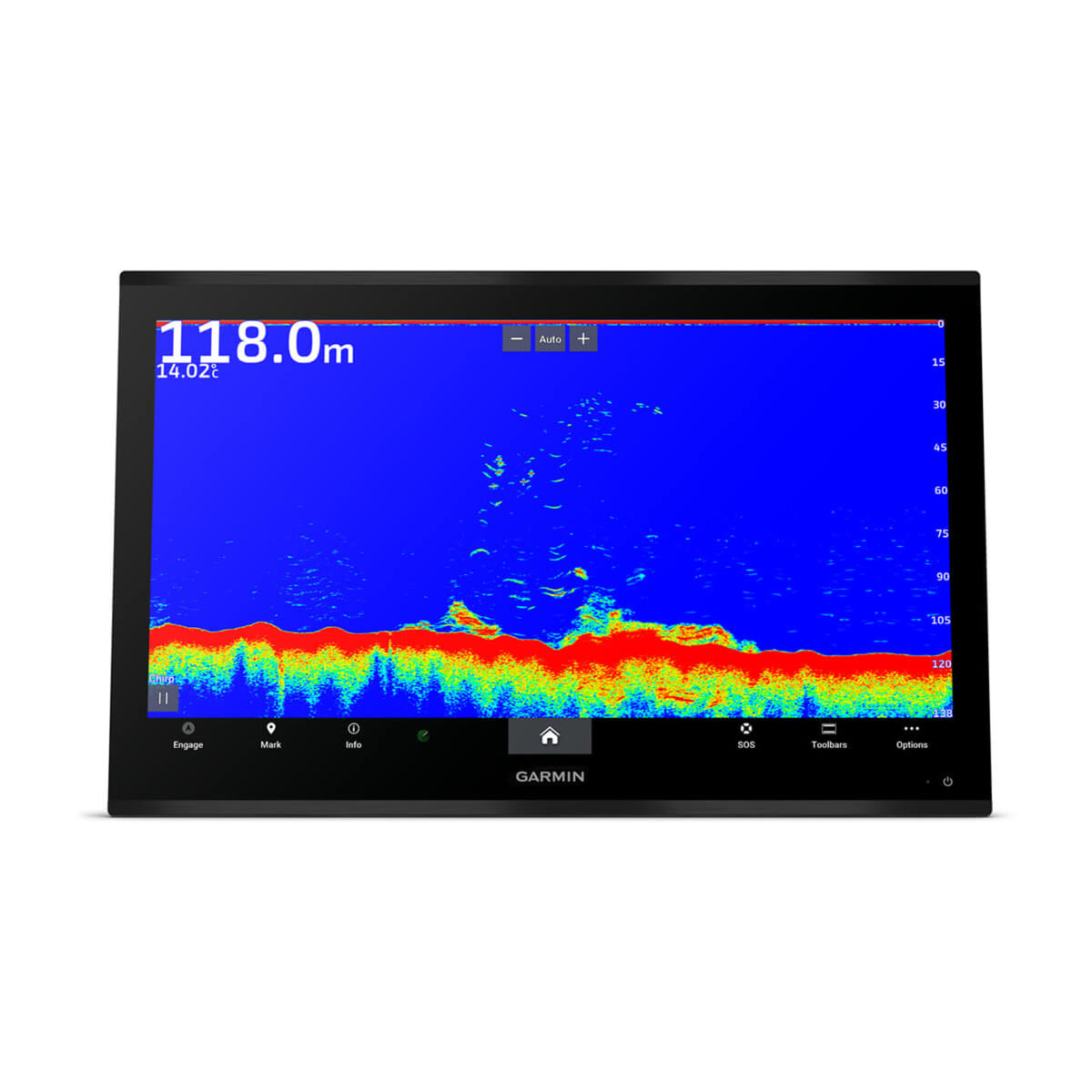

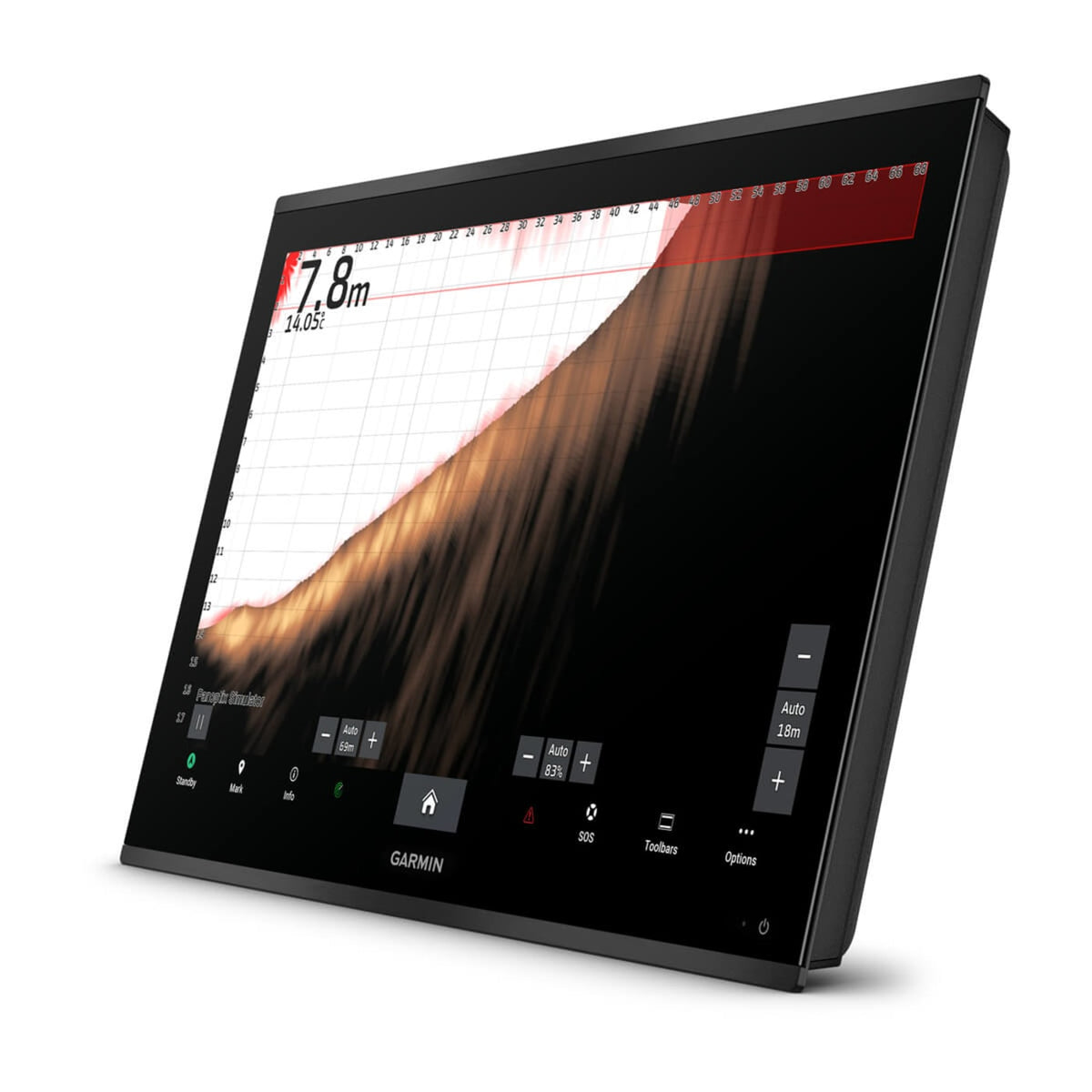

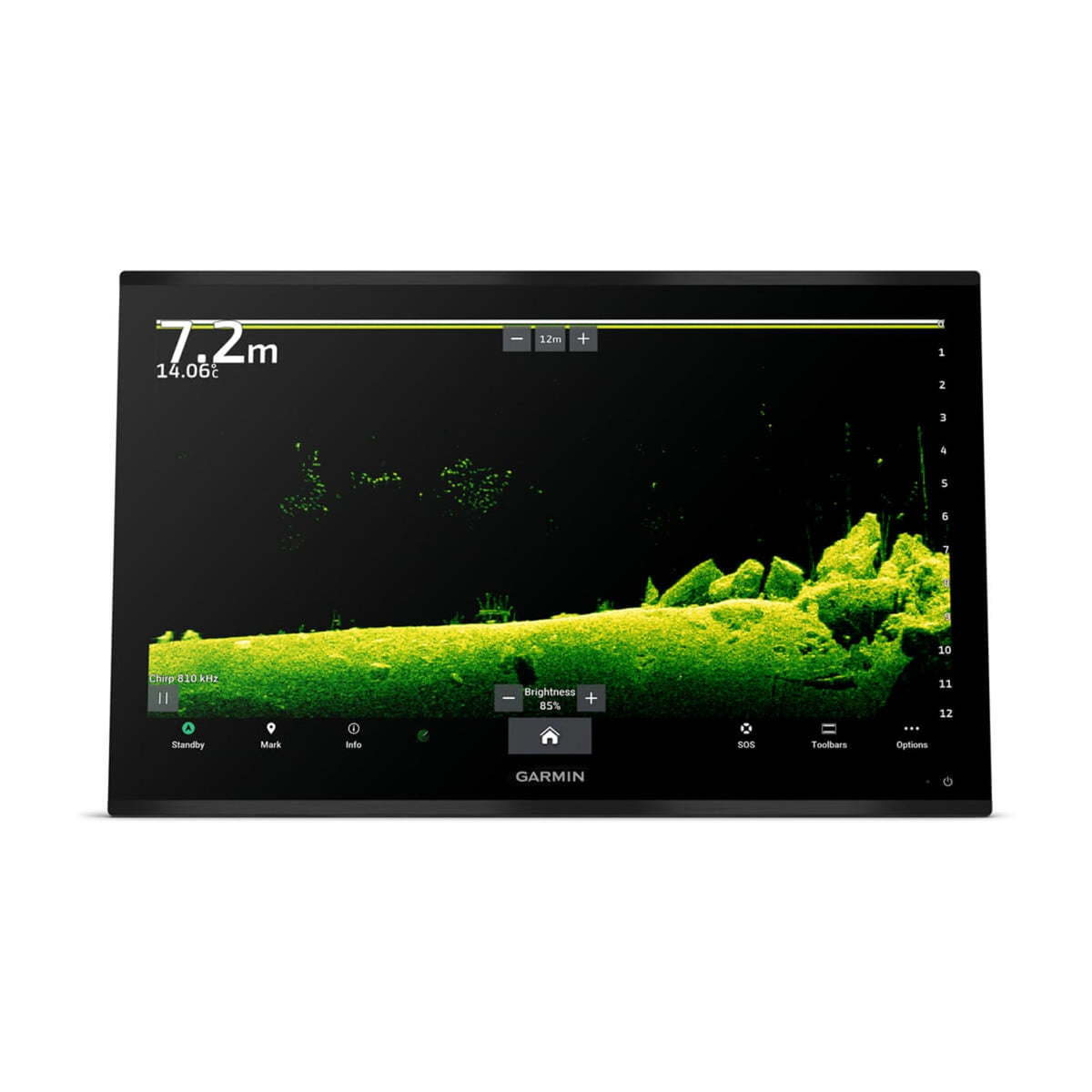

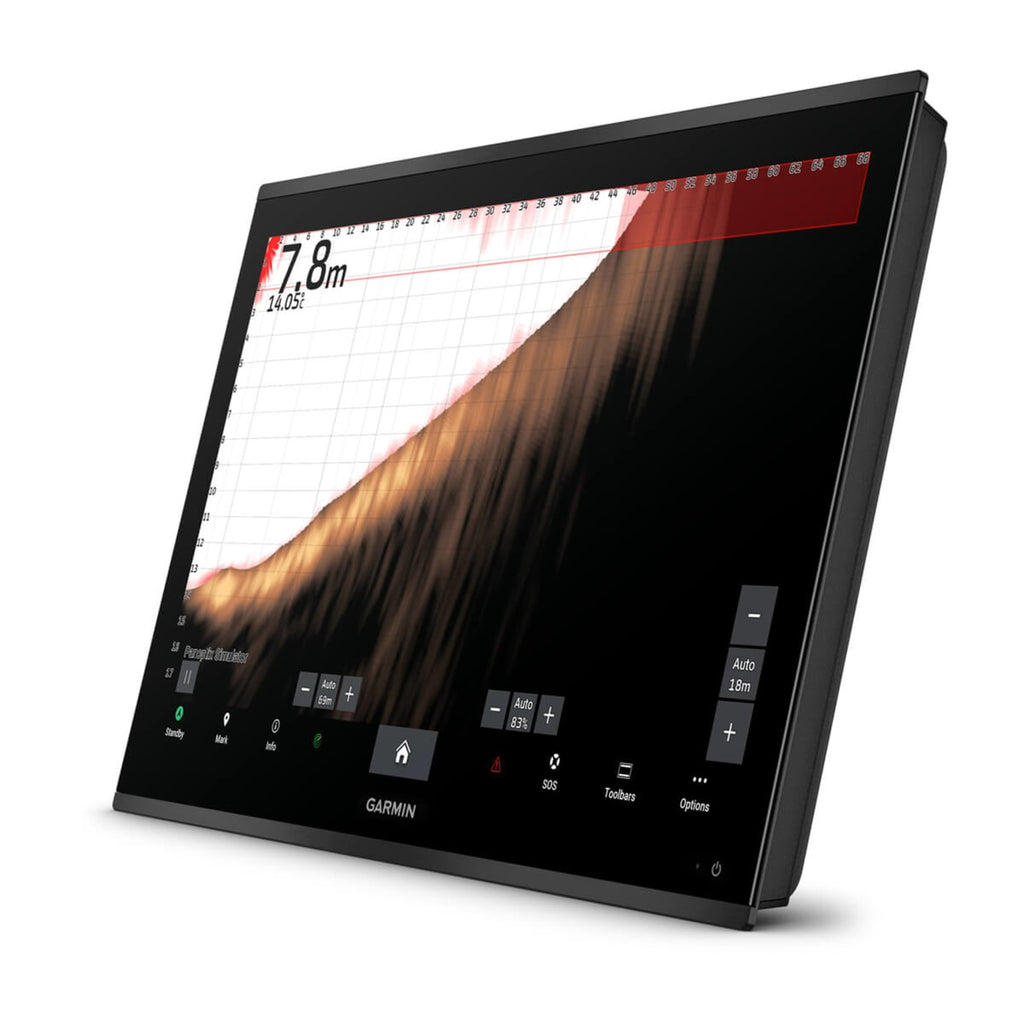

This model has no built-in sonar. You can get a sonar picture on screen with a Garmin GCV black box sonar, Panoptix or LiveScope connected to the BlueNet network – the usual solution on larger boats where several displays share one sonar.

Specifications

• Display: 27" 4K IPS, 3840 × 2160 px, touchscreen
• Mounting: flush or flat
• Dimensions: 65.5 × 42.3 × 8.5 cm
• Weight: 12.54 kg
• Water rating: IPX7
• Power: 10–32 V DC
• Current draw at 12 V: typically 7.2 A
• GNSS: GPS, GLONASS, Galileo, BeiDou, multi-band, 10 Hz
• Connections: Garmin BlueNet gigabit network, NMEA 2000, NMEA 0183, J1939 (engine data), Wi-Fi, Bluetooth, USB-C, 4 BlueNet ports
• Video: HDMI in and out

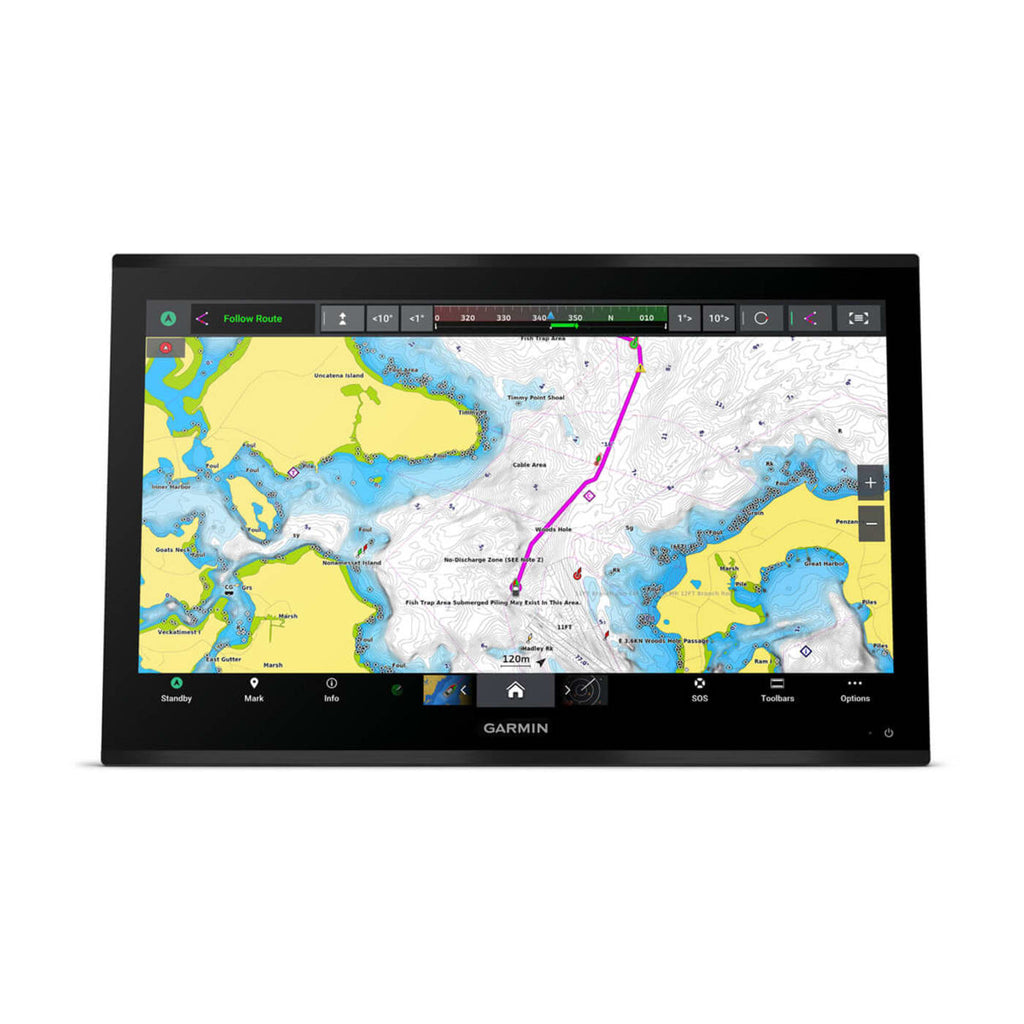

• Charts: supports Garmin Navionics+ and Navionics Vision+, BlueChart g3 and Quickdraw Contours

Who it is for

Large motor yachts and sailing yachts where the helm is built around one or more large displays. We carry out glass bridge projects including installation – ask for a quote.

Why buy from BMG Power Systems

• Official Garmin dealer. European-market unit with full Garmin manufacturer warranty.
• Certified installation. Our installers are Garmin Certified Installers – we install the unit on your boat and set it up together with the rest of your electronics. Installation: service.ee@bmgpower.eu.
• In stock in Tallinn or delivered in 7–10 days. Free pickup from our Härgmäe 5 warehouse or Haven Kakumäe.
• Advice before you buy: Argo Ristlaan, +372 5452 0042, argo.ristlaan@bmgpower.eu.
