Garmin GPSMAP 9500 Black Box – navigation processor without display

In short: The brain of the GPSMAP 9000 series without a screen. Connect the monitor(s) or touchscreen of your choice and get Garmin navigation at up to 4K resolution.

Key features

• Supports external displays up to 3840 × 2160 (4K)

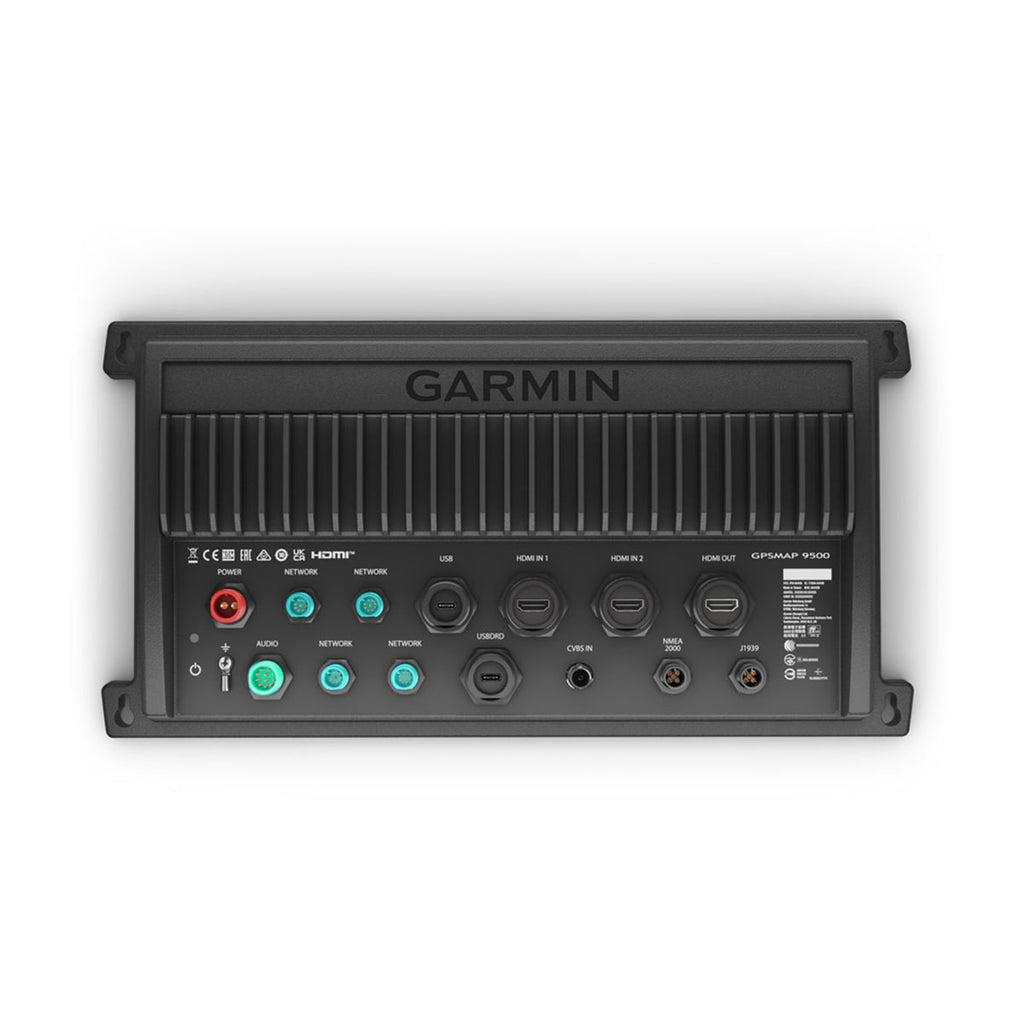

• Two HDMI inputs and one HDMI output, BNC composite input
• Four BlueNet gigabit ports, NMEA 2000, NMEA 0183, J1939
• Wi-Fi, Bluetooth, 2 × USB-C
• Supports GCV and GSD black box sonars, Panoptix and LiveScope
• GRID and wireless remote for control when the display is not a touchscreen

Specifications

• Dimensions: 38.3 × 19.8 × 4.7 cm
• Weight: 1.58 kg
• Water rating: IPX7
• Power: 10–32 V DC, typically 2 A (12 V)
• GNSS: requires an external GPS antenna (e.g. GPS 24xd)
• Charts: via USB card reader; supports Garmin Navionics+ and Navionics Vision+

Who it is for

Large yachts with marine-grade monitors built into the helm, and boatbuilders who want a Garmin system without Garmin displays. Requires an external GPS antenna.
