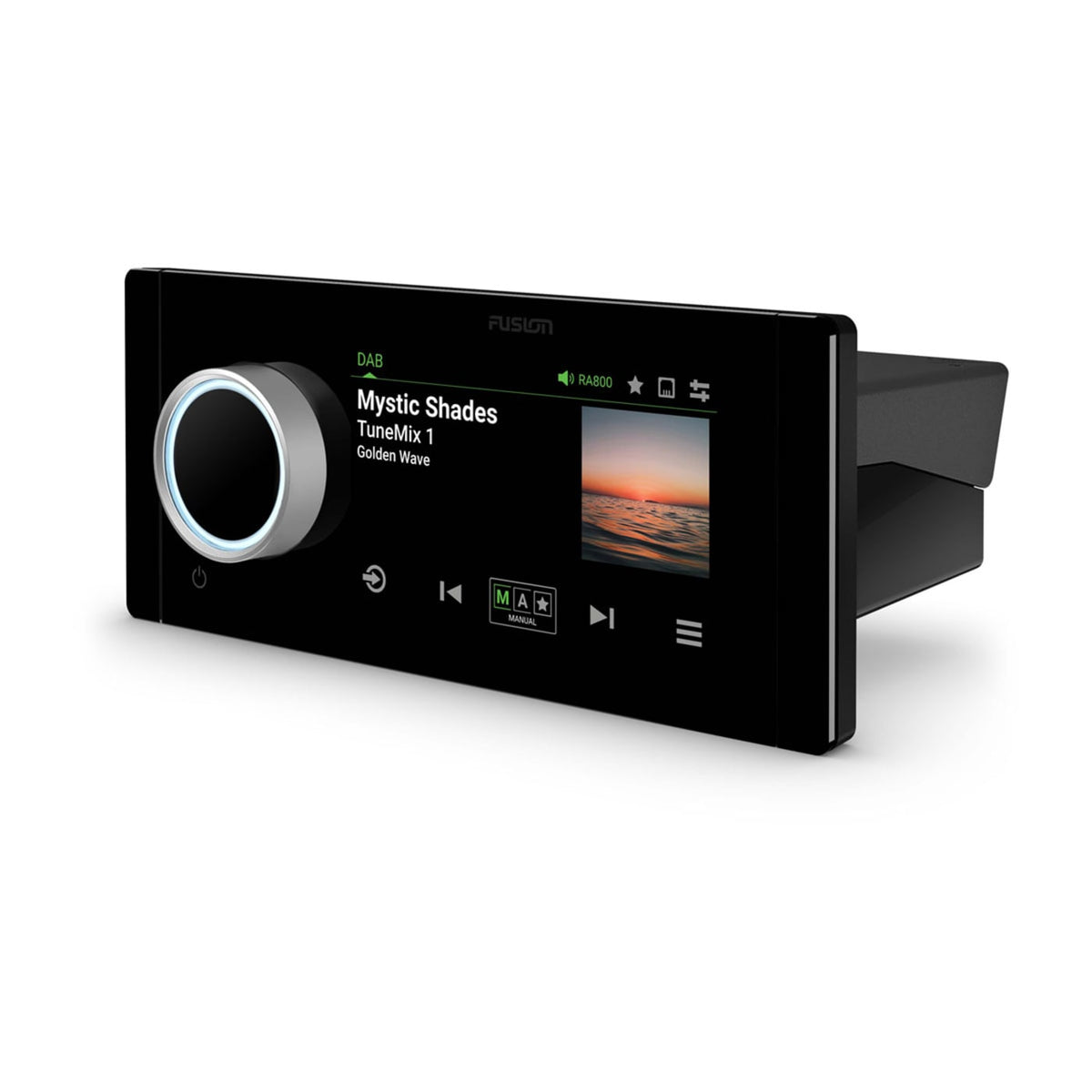

Fusion Apollo MS-RA800 – touchscreen marine stereo

In short: Fusion’s flagship: 4.3" touchscreen, Wi-Fi, Bluetooth, AirPlay 2 and HDMI ARC. Runs on both 12 V and 24 V, so it also suits larger boats without a voltage converter.

Fusion is Garmin’s core audio range – the widest selection and the most common choice on boats.

Key features

• 4.3" optically bonded touchscreen (800 × 480), easy to read in sunlight
• Built-in amplifier 4 × 40 W RMS (4 Ω)
• Power 10.8–32 V – straight into a 12 V or 24 V system
• Wi-Fi, Bluetooth 5.3, Apple AirPlay 2, HDMI ARC (TV), USB, 2 × AUX, AM/FM, DAB+ ready
• 4 audio zones, each with its own volume
• Built-in DSP – tuning with the Garmin Audio app
• Controllable from a Garmin chartplotter, phone and Garmin watch
• Front panel IPX6 and IPX7

What goes with it

• Speakers: Fusion XS (core range) or JL Audio M6 (premium) – two pairs directly from the stereo amplifier
• Subwoofer and more power: Fusion Apollo or JL Audio MVi amplifier
• Second helm: Fusion MS-NRX300 or MS-ERX400 remote; ARX wireless remote for the cockpit

For help putting together a complete system, see our guide How to build a boat audio system.

Specifications

• Dimensions: 192 × 82 × 119 mm, weight 620 g
• Max current draw: 25 A (14.4 V) / 15 A (28.8 V)
• Warranty: 3 years

Why buy from BMG Power Systems

• Official Garmin dealer. European-market unit with full Garmin manufacturer warranty.
• In stock in Tallinn or delivered in 7–10 days. Free pickup from our Härgmäe 5 warehouse or Haven Kakumäe.
• Advice before you buy: Argo Ristlaan, +372 5452 0042, argo.ristlaan@bmgpower.eu.
