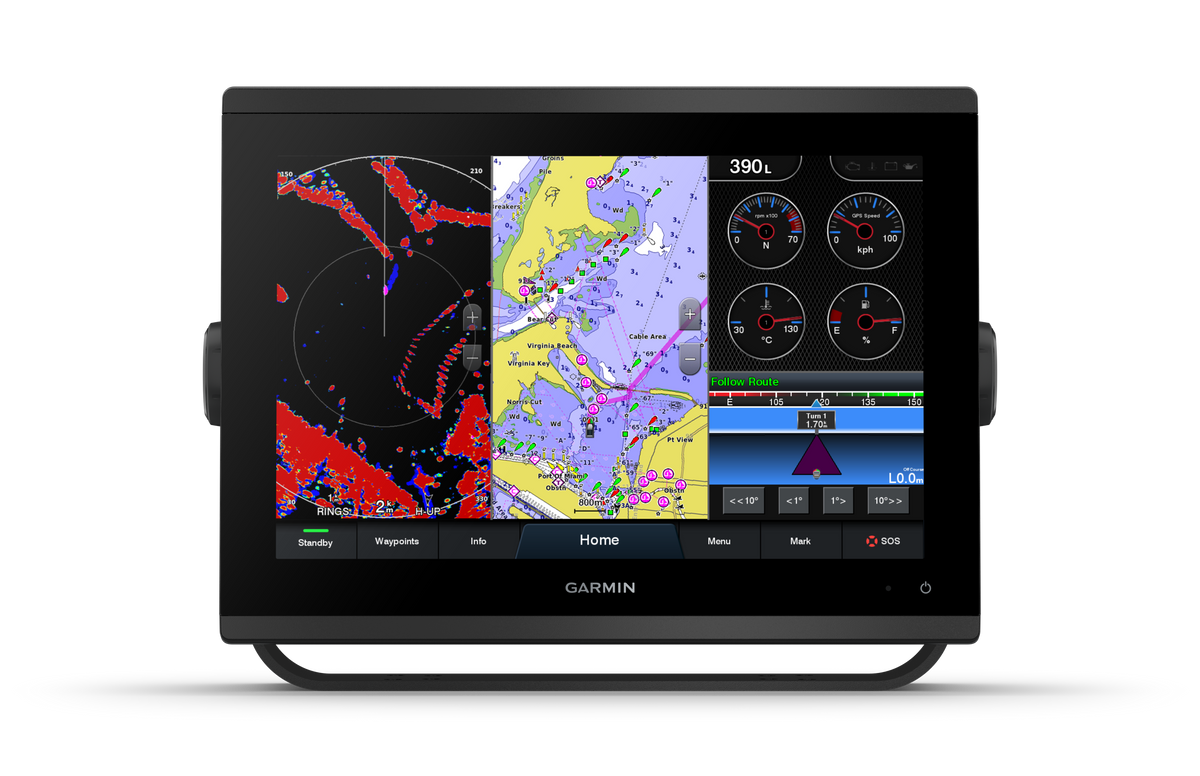

GARMIN GPSMAP 1223xsv – 12" chartplotter/fishfinder with UHD sonar

The Garmin GPSMAP 1223xsv is a powerful 12-inch chartplotter/fishfinder that combines high-resolution sonar, a clear IPS display and full Garmin Marine Network compatibility. It is ideal for medium and large yachts, motorboats and skippers who need a professional, reliable navigation and sonar display.

With built-in Ultra High-Definition sonar, a fast processor and advanced connectivity, the GPSMAP 1223xsv gives an excellent overview for both navigation and fishing, and is ready to integrate with radars, autopilots, VHF/AIS units and engine sensors.

Main features

12" IPS touchscreen

A bright, high-resolution display with excellent sunlight readability and wide viewing angles.

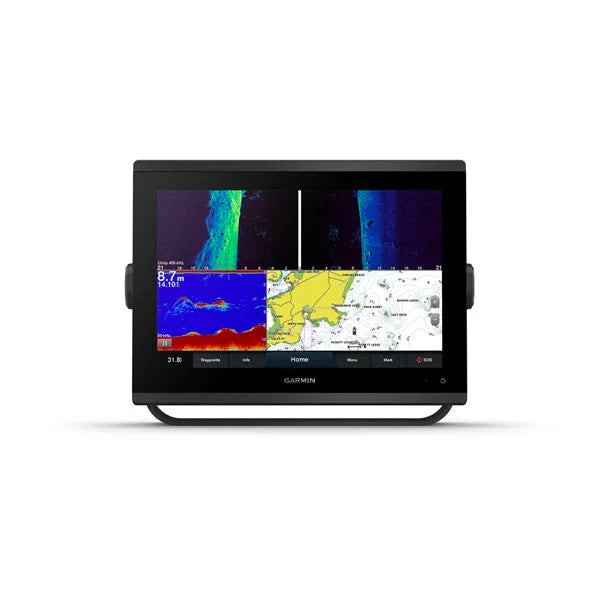

Built-in Ultra High-Definition sonar

• UHD SideVü – very detailed side-scanning sonar
• UHD ClearVü – sharp down view of the bottom and structure
• 1 kW CHIRP traditional sonar (requires a suitable transducer)

Vivid colour palettes make fish, bottom detail and structure easy to tell apart.

Panoptix and LiveScope ready

Connect Panoptix or LiveScope live sonar (sold separately) to see fish moving around your boat in real time.

Garmin Navionics+ chart support

Includes a worldwide basemap and supports Garmin Navionics+ and Vision+ charts with relief shading, satellite imagery and sonar charts.

Fast processor

Charts, layers, menus and sonar images open and update smoothly, even in busy and complex navigation situations.

Full network compatibility

• Garmin Marine Network
• NMEA 2000®
• OneHelm™ digital switching
• Radar, autopilot and VHF/AIS support
• Engine data and system integration
• Force® trolling motor and Power-Pole® anchor integration

Modern design, easy installation

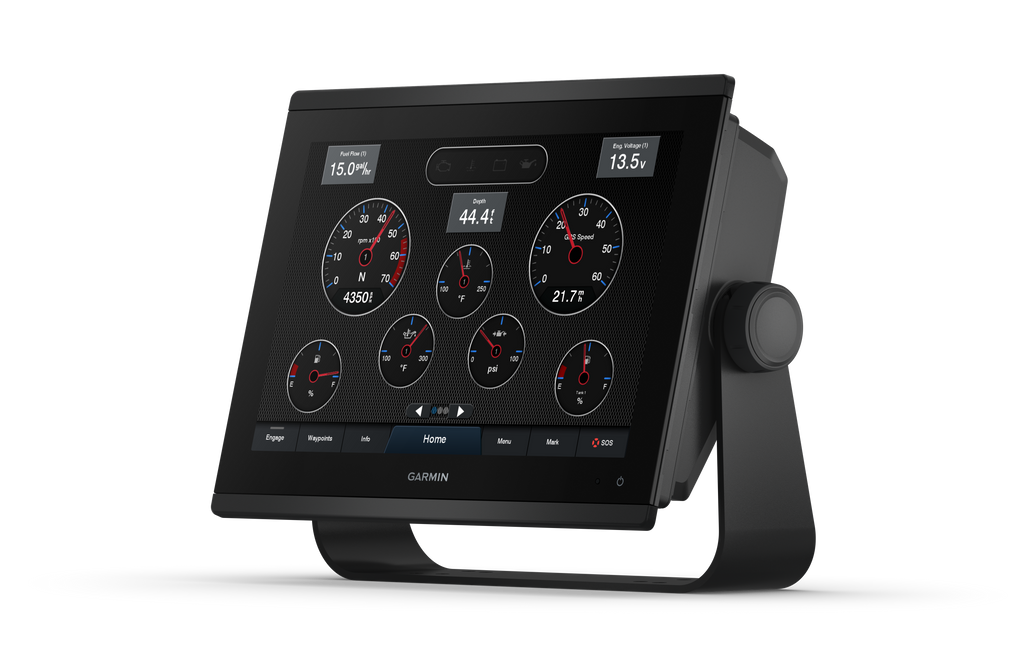

Slim housing, edge-to-edge glass and a choice of flush or bail mounting.

Specifications

• Display: 12" IPS touchscreen
• Water rating: IPX7
• Power: 10–32 V DC
• Sonar support: UHD SideVü, UHD ClearVü, CHIRP up to 1 kW, Panoptix, LiveScope
• Networks: Garmin Marine Network, NMEA 2000®, Wi-Fi, ANT
• Charts: Garmin Navionics+, Vision+
• Mounting: flush or bail

In the box

• GPSMAP 1223xsv unit
• Power cable
• Mounting frame and hardware
• Sun cover
• Documentation

Ideal for

• Medium and large yachts as the main chartplotter
• Serious anglers who need UHD sonar
• Navigation systems integrated with radar
• Long passages and demanding routes
• Multi-display helm stations
