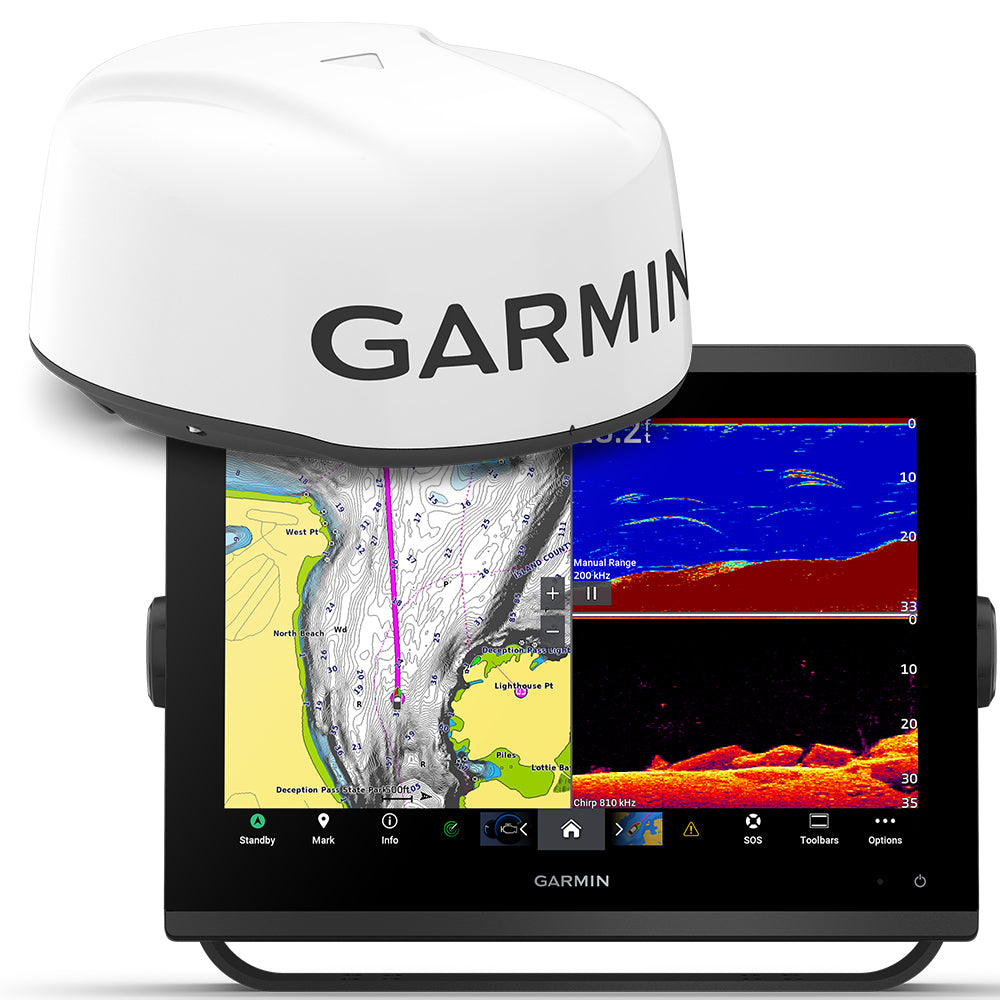

Garmin GPSMAP® 1223xsv with GMR™ 18 HD3 radar

Garmin GPSMAP® 1223xsv with GMR™ 18 HD3 radar

The GPSMAP® 1223xsv is a top-level combination of a 12-inch touchscreen chartplotter and sonar, now bundled with the 4 kW GMR™ 18 HD3 radar. This package gives you comprehensive control of your onboard systems and a complete picture for navigation.

Main features

• 12″ WSVGA IPS touchscreen – vivid colours and a very sharp picture for good readability in all light.
• Powerful sonar – includes traditional CHIRP, CHIRP ClearVü and SideVü; also supports Panoptix™ and LiveScope™ transducers.
• GMR™ 18 HD3 radome – high-resolution 4 kW radar for reliable target detection in all weather.
• Worldwide basemap – preloaded global map so you can start navigating straight away.
• SmartMode™ – switch between sonar, radar or chart view with one touch.
• Quickdraw™ Contours – create personal HD depth maps with 1 ft contours.
• Full network connectivity – Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, Bluetooth and ANT.
• Waterproof design (IPX7) – reliable in harsh conditions.

Specifications

• Display: 12″ WSVGA IPS (1280 × 800 px)
• Dimensions: approx. 30.8 × 22.8 × 8.2 cm
• Weight: approx. 3.0 kg
• Power: 10–32 V DC, typical draw approx. 1.7 A
• GNSS update: 10 Hz GPS / GLONASS
• Sonar: CHIRP, ClearVü, SideVü, Panoptix™, UHD
• Radar: GMR 18 HD3 (4 kW, compact radome)
• Connectivity: Ethernet, NMEA, SD slots, Wi-Fi, Bluetooth, ANT
• Water rating: IPX7
