GARMIN GPSMAP 1523xsv – 15" widescreen chartplotter/fishfinder with UHD sonar

The Garmin GPSMAP 1523xsv is a powerful 15-inch widescreen chartplotter/fishfinder offering professional navigation and high-resolution sonar in a large, clear screen format. It is ideal for skippers who want maximum visibility, smooth operation and full integration with Garmin Marine systems on yachts, motorboats and workboats.

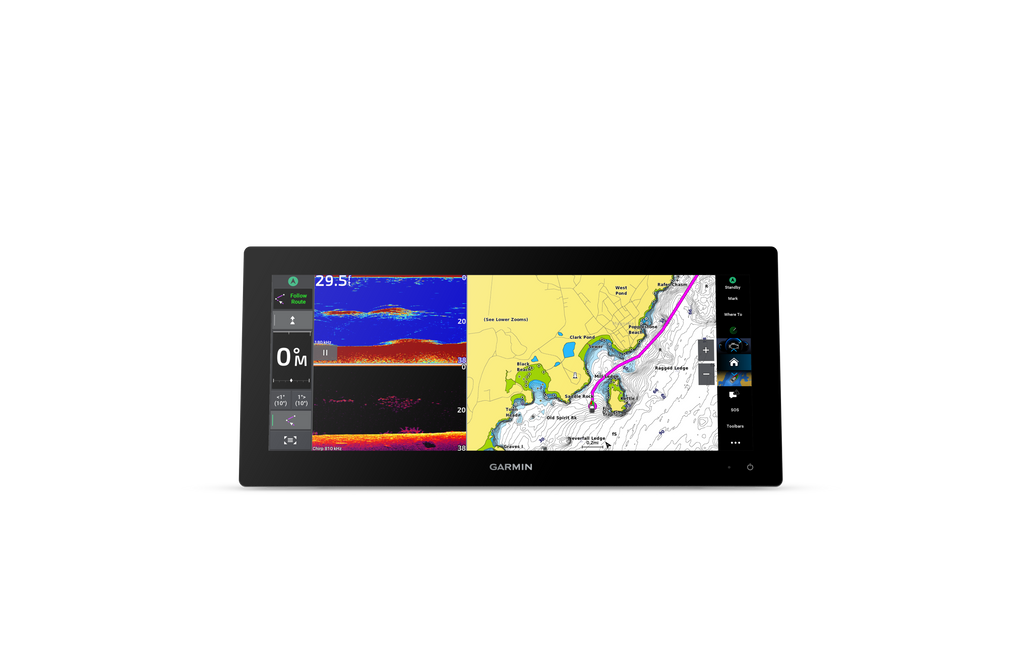

With the large IPS display, fast processor and built-in Ultra High-Definition sonar, the GPSMAP 1523xsv lets you watch charts, sonar and onboard systems at the same time in great detail.

Main features

Large 15" high-resolution IPS touchscreen

Exceptionally clear picture, wide viewing angles and excellent sunlight readability. The large screen is ideal for multiple windows and a professional helm.

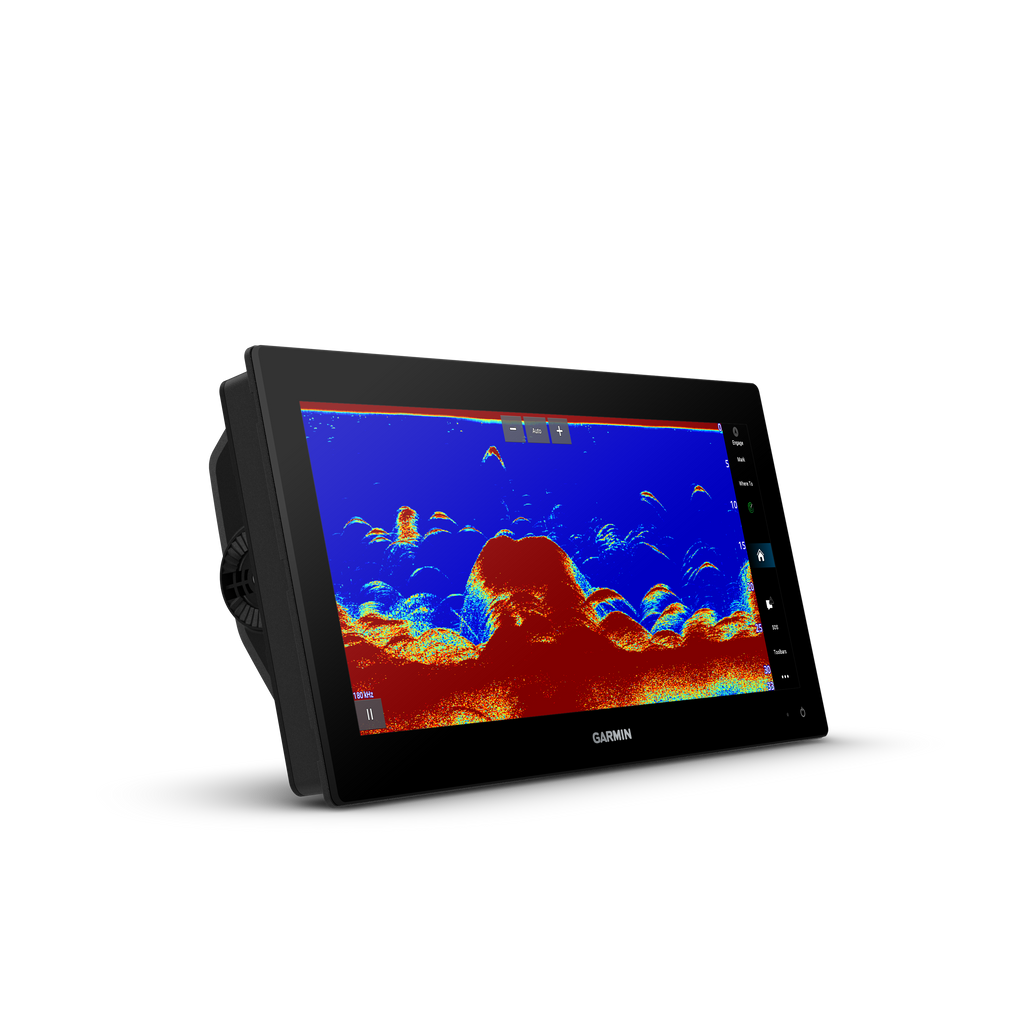

Built-in Ultra High-Definition sonar

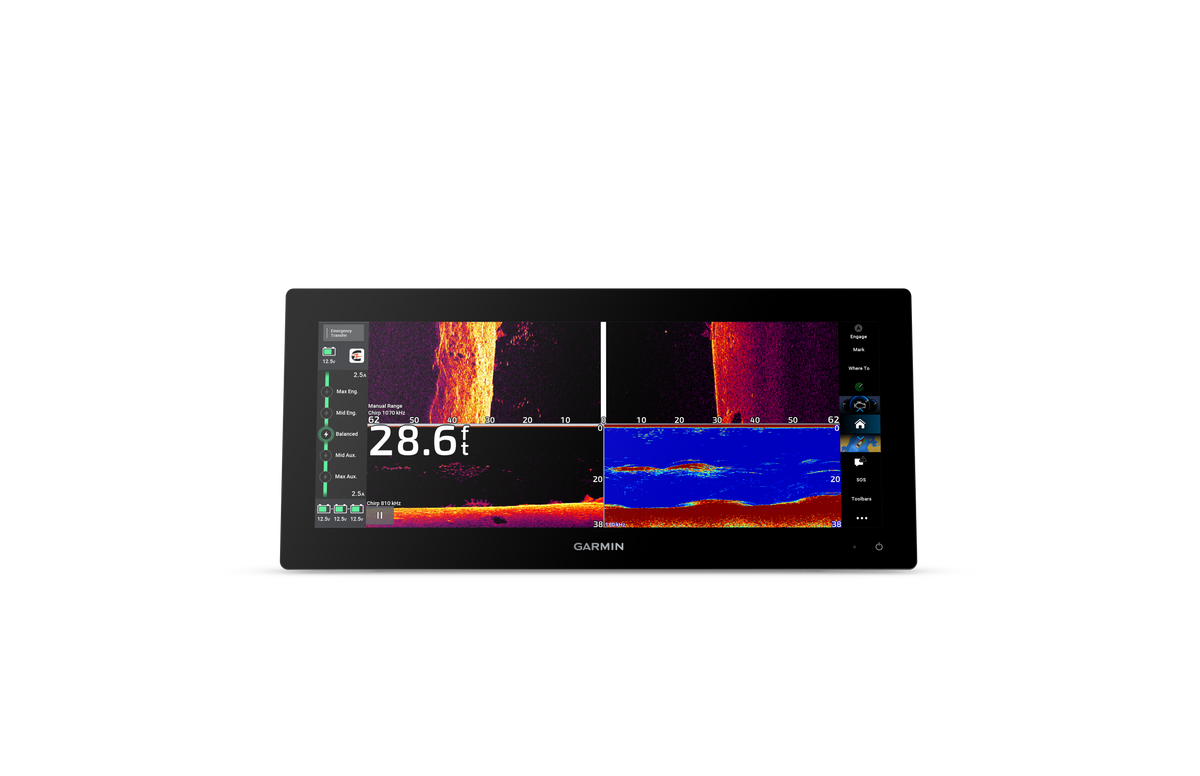

• UHD SideVü – detailed side-scanning sonar
• UHD ClearVü – very sharp down view of bottom structure
• Traditional CHIRP sonar up to 1 kW (requires a suitable transducer)

Vivid colour palettes make fish, structure and bottom detail easy to distinguish even in deeper water.

Panoptix and LiveScope ready

Supports Garmin Panoptix and LiveScope live sonar so you can see fish and objects moving around the boat without delay.

Garmin Navionics+ chart support

Works with a worldwide basemap and supports Garmin Navionics+ and Vision+ charts, including relief shading, satellite imagery and detailed depth data.

Powerful processor and fast interface

Smooth chart drawing, fast sonar refresh and trouble-free operation even on data-heavy networks.

Full system integration

• Garmin Marine Network
• NMEA 2000®
• Radar support (HD3, Fantom)
• Autopilots
• VHF and AIS
• Engine data
• OneHelm™ digital switching
• Force® trolling motor and Power-Pole® anchor control

Flexible, professional installation

Slim housing and edge-to-edge glass allow flush or surface mounting in a modern helm.

Specifications

• Display: 15" IPS touchscreen
• Water rating: IPX7
• Power: 10–32 V DC
• Sonar support: UHD SideVü, UHD ClearVü, CHIRP up to 1 kW, Panoptix, LiveScope
• Networks: Garmin Marine Network, NMEA 2000®, Wi-Fi, ANT
• Charts: Garmin Navionics+, Vision+
• Mounting: flush or surface

In the box

• GPSMAP 1523xsv unit
• Power cable
• Mounting frame and hardware
• Sun cover
• Documentation

(Note: depending on the package, a sonar transducer may or may not be included.)

Ideal for

• Main chartplotter on larger yachts and motorboats
• Professional fishing and precise sonar
• Navigation systems integrated with radar
• Multi-display helms
• Demanding sea and working conditions
