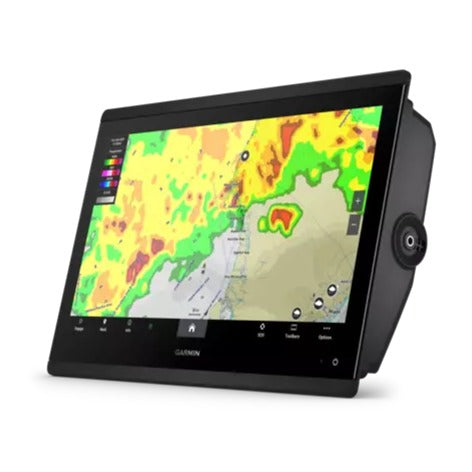

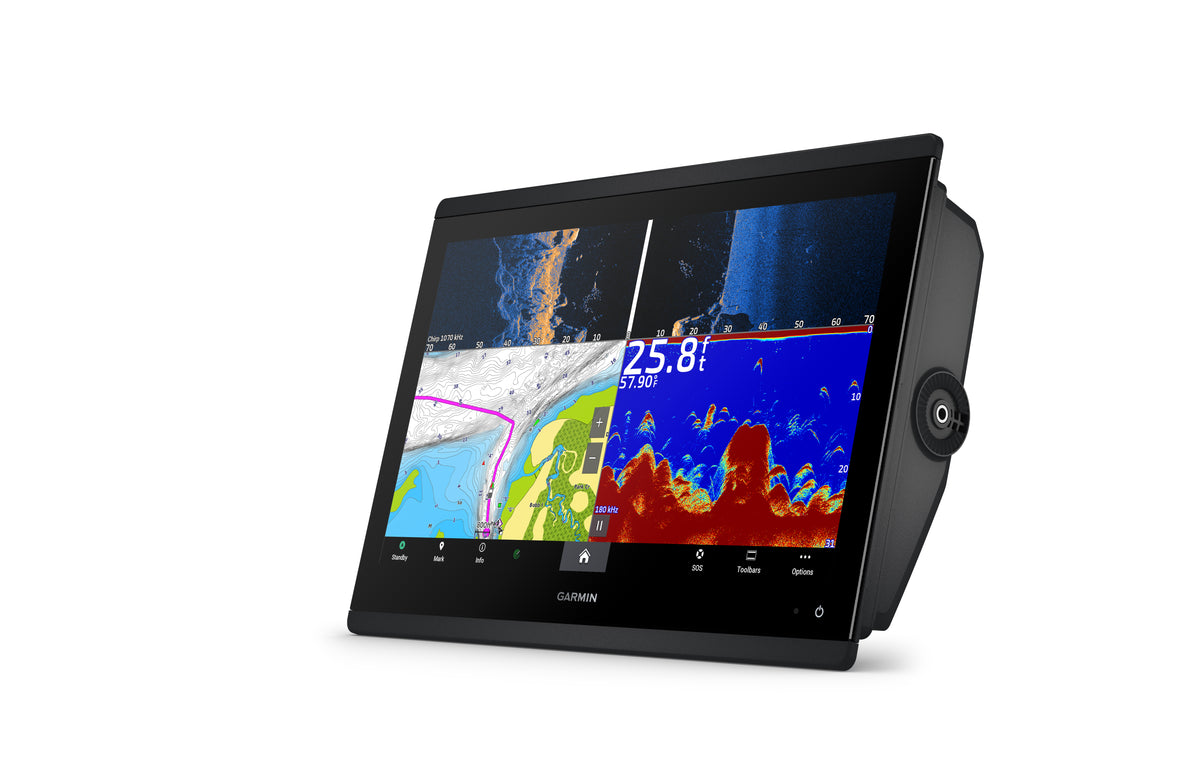

GARMIN GPSMAP 1623xsv – 16" chartplotter/fishfinder with Ultra High-Definition sonar

The Garmin GPSMAP 1623xsv is a professional 16-inch chartplotter/fishfinder offering top-class navigation, ultra-sharp sonar and powerful processing in every situation. It is built for anglers, sailors and skippers who need a large, fast and accurate radar, sonar and navigation picture.

The IPS display gives exceptional sunlight readability and 50% more pixels than previous Garmin generations. It integrates with Garmin Marine systems and works perfectly with radars, autopilots, engine systems and Panoptix/LiveScope sonar.

Main features

16" IPS touchscreen

A bright, high-resolution display with excellent sunlight readability and wide viewing angles.

Built-in Ultra High-Definition sonar

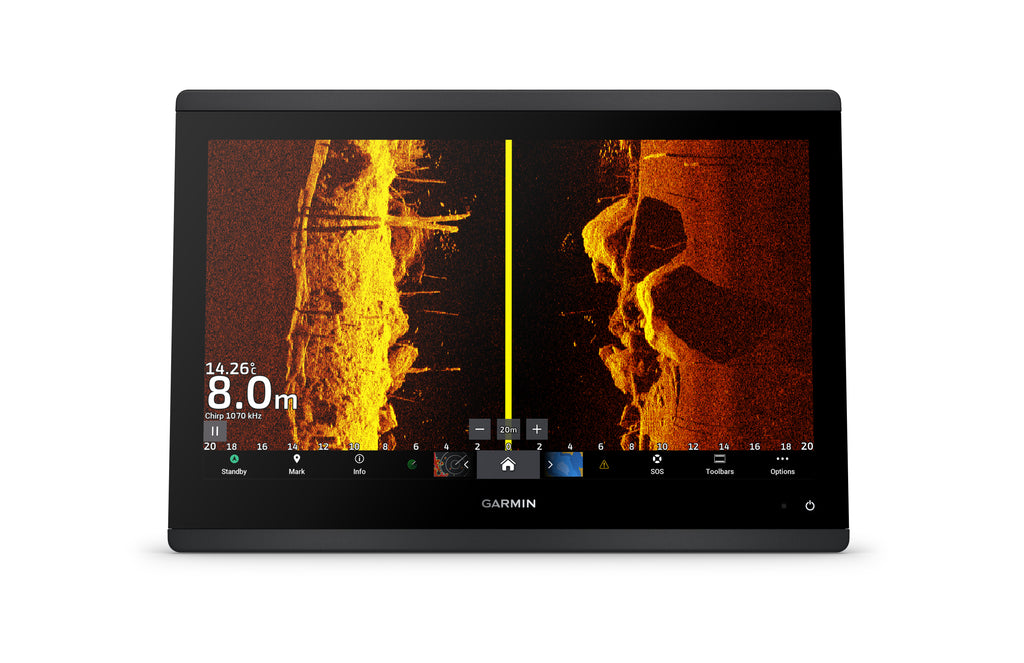

• UHD SideVü – very detailed side-scanning sonar
• UHD ClearVü – sharp down view of the bottom and structure
• 1 kW CHIRP traditional sonar (requires a suitable transducer)

Vivid colour palettes make fish, bottom detail and structure easy to tell apart.

Panoptix and LiveScope ready

Connect Panoptix or LiveScope live sonar (sold separately) to see fish moving around your boat in real time.

Garmin Navionics+ chart support

Includes a worldwide basemap and supports Garmin Navionics+ and Vision+ charts with relief shading, satellite imagery and sonar charts.

Fast processor

Charts, layers, menus and sonar images open and update smoothly, even in busy and complex navigation situations.

Full network compatibility

• Garmin Marine Network
• NMEA 2000®
• OneHelm™ digital switching

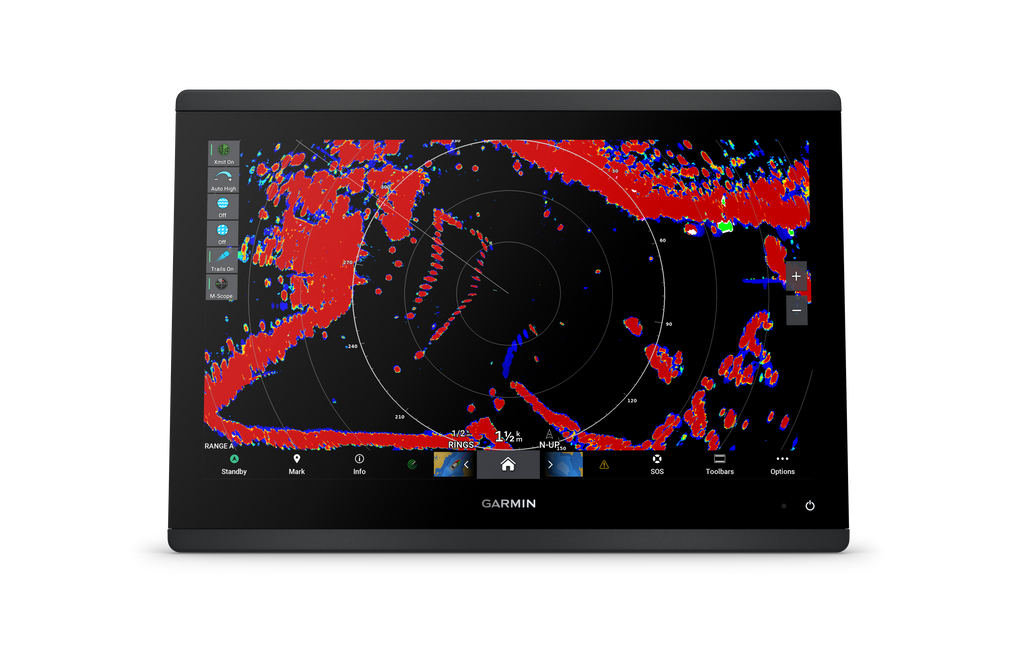

• Radar, autopilot and VHF/AIS support
• Engine data and system integration
• Force® trolling motor and Power-Pole® anchor integration

Modern design, easy installation

Slim housing, edge-to-edge glass and a choice of flush or bail mounting.

Specifications

• Display: 16" IPS touchscreen
• Water rating: IPX7
• Power: 10–32 V DC
• Sonar support: UHD SideVü, UHD ClearVü, CHIRP up to 1 kW, Panoptix, LiveScope
• Networks: Garmin Marine Network, NMEA 2000®, Wi-Fi, ANT
• Charts: Garmin Navionics+, Vision+
• Mounting: flush or bail

In the box

• GPSMAP 1623xsv unit
• Power cable
• Mounting frame and hardware
• Sun cover
• Documentation

Ideal for

• Professional anglers
• Larger yachts, motorboats and workboats
• Integration with radar
• Fishing with live sonar
• Multi-display helm stations
