Garmin GPSMAP® 8410xsv – 10" chartplotter/fishfinder

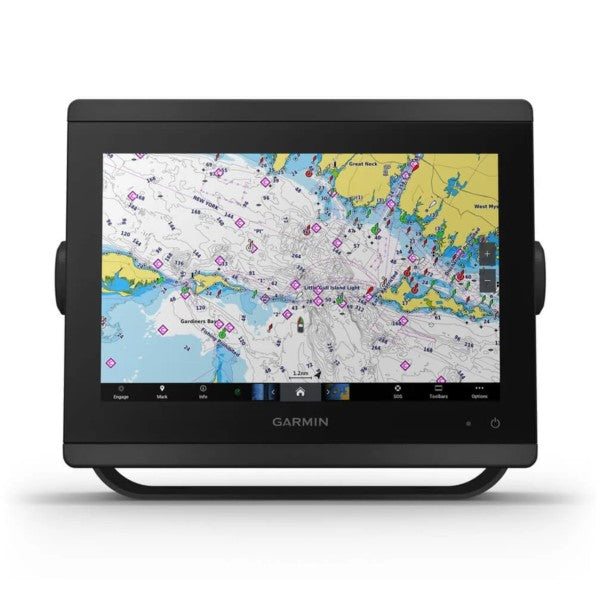

Garmin GPSMAP® 8410xsv – 10″ touchscreen chartplotter and sonar

The Garmin GPSMAP® 8410xsv is a top-class multifunction navigation display combining a Full HD touchscreen, powerful sonar and full network connectivity. Suitable for serious navigation, fishing and controlling integrated onboard systems.

Key features

• 10″ Full HD IPS touchscreen – excellent readability in all light and wide viewing angles.
• Built-in sonar – 1 kW CHIRP, CHIRP ClearVü and SideVü; also supports Panoptix™ and Ultra High-Definition transducers (sold separately).
• Full connectivity – Garmin Marine Network, NMEA 2000 and NMEA 0183, Wi-Fi, Bluetooth and ANT.
• SmartMode™ – quickly switch between screen layouts (e.g. radar, sonar, charts).
• Quickdraw™ Contours – personal HD maps with 1 ft depth contours, up to 2 million acres.
• Rugged, waterproof housing (IPX7) – for use in all conditions.

Specifications

• Display: 10" Full HD (1920 × 1200 px)
• Dimensions: approx. 25.9 × 20.5 × 7.5 cm
• Weight: approx. 2.4 kg
• Power: 10–32 V DC, typical draw approx. 1.9 A
• Water rating: IPX7
• Sonar support: traditional CHIRP, ClearVü, SideVü
• GNSS: GPS / GLONASS (10 Hz update)
• Connections: Ethernet, HDMI, BNC, SD card slots, Wi-Fi, Bluetooth, ANT
