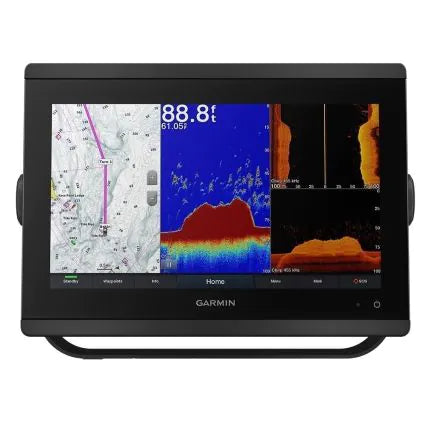

Garmin GPSMAP® 8412xsv – 12" chartplotter/fishfinder

Garmin GPSMAP® 8412xsv – 12″ touchscreen chartplotter and sonar

The Garmin GPSMAP® 8412xsv is a professional multifunction navigation display that combines a large, sharp touchscreen, powerful sonar and extensive network connectivity. The ideal solution if you want full control of all onboard systems from one screen.

Key features

• 12″ Full HD IPS touchscreen – high resolution and excellent visibility in any light.
• Built-in sonar – supports 1 kW CHIRP, CHIRP ClearVü and CHIRP SideVü. Compatible with Panoptix™ and UHD transducers (sold separately).
• Full network connectivity – Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, Bluetooth and ANT.
• SmartMode™ – quick, easy switching between screen layouts (e.g. sonar, radar, charts).
• Quickdraw™ Contours – create and save your own depth maps with 1 ft contours.
• Waterproof design (IPX7) – works in harsh conditions.

Specifications

• Display: 12″ Full HD IPS (1920 × 1200 px)
• Dimensions: approx. 30.9 × 22.6 × 7.6 cm
• Weight: approx. 2.8 kg
• Power: 10–32 V DC, typical draw approx. 1.9 A
• Sonar support: CHIRP, ClearVü, SideVü, Panoptix™, UHD
• GNSS: GPS / GLONASS, 10 Hz update
• Connections: Ethernet, HDMI, SD card slots, NMEA 2000/0183, Wi-Fi, Bluetooth, ANT
• Water rating: IPX7
• Mounting: flush, bail or frame
