Description

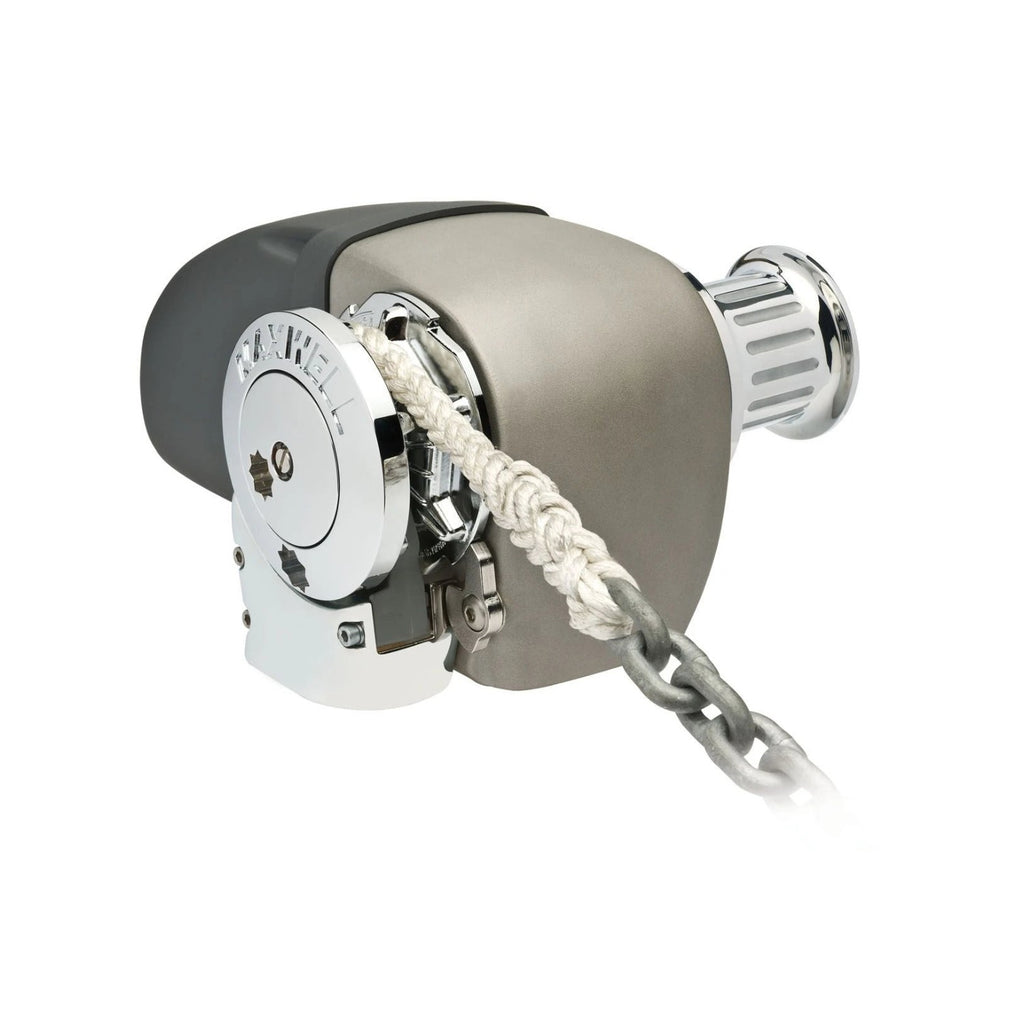

This fully automatic rope/chain anchor windlass meets the demands for use on vessels up to 16 metres, which requires an above deck installation system.
The HRC10 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope/chain anchor winches. The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 8 mm (5/16”) and 10 mm (3/8”) short link chain and 14 mm (9/16”) and 16 mm (5/8”) three strand or 8-brait (plait) rope.
Technical data
| Manufacturer | Maxwell |
| Article number | P100240 |
| Motor (W) | 1000 |
| Voltage (V) | 12 |
| Vertical/Horizontal | Horizontal |
| Rope/chain | Rope/chain |
| Weight (kg) | 19 |
| Maximum pull/lift (kg) | 700 |
| Chain short link (mm) | 8 |
| Chain (mm) | 8 |
| Rope (mm) | 14-16 |
Need help choosing the right solution or with installation? Write to us – we are happy to help.
