Description

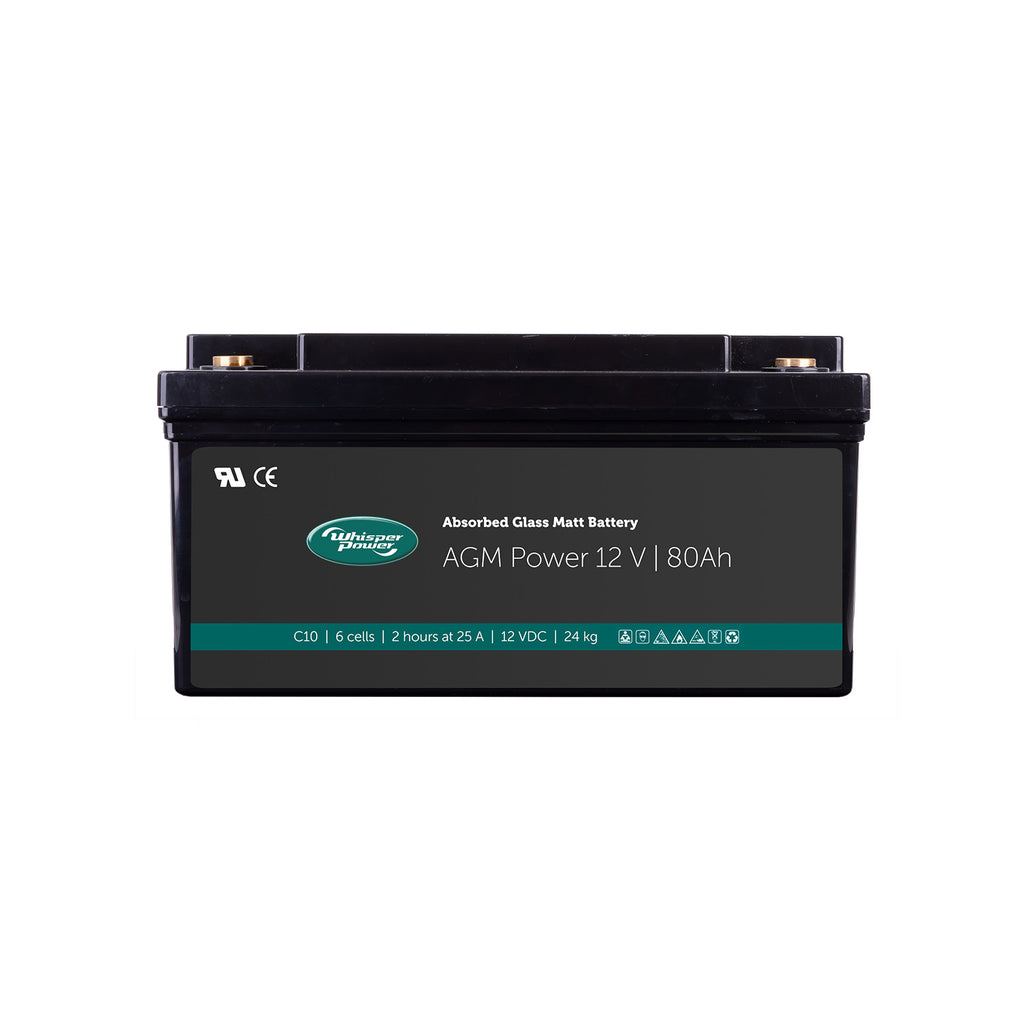

The WhisperPower AGM Battery 12 V – 80 Ah is the most economical, maintenance-free battery designed for long life. WhisperPower 12 V – 80 Ah AGM batteries are based on VRLA technology (Valve Regulated Lead Acid), meaning they require little ventilation, do not have to be positioned upright and do not require any maintenance.
Technical data
| Manufacturer | WhisperPower |
| Article number | 40290061 |
| Length x width x height | 350 x 167 x 180 mm (13.8" x 6.6" x 7.1" inch) |
| Weight ± 10% | 24.0 kg (52.9 lb.) |
| Nominal capacity | 80 Ah |
| C10* or C20 | C10 |
| Nominal voltage | 12,0 VDC |
| Terminal type | M6 rvs |
| Number of cells | 6 |
| Charge / discharge parameters | |
| Constant charge voltage (IU, float) | 13.60 .. 13.80 VDC at 25oC |
| Cyclic charge voltage (IUU, absorption) | 14.25 .. 14.60 VDC at 25oC |
| Maximum recommended charge current (higher possible) | 40 to 50% of nominal capacity |
| Temperature ratio | -4mv/cel/°C |
| Discharge voltage | 1.75 VDC @ (A) ≤ 0.2°C • 1.70 VDC @ 0.2°C (A) ≤ 1.0°C |
| Full discharge (100% DOD) | 1.65 VDC @ (A) ≥ 1.0°C |

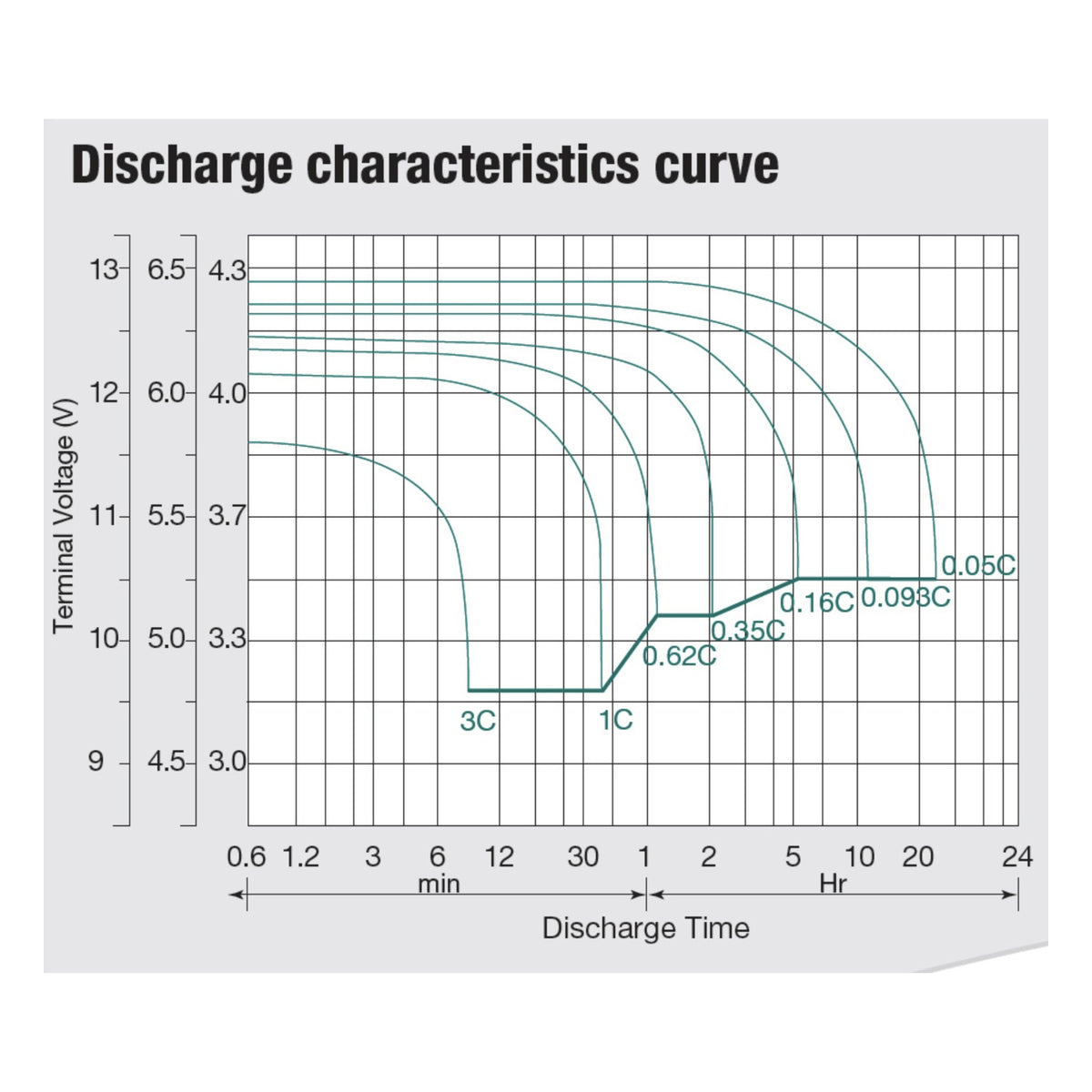

| Nominal capacity at 25°c | |
| Nominal 25°C | UP TO 1.75 VDC/CEL |
| 20 hours discharge | 85.3Ah |
| 10 hours discharge | 80.0 Ah |
| 5 hours discharge | 65.0 Ah |
| Peukeurt Coefficient | 1.21<P<1.24 |
| Usage at 25 A discharge | 146 min |

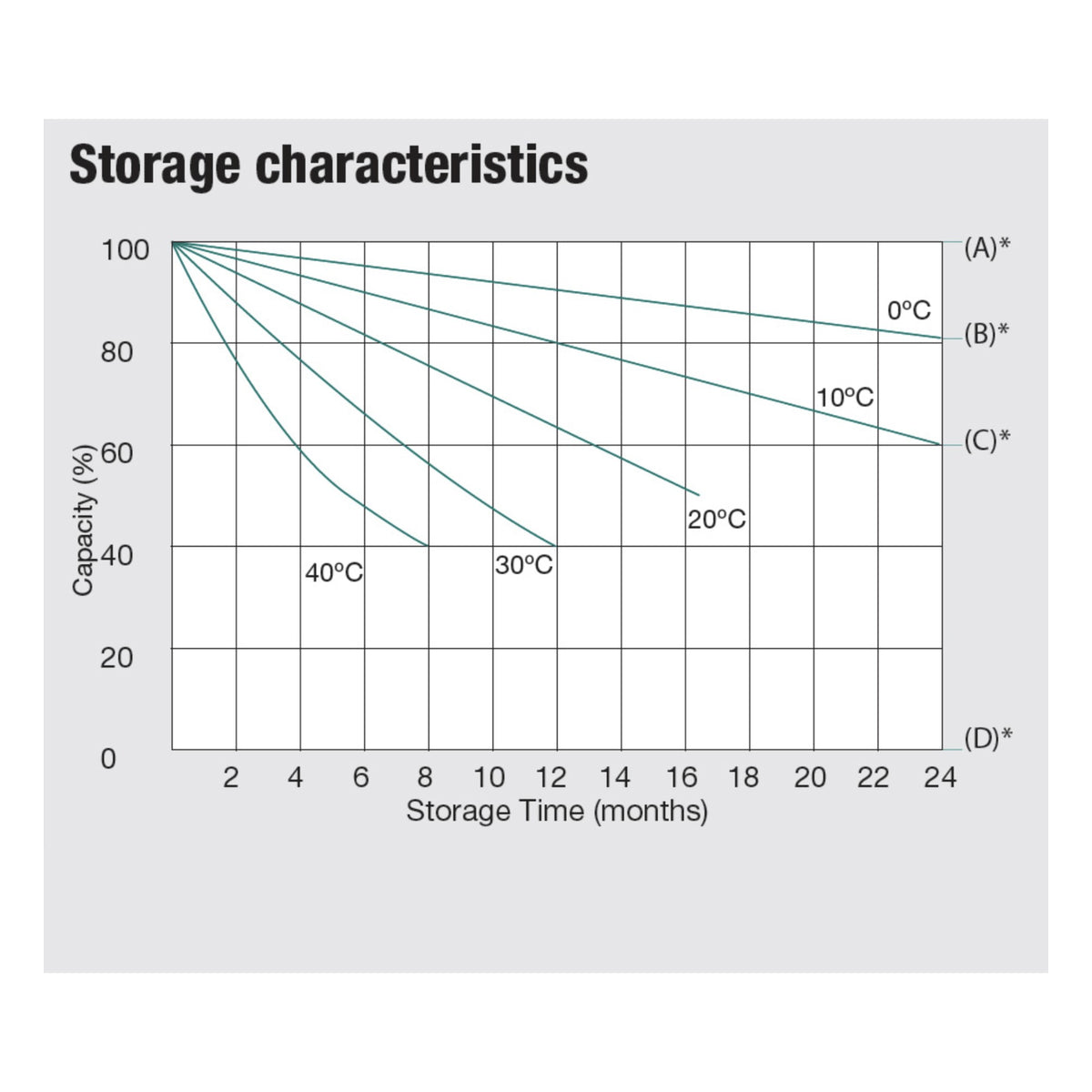

| Self discharge | Less than 3% per month at 25°C |
| Storage time | AGM batteries can be stored for up to 6 months at 25°C, recommended to charge before use |
| Battery parameters | |
| Inrush current at 25°C (5s) | 800 A |

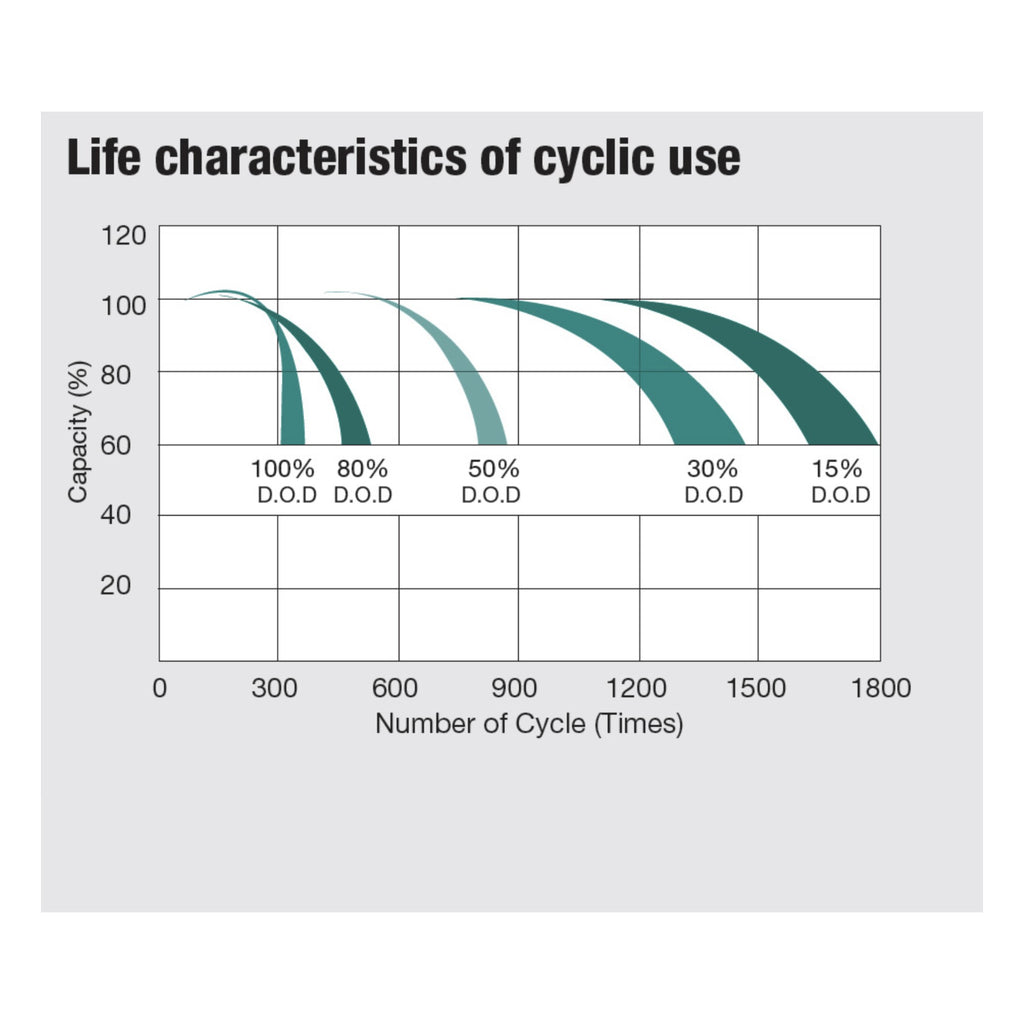

| Cyclic life at 80% discharge | 400 |
| Internal resistance (approx.) | 5,5m Ω |
Documents: Datasheet
