Description
Suitable for:
- SQ 12

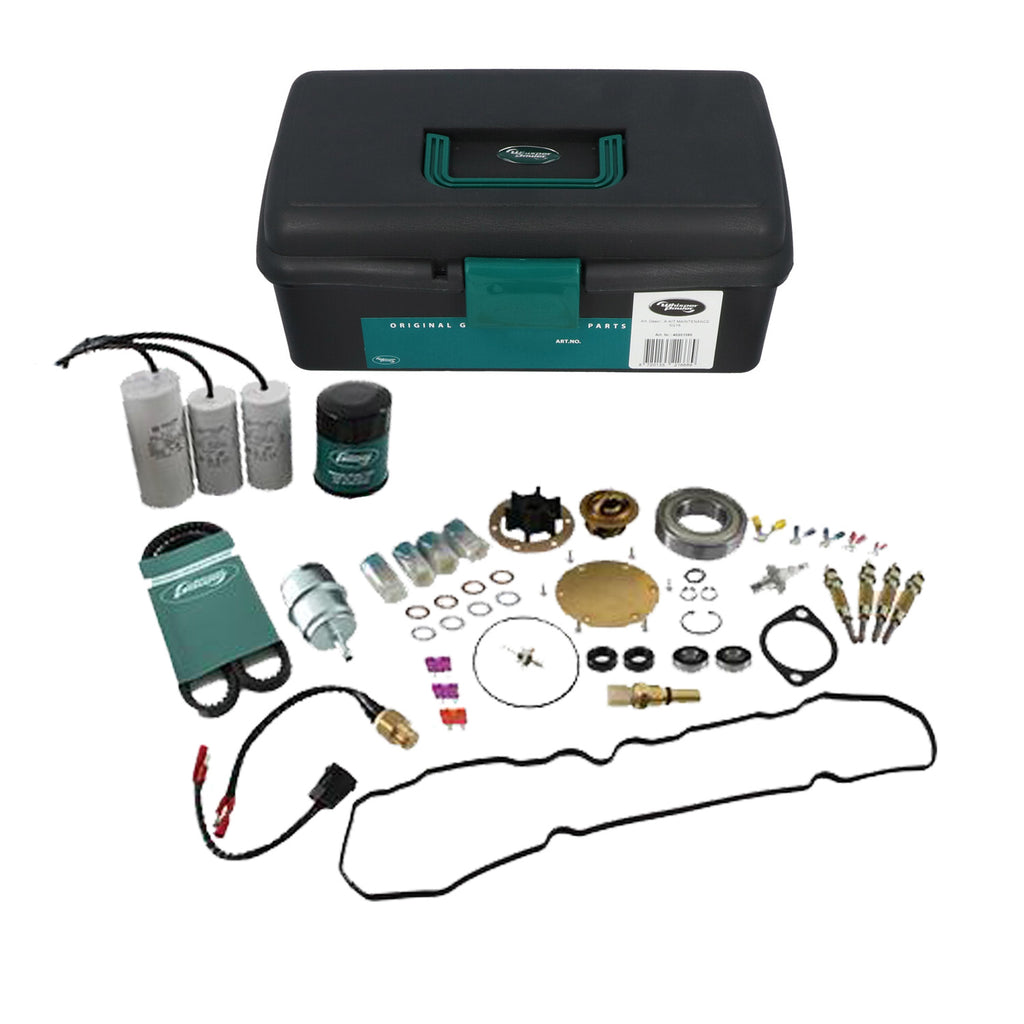

This maintenance kit includes the following parts:
| Part description: | Quantity: |
| Oil filter including valve | 1 |
| Fuel filter WP | 1 |
| Exhaust switch kit | 1 |
| Copper ring 12X18X1.5MM | 4 |
| O-ring bearing 80X2 | 1 |
| Bearing 40X80X18MM | 1 |
| Rotating diode 6-11KvA | 1 |
| Gasket fuel return injector | 4 |
| Nozzle tip injector | 4 |
| Gasket rocker cover | 1 |
| Gasket thermostat | 1 |
| Thermostat | 1 |
| V-belt | 1 |
| Glow plug | 4 |
| Gasket impeller waterpump | 1 |
| Impeller waterpump | 1 |
| Bearing impellerpump 12X28X8MM | 2 |
| Seal impellerpump WA+RVS 12X22X7 | 2 |
| Clip impellerpump large | 1 |
| O-ring impellerpump 12X2.5MM | 1 |
| Screws impellerpump stainless M4X8 | 6 |
| Clip impellerpump small | 2 |
| Cover impeller pump | 1 |
| Switch coolant temperature 110C M16X1.5 NC | 1 |
| Oil pressure switch 0.5Bar – single pole | 1 |
| Fuse blade 3A 32V Violet | 2 |
| Fuse blade 10A 32V Red | 1 |
| Capacitor 25uF 475V cable kit, class B 60Hz | 1 |
| Capacitor 30uF 475V cable kit, class B 60Hz | 2 |
Technical data
| Manufacturer | WhisperPower |
| Article number | 40201461 |
Documents: Maintenance kit contents
Genuine WhisperPower spare part. Not sure if it fits your generator? Send us the generator model and serial number – we will check compatibility.
