Description
Suitable for: generatormodels listed below
- M-SQ16
- W-SQ16

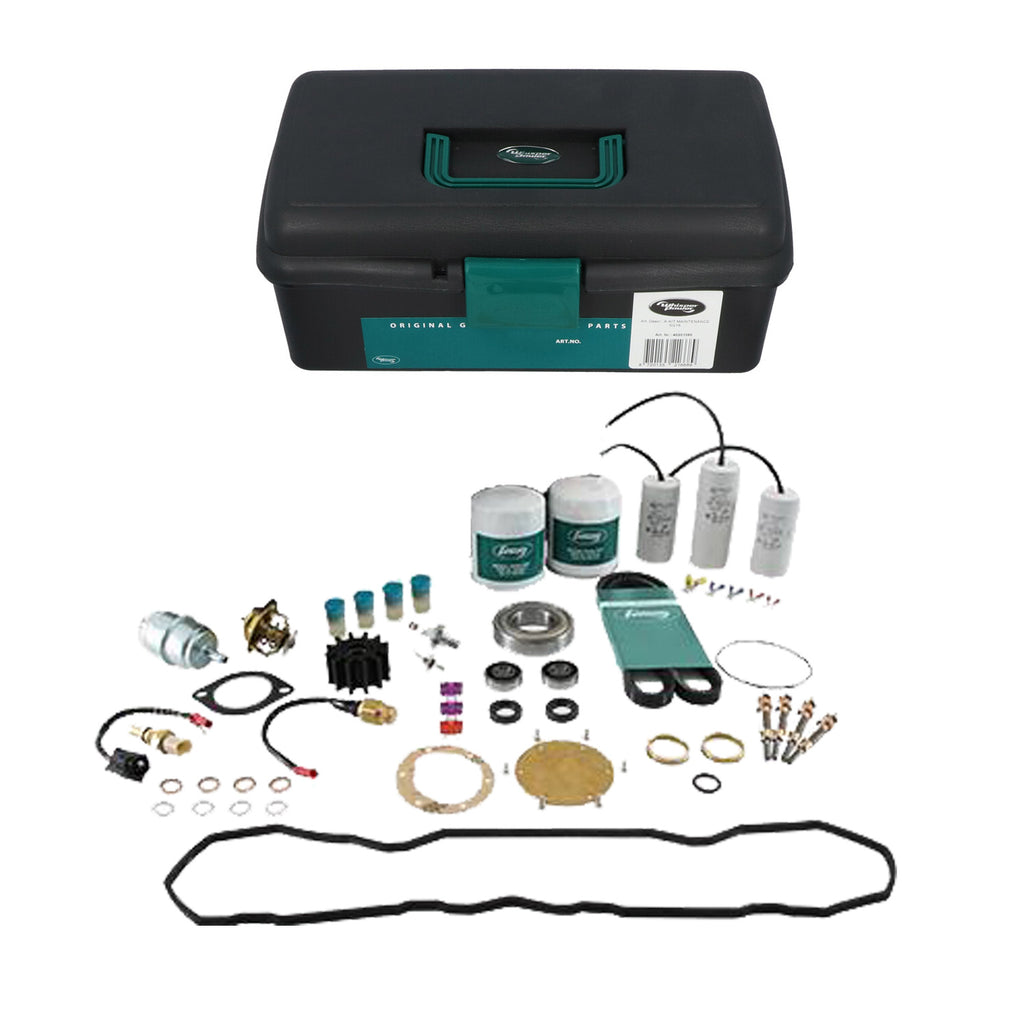

This maintenance kit includes the following parts:
| Part description: | Quantity: |
| Oil filter | 1 |
| Fuel filter | 1 |
| Exhaust switch kit WP | 1 |
| Copper gasket ring 12X18X1,5 MM | 4 |
| O-ring bearing 80X2 | 1 |
| Bearing 40X80X18 MM | 1 |
| Rotating diode 6-11 KVA | 1 |
| Gasket fuel return injector | 4 |
| Nozzle tip injector M | 4 |
| Gasket rocker cover | 1 |
| Gasket thermostat | 1 |
| Glow plug | 4 |
| Thermostat | 1 |
| V-belt | 1 |
| Impeller raw water pump | 1 |
| Seal raw water pump | 2 |
| O-ring raw water pump | 1 |
| Bearing raw water pump | 2 |
| Ring raw water pump | 2 |
| Gasket impeller waterpump | 1 |
| Screws impellerpump stainless M4X8 | 6 |
| Cover impeller pump | 1 |
| Switch coolant temp 110C M16X1.5 NC | 1 |
| Oil pressure switch 0,5Bar – Single pole | 1 |
| Fuse blade 3A 32V Violet | 2 |
| Fuse blade 10A 32V Red | 1 |
| Temperature switch 75C M8X1.25 | 1 |
| Capacitor 40uF 475V cable kit 250mm class B 60Hz | 1 |
| Capacitor 30uF 475V cable kit 250mm calss B 60Hz | 2 |
Technical data
| Manufacturer | WhisperPower |
| Article number | 40201361 |
Documents: Maintenance kit contents
Genuine WhisperPower spare part. Not sure if it fits your generator? Send us the generator model and serial number – we will check compatibility.
