Description

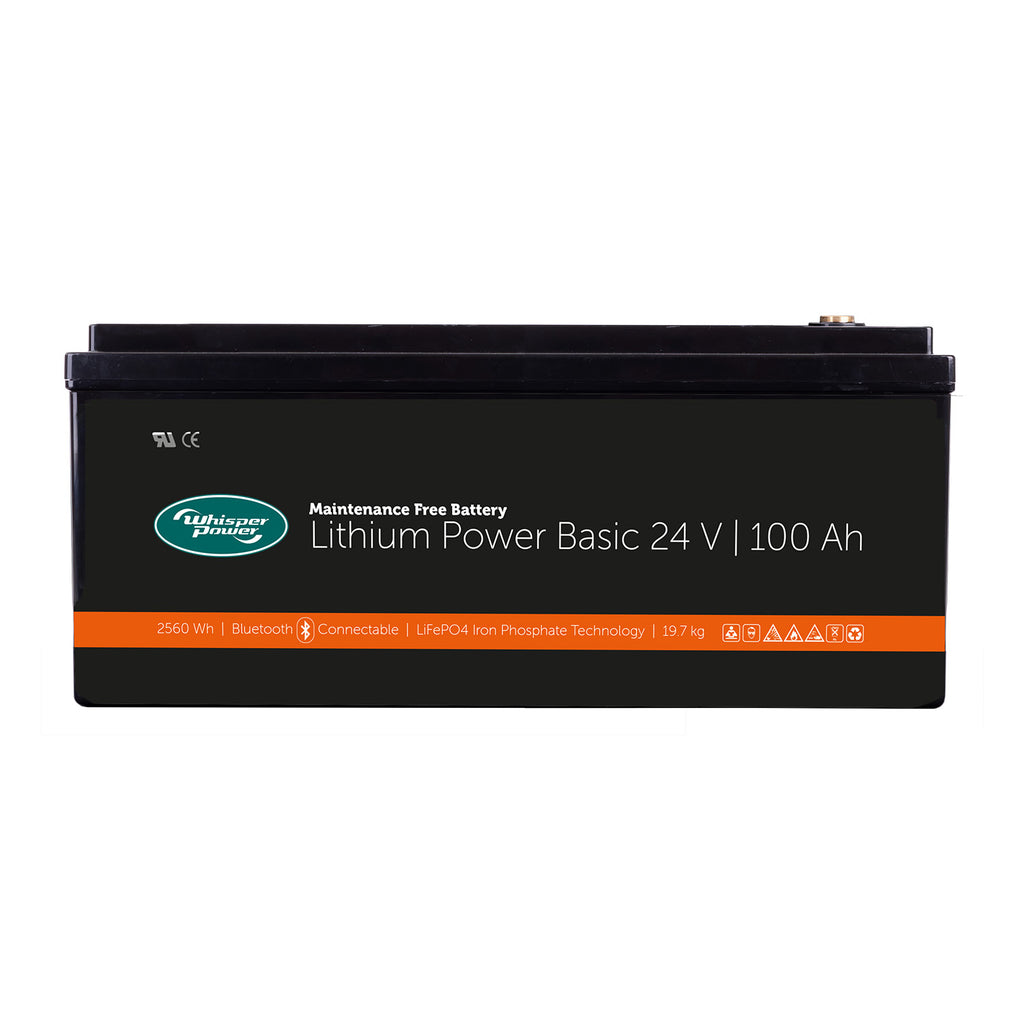

Our Lithium Power Basic 24 V – 100 Ah batteries are Lithium Iron Phosphate re-chargeable batteries. Lithium Iron Phospate (LiFePO4) technology is considered as the safest lithium technology available in the market. Potential applications of this Lithium Power Basic 24 V – 100 Ah battery include: recreational vehicles, boats, recreational off-grid houses, industrial energy storage solutions.
Technical data
| Manufacturer | WhisperPower |
| Article number | 40291205 |
| Length x width x height | 522 x 240 x 220 mm (20.6" x 9.5" x 8.7" inch) |
| Weight | 19.7 kg (43.4 lb.) |
| Nominal voltage | 25.6 V |
| Rated capacity | 100 Ah |
| Energy | 2560 Wh |
| Cycle life | >2000 cycles |
| Terminal type | M8 |
| Battery housing | ABS, UL-94V-0 |
| Housing protection | IP56 |
| CellType-chemistry | LiFePO4 Cylindrical Cell |
| Charge parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 28.8 ~ 29.2 V |
| Recommended Float Voltage | 27.6 V |
| Recommended Charge Current | 75 A |
| Maximum Charge Current | 100 A |
| BMS Charge Cut-off Voltage | 31.2 V |
| Discharge parameters | |
| Continuous Discharge Current | 100 A |
| Peak Discharge Current | 100 A (<10 seconds) |
| Recommended Volt. Disconnect | 20 V |
| BMS Discharge Cut-off Voltage | 16 V |
| Reconnect Voltage | 18.4 V |
| Short Circuit Protection | 200~600 us |
| Temperature parameters | |
| Discharge Temperature | -20 to 60 C |
| Charge Temperature | 0 to 45 C |
| Storage Temperature | 0 to 40 C |
| BMS High Temperature Cut-off | 80 C (176 F) |
| Compliance parameters | |
| Certifications | UL1642 (cell), CE, IEC62133 & CB, KC, BIS |
Documents: Datasheet · User manual
