Description

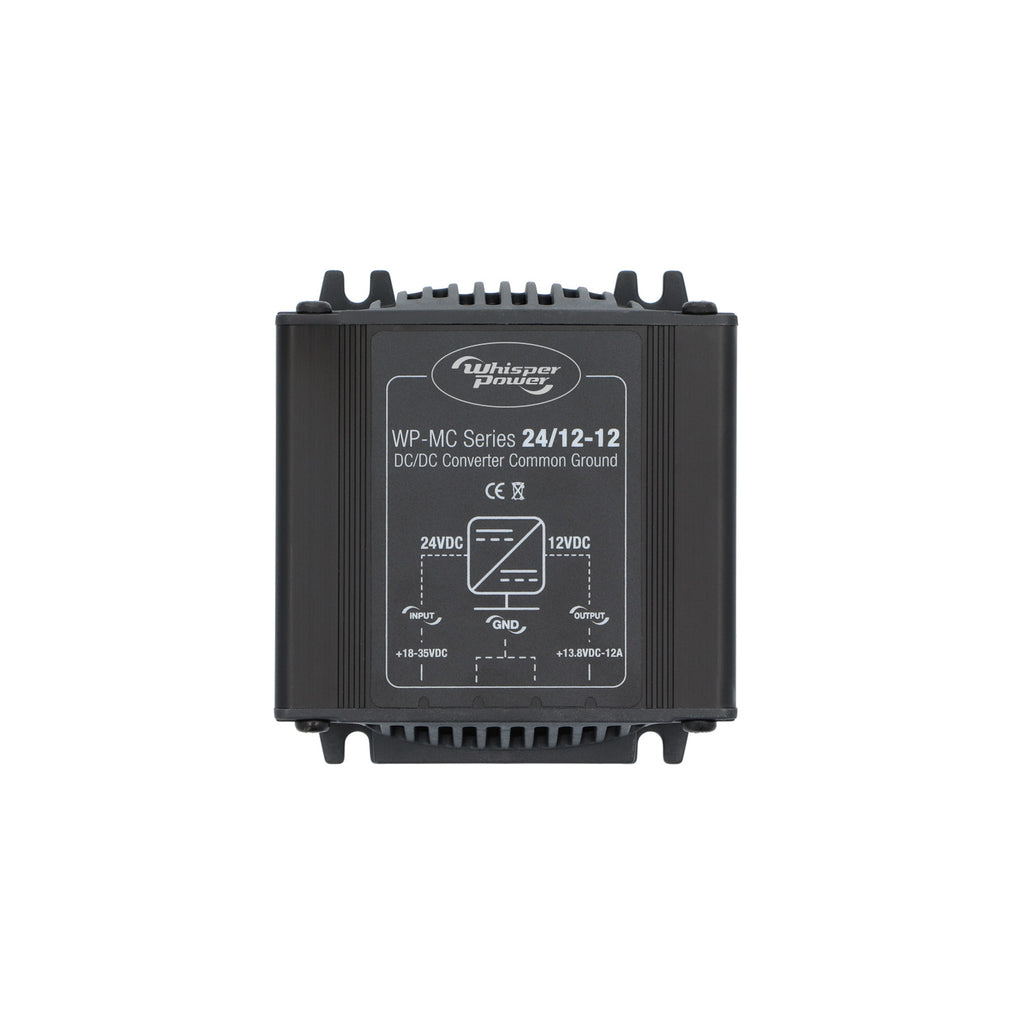

DC-DC step-down converter MC 24-12 VDC 12 A with common negative. Powers devices at 12 VDC, utilizing a 24V battery. Thanks to Switched Mode technology, energy loss is significantly reduced while ensuring high output. Additionally, it provides robust protection against overload and high temperatures. Cannot be used in parallel.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110016 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 50 x 98 x 88 (2 x 3.9 x 3.5) |
| Weight, kg (lb.) | 0.29 (0.64) |
| Input | |
| Nominal input voltage | 24 VDC |
| Input range, specifications met | 18 .. 35 VDC |
| Input range, no defects | 0 .. 35 VDC |
| Output | |
| Nominal output voltage | 13.8 VDC |
| Voltage adjustable | no |
| Output accuracy | 3% |
| Ripple, peak output voltage | 1% |
| maximum power output | 170 W |
| continuous output power | 170 W |
| Maximum output current | 12 A |
| Continuous output current at 40 °C | up to 12 A |
| General | |
| efficiency | >92% |
| consumption no load | <5 mA |
| Ambient operating temperature | -10°C .. +40°C |
| Storage temperature | -25° .. +85°C |
| Relative humidity in use | up to 95%, non-condensing |
| Galvanic isolation | Common negative |
| Cooling | convectional |
| Protections | |
| Current / short circuit | Yes / fuse |
| Overheating, shut down | no |
| Mechanical specifications | |
| Faston in/ off, max thread thickness | 6 mm² |
| Mounting holes | dia 4 mm, rh 58×90 |
| International Protection rating | IP20 |
| Housing | frame 4 |
| Housing material | Alu / ABS |
| Housing colour | RAL 9011 graphite black |
| Meets the following Standards | EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU |
Documents: Datasheet · User manual · EC Declaration of Conformity
