Description

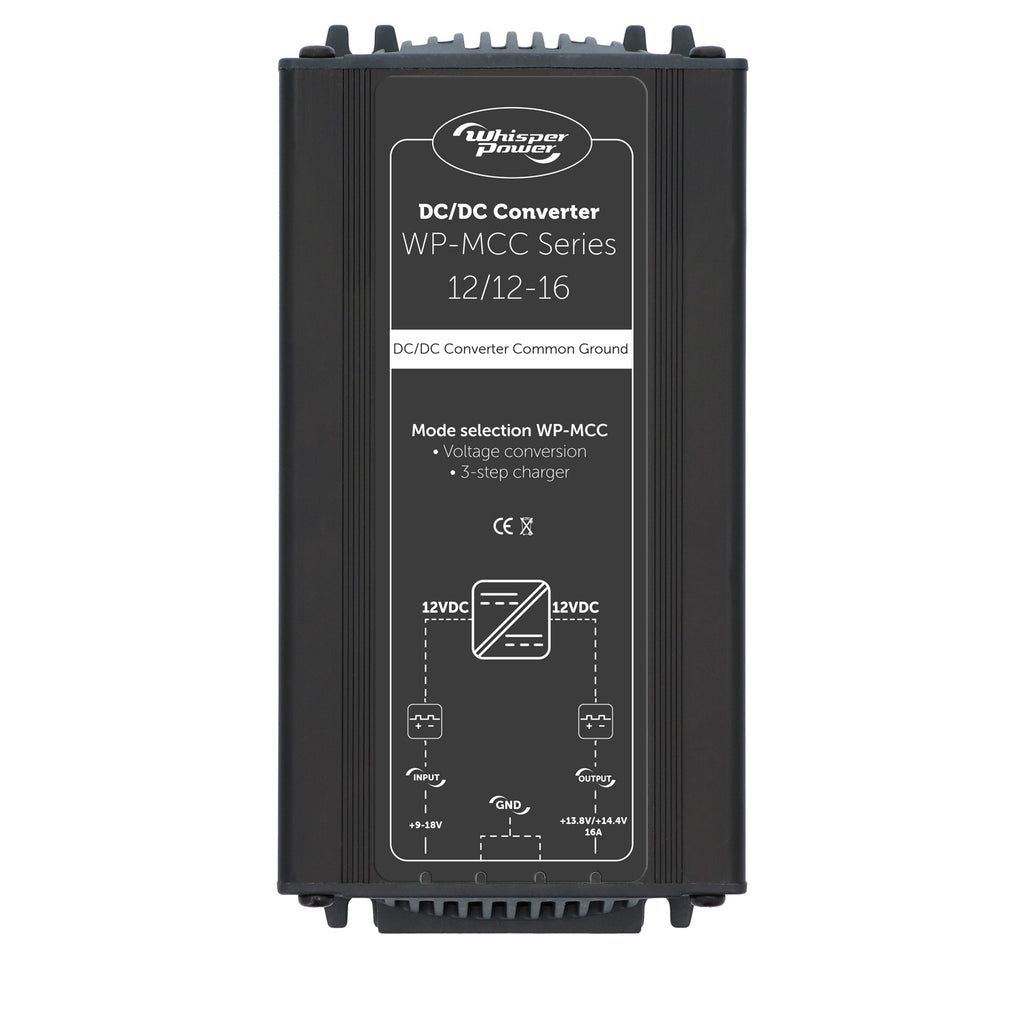

DC/DC voltage stabilizer and B2B charger MCC 12-12 VDC 16 A with current limitation. Delivers a constant output voltage to protect sensitive electronic equipment. Always 12 VDC and 16 A regardless of fluctuations in the supply voltage from your battery. Three-step charging process that ensures a fast, efficient, and safe way of charging, improves battery performance, and extends battery life. Can be used in parallel.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110014 |
| Input voltage | 12 VDC |
| Range | 9.0 V ... 18.0 VDC |
| Recovery voltage | > 11.8 VDC |
| Under voltage limitations | < 11.6 V |
| Stabilization | +/- 1 % |
| Output current limitation | +/- 16 A |
| Consumption (no load) | +/- 23 mA |
| Output voltage boost | Boost 14.6 VDC Float 13.6 VDC |
| Boost forcing | Every 24 hours |
| Connections | 4 x 6.3 mm faston |
| Cable advice | 2.5 mm2 |
| Length x width x height, mm (in.) | 50 x 58 x 175 (2 x 2.3 x 6.9) |
| Weight, kg (lb.) | 0.613 (1.35) |
Documents: Manual
Need help choosing the right solution or with installation? Write to us – we are happy to help.
