Description

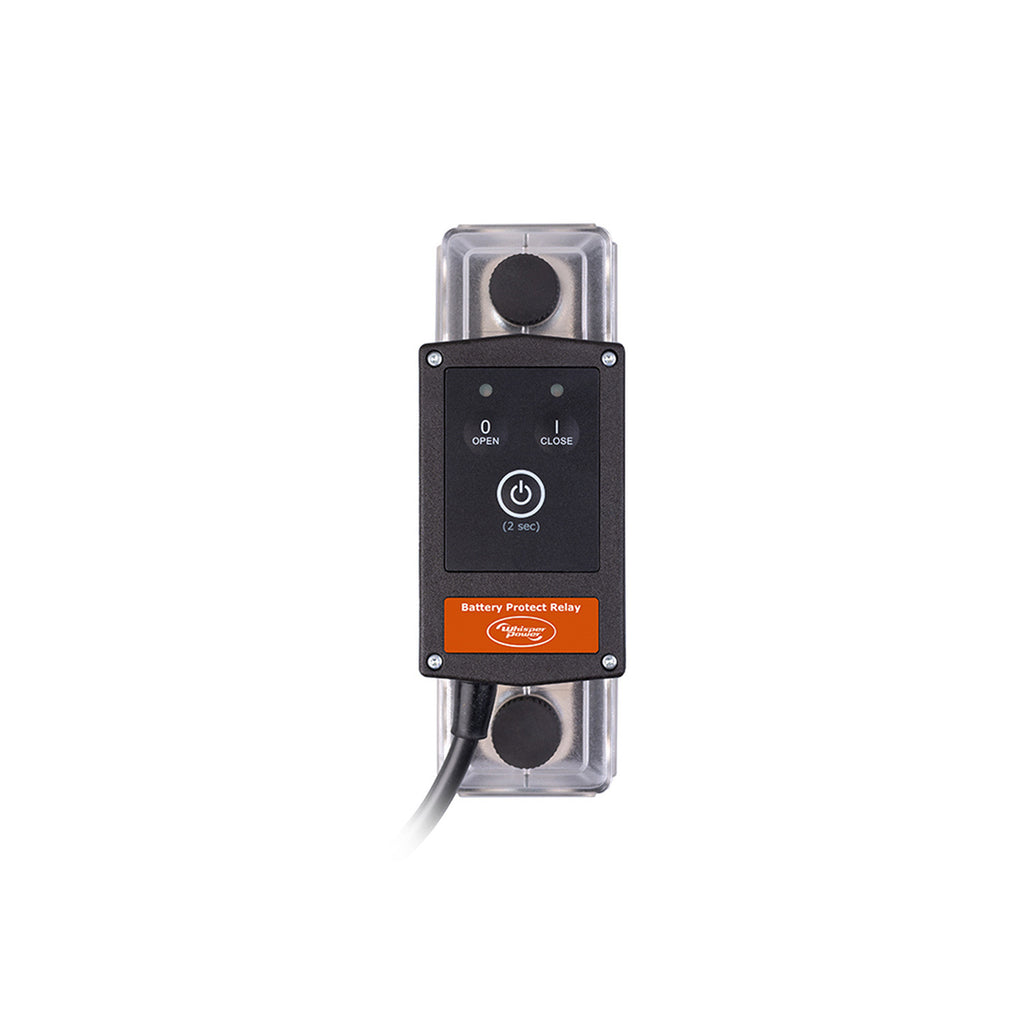

The DC Modular Battery Protect Relay has the same capabilities as the Remote Battery Switch. It is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500 Amps.
Whereas the Remote Battery Switch is mainly used as a locally or externally controlled battery load switch, the Modular Battery Protect Relay has a number of additional features. Most importantly, it can protect your battery without the need for an external measurement and control device.
Technical data
| Manufacturer | WhisperPower |
| Article number | 50214739 |
| Dimensions & weight | |
| Weight (Kg) | 0.8 |
| Dimensions (mm) | 50 x 94 x 150 |
| Contact circuit (electrical) | |
| Maximum voltage | 60 VDC |
| Nominal current @ 25°C | 500 A (see Precaution #2) |
| Cranking current (1 minute) | 1000 A |
| Nominal make / break current | 500 A (0 .. 34 Vdc) 350 A (35 .. 60 Vdc) |
| Peak make / break current | 1600 A (0 .. 34 Vdc) 1200 A (35 .. 60 Vdc) |
| Control circuit (electrical) | |
| Coil / supply voltage (+Vdc) | 15 - 34 VDC |
| Coil / supply current (idle state) | < 100 μA |
| Coil / supply current (state change) | < 3 A |
| General | |
| Remote control | By control wires |
| Local control | On/Standby, Open and Close contact, Override mode |
| Automatic disconnect and reconnect | Yes (10 individually programmable disconnect and reconnect voltage levels) |
| Indicators | Contact open/close, Undervoltage disconnect, Override mode, Error and Setup |
| Protected against | High temperature, High/Low supply voltage, Ignition (ISO 8846) |
| Mechanical life | 100000 cycles |
| Electrical life | 10000 cycles |
| Operating temperature range | -20 .. +60°C |
| Connection studs / DCM grid size | M10 / 1 x 3 |
| Protection class | IP 65 |
| Standards | EMC: 2014/30/EU, Low voltage directive: 2014/35/EU, RoHS: 2011/65/EU, Automotive: EN 50498, ISO 8846 |
Documents: User manual
