Description

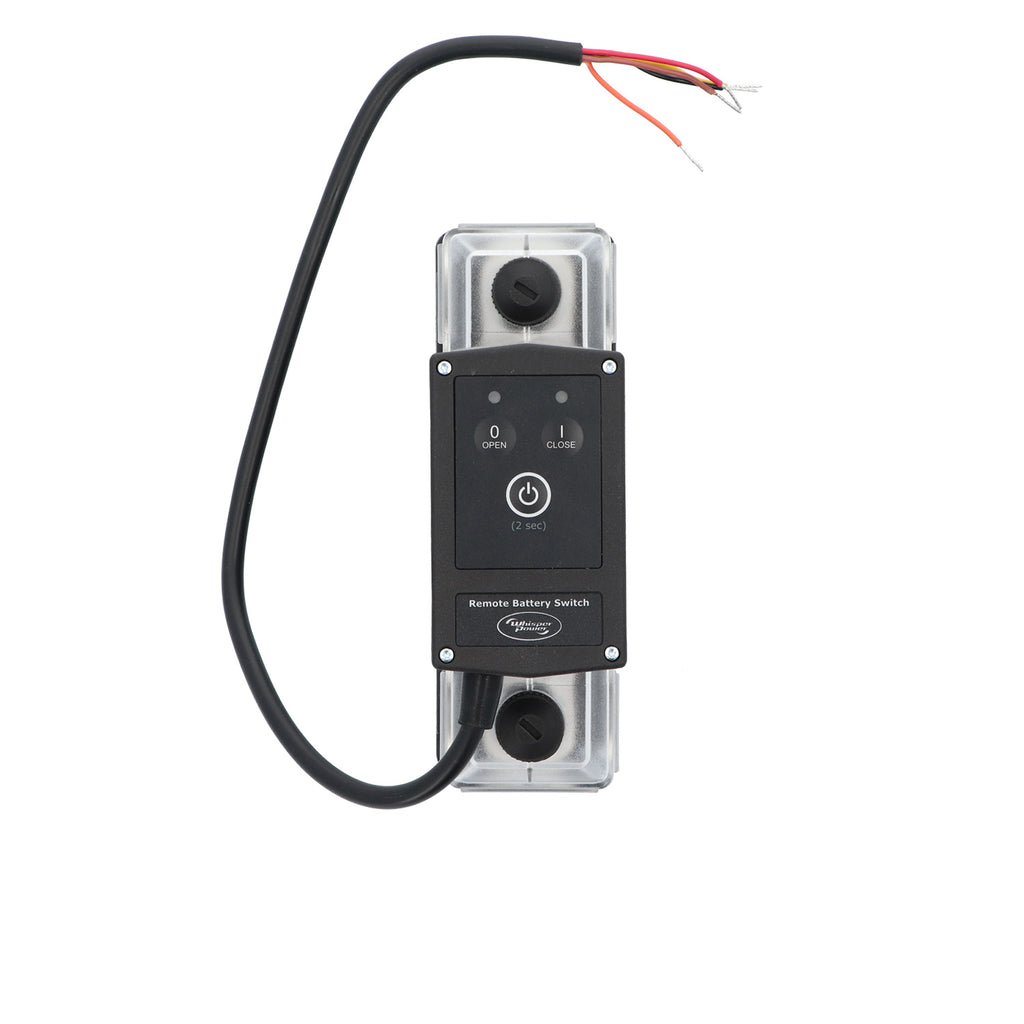

The DC Modular Remote Battery Switch 24 V / 500 A is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500 Amps. The Remote Battery Switch 24 V / 500 A can easily be installed in an engine room or battery compartment while being controlled from a more convenient location by a small panel mounted switch. But the Switch can for instance also be controlled by a battery monitor or Lithium battery, as a discharge/overcharge protection.
Technical data
| Manufacturer | WhisperPower |
| Article number | 50214734 |
| Dimensions & weight | |
| Length x width x height | 150 x 50 x 94 mm (5.9" x 2" x 3.7" inch) |
| Weight | 0.8 kg (1.8 lb.) |
| Rated voltage | 60 VDC |
| Nominal current | 500 A |
| Cranking current (1min.) | 1000 A |
| Nominal make / break current | 500 A (0..34 Vdc) / 350 A (35..60 Vdc) |
| Peak make / break current | 1600 A (0..34 Vdc) / 1200 A (35..60 Vdc) |
| Coil / supply voltage (+Vdc) | 14..34 VDC |
| Coil / supply current (idle state)1) | < 100 uA |
| Coil / supply current (state change)1) | < 3 A |
| General | |
| Remote control | By control wires |
| Local control2) | Top side buttons (On/Standby, Close contact, Open contact) |
| Indicators | Top side LEDs for Contact open, Contact closed, Error and Setup |
| Mechanical life | 100000 cycles |
| Electrical life | 10000 cycles |
| Operating temperature range | -20..+60°C |
| Connection stud size | M10 |
| DC Modular grid size | 1x3 |
| Protection class | IP65 |
| Standards | CE certified (EMC Directive 2014/30/EU, Low voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Ignition protection standard ISO 8846) |
Documents: Datasheet · User manual
