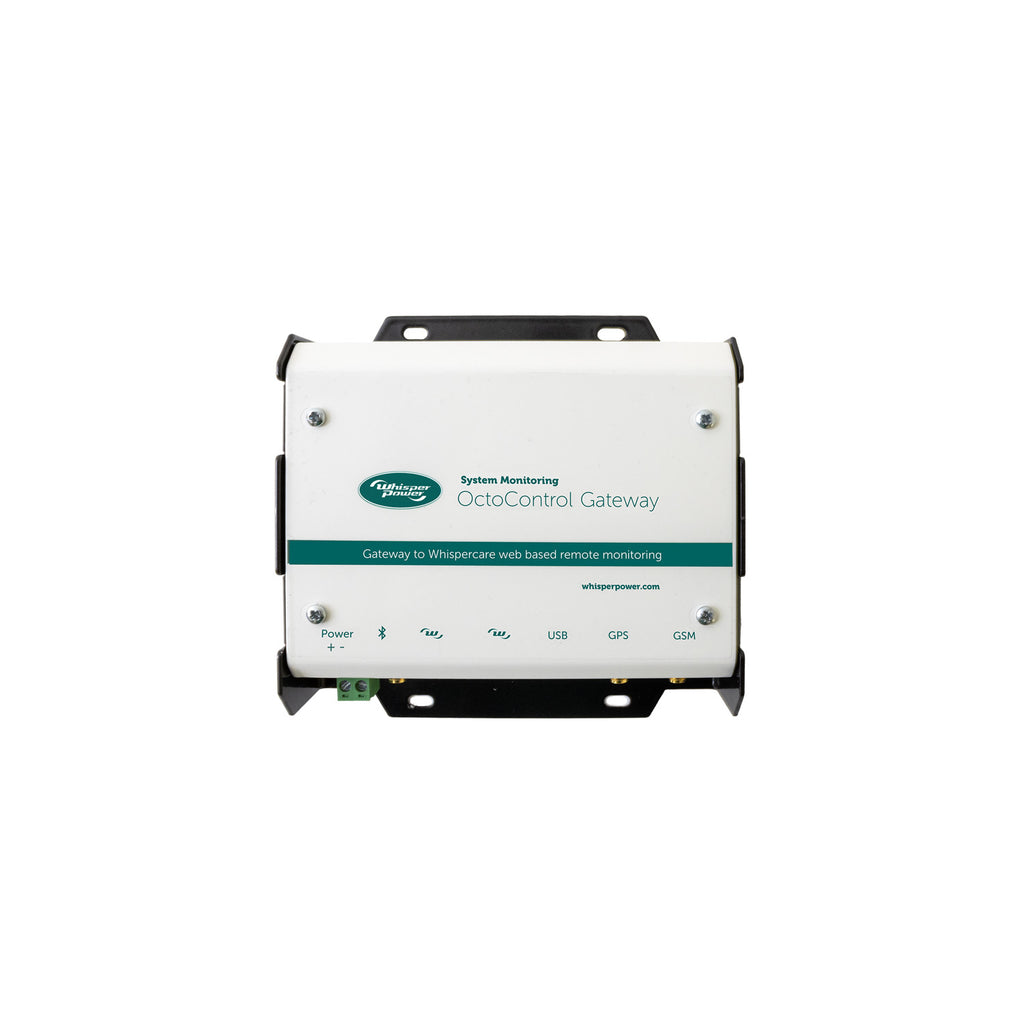

OctoControl Gateway: Plug-and-Play Online Monitoring

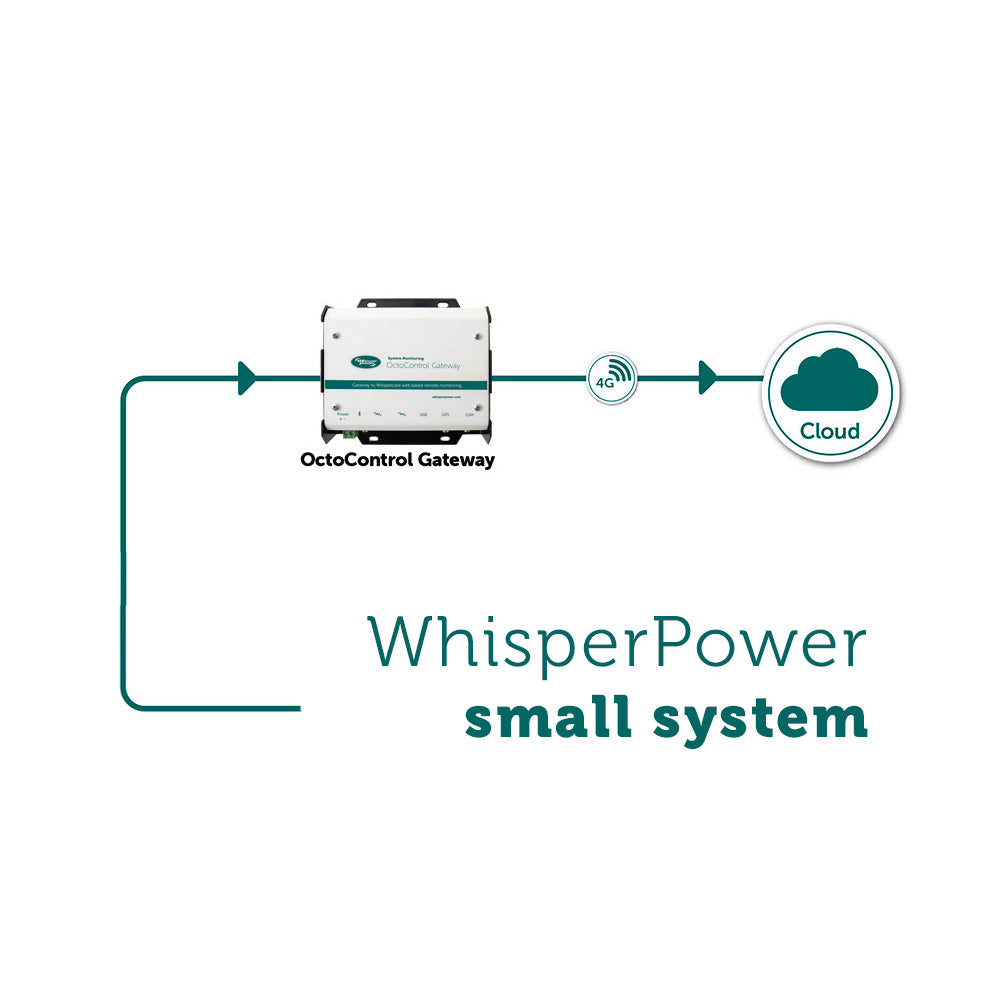

With the OctoControl Gateway, online monitoring becomes simple and accessible—especially if you’re working with a smaller power system. The unit includes a built-in SIM card and comes with 5 years of cloud connectivity, so you can start using WhisperCare right away without any additional setup. You’ll be able to monitor your system, control it remotely, and see exactly when maintenance is needed.
The Gateway supports up to four devices, making it ideal if you’re looking for a quick and easy solution. Its plug-and-play design means you’ll have everything up and running in just a few minutes. If your setup includes more than five devices, the OctoControl Pro might be the better fit.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60208010 |
| Main specifications | |
| Input voltage | 8 - 32 V |
| Power consumption | < 100 mA @ 12 V |
| Operation temperature | - 20 °C to + 40 °C |
| Storage temperature | -40..80 °C, Relative humidity in operation/ storage up to 95% non-condensing |
| System communication | WhisperConnect |
| System support | Up to 4 WhisperPower compatible devices |
| Cloud integration | Yes |
| Cloud connection | Builtin 4G (SIM card included) |
| OctoView monitor support | No |
| OctoView monitor connections | N.A. |
| MFD integration support | No |
| MFD brands supported | N.A. |
| MFD integration method | N.A. |
| MFD connection | N.A. |
| Mechanical specifications | |
| Dimensions (w x d x h) (mm) | 140 x 40 x 140 |
| Weight (kg) | < 0.5 |
| Installation advice | For interior use |
| Delivery scope | OctoControl Gateway + SIM card |
| Connections | |
| Power | 2 pin pluggable screw connector |
| CAN #1 | 2x RJ45 (pinout following WhisperConnect standard) |
| CAN #2 | No |
| RS485 #1 | No |
| RS485 #2 | No |
| HDMI | No |
| USB | Yes (for updating purposes only |
| Ethernet #1 | No |
| Ethernet #2 | No |
| Mobile 4G | SMA antenna |
Documents: Datasheet · Brochure
Need help choosing the right solution or with installation? Write to us – we are happy to help.
