Description

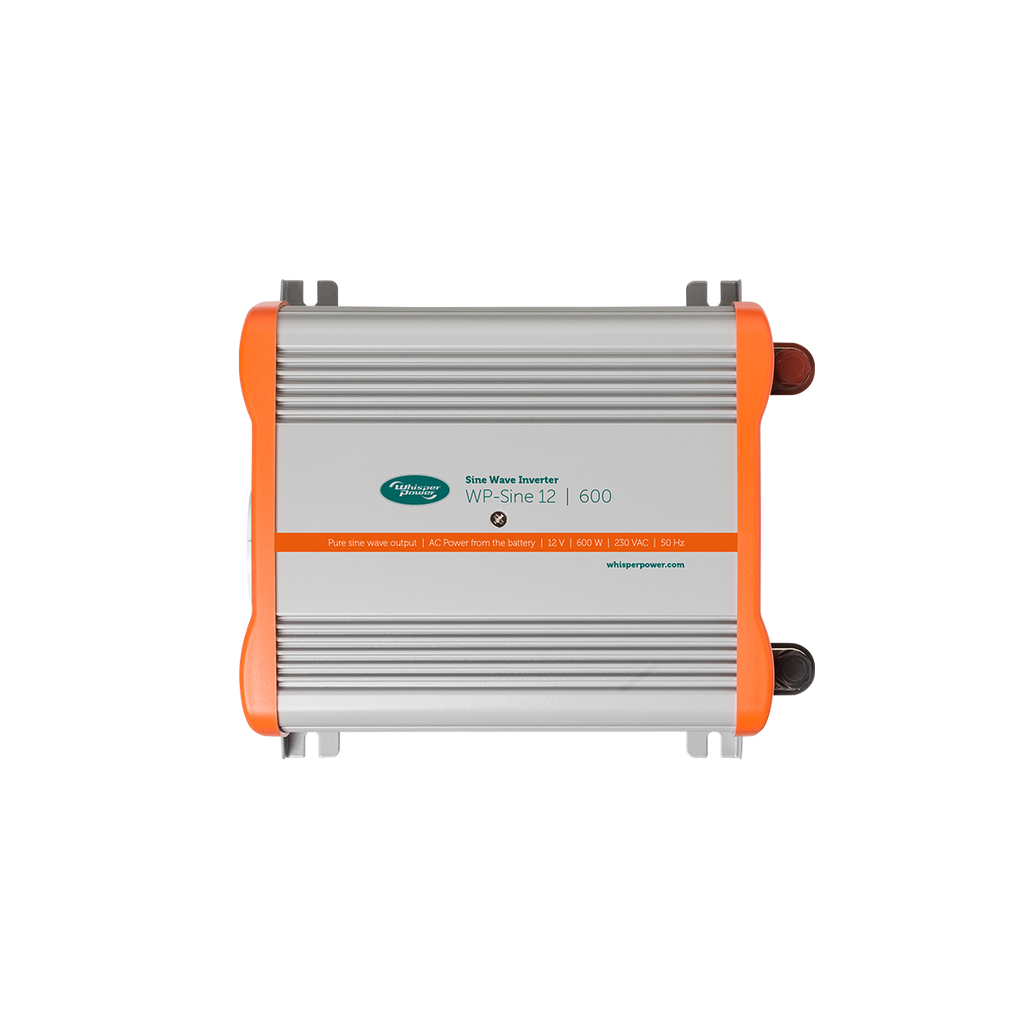

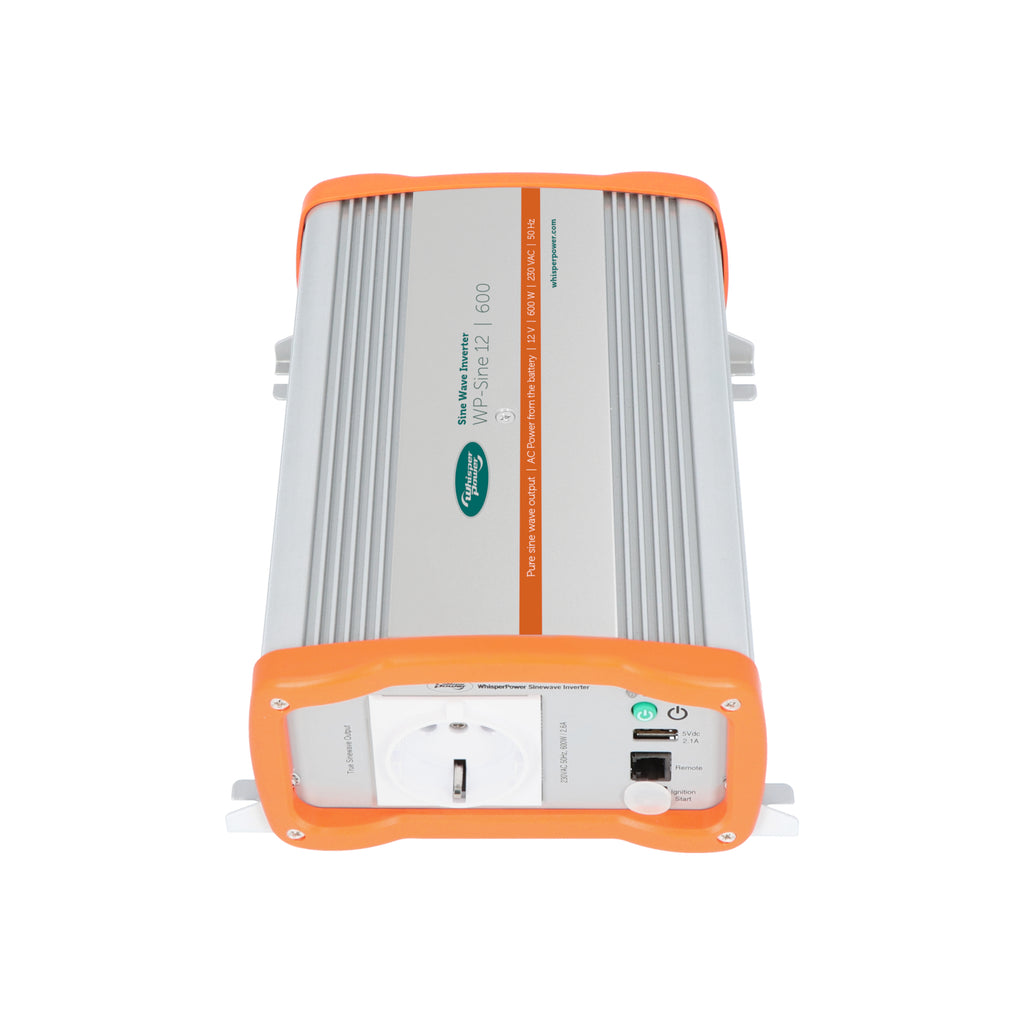

Pure sine wave inverter Sine 12 VDC – 600 W. Provides exactly the same voltage from the battery on your yacht, truck or RV as home! Ideal for charging your phone and laptop, power tools, coffee maker, microwave and all other household appliances.
This Sine series inverter is compact, light, robust and has high efficiency. Easy to install yourself by connecting the Sine 12 VDC – 600 W to a battery, such as the AGM Battery 12 V – 145 Ah and requires no maintenance. The perfect addition to existing installations which already include a battery charger.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61120600 |
| Ac output | |
| Power (continuous) | 600 W |
| Power (peak 500 ms) | 800 W |
| Output Voltage | 230 V |
| Output frequency | 50 Hz |
| Transfer Switch | No |
| Total harmonic distortion (THD) | <5% pure sine wave |
| Dc input | |
| Nominal battery voltage | 12 V |
| Voltage range | 10.5 - 15.5 VDC |
| Input power | 57 A |
| Consumption (no load) | 0.8 A base |
| Dc output | |
| 5 V USB Phone charger | 1000 mA |
| Display | |
| LED indicator | Yes Power / Fault |
| Digital display | Not applicable |
| Protection and features | |
| Length x width x height, mm (in.) | 175 × 200 × 90 mm (6.9 x 7.9 x 3.5) |
| Weight kg (lb.) | 1.73 (3.8) |
| Warning low input voltage | 11.2 V |
| Shutdown low battery voltage | 10.5 V |
| Recovery after low battery voltage | 11.8 V |
| Shutdown battery voltage too high | 15.5 V |
| Warning too much power | Not applicable |
| Shutdown too much power | Yes |
| Short circuit too much power | Yes |
| Temperature warning | Not applicable |
| Thermal protection (shutdown) | Yes |
| Conforms to | Directive EMC 2004/108/EC Low voltage directive 2006/95/EC |
| Operating temperature range | -20 - 55°C (derating above 40 ° C) |
| Relative humidity in operation | 95 % without condensation |
| Ventilation | Forced cooling |
| Battery connector | M5 studs |
| AC-output | 1 Schuko / UK socket |
| Warranty | 2 years |
Documents: Datasheet
