Description

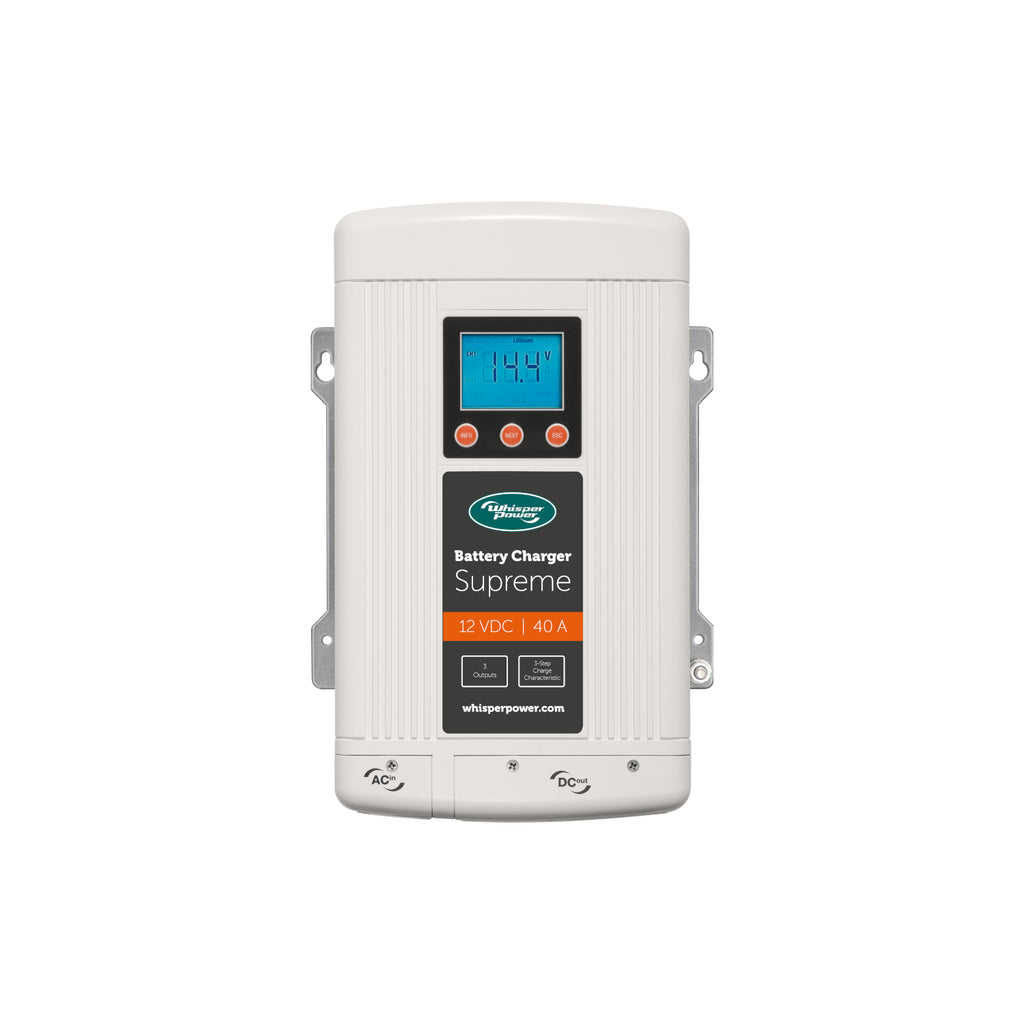

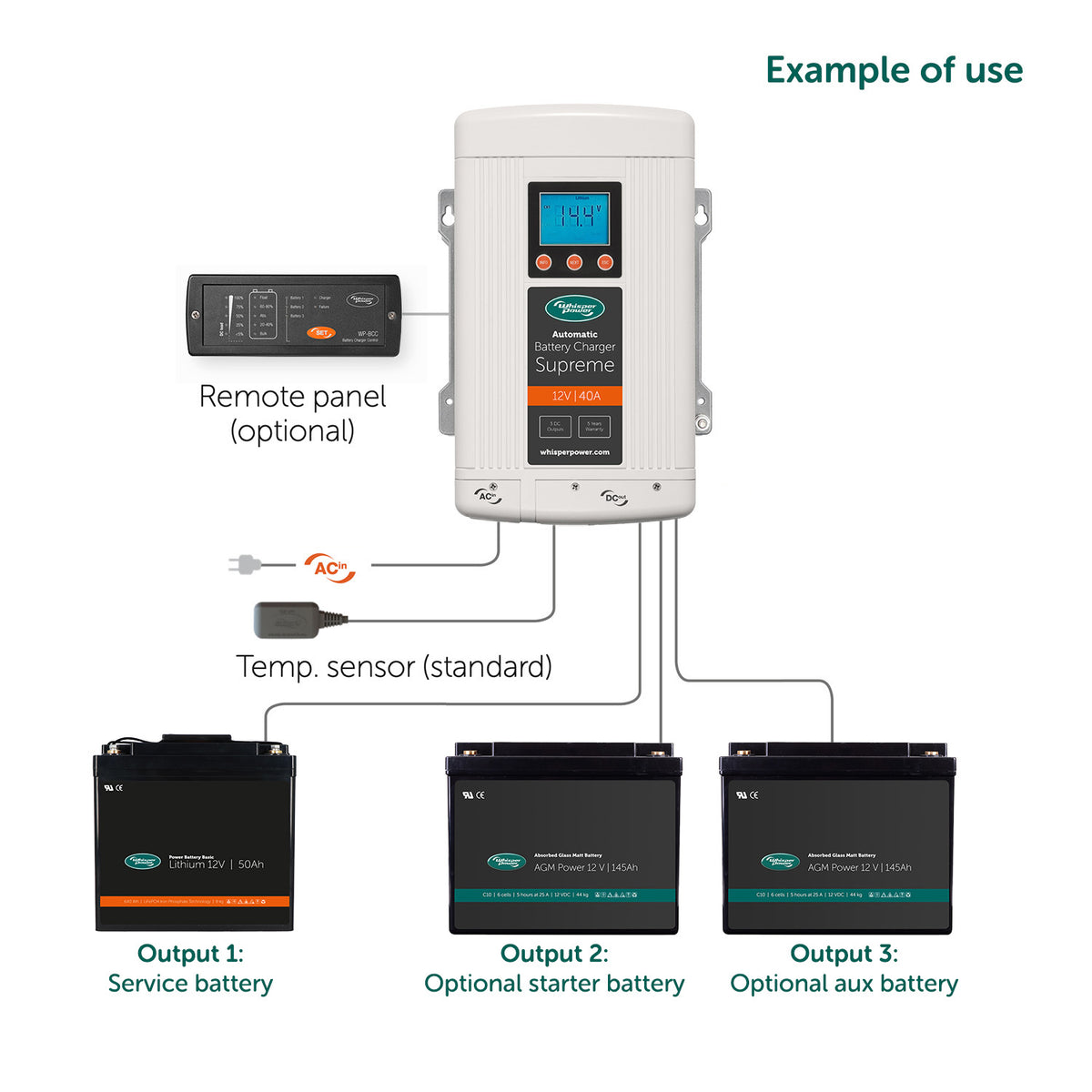

Meet the Supreme 12 VDC – 40 A battery charger with multiple outputs. Ideal for installation in automotive, marine environments and more. Capability to charge up to three batteries. Easy to configure for AGM, GEL, Lead-acid and Lithium types. Worldwide usability is assured, as Supreme charging stations handle input voltages from 90 to 265 VAC (50/60 Hz).
Technical data
| Manufacturer | WhisperPower |
| Article number | 61112304 |
| Dimensions & weight | |
| Weight | 2.6 Kg / 5.7 lb. |
| Length x width x height, mm (in.) | 295 x 206 x 86 (11.6 x 8.1 x 3.4) |
| Output Current (Maximum) | 40 A |
| Output Voltage Charge | 14.2 - 15.5 V |
| Output Voltage Float | 13.4 - 13.8 V |
| Output Voltage Equalize | 16.0 V |
| Charging Control | 3-step (Bulk / Absorption / Float) |
| DC Output Bank | 3 |
| Selectable Battery Type | GEL, AGM, WET, Lithium |
| Parasitic Current | < 2 mA |
| Charger input | |
| AC Input Voltage (Nominal) | 100, 120, 220, 230, 240 VAC |
| AC Input Operating Range | 90 - 265 VAC |
| AC Input Frequency Range | 47 - 63 Hz |
| Power Consumption (Full Load) | 700 W |
| Power Factor Correction | Yes |
| Charger Efficiency | > 82% |
| Protection and features | |
| Reverse Battery | Yes, unit shutdown |
| Over Charge | Yes, unit shutdown |
| Over Heating | Yes, unit de-rated and shutdown |
| Output Short Circuit | Yes, unit shutdown |
| Cooling | Forced air ventilation |
| Temperature Setting | Hot, Normal, Cold (no sensor connected) |
| Battery Temperature Sensor | Yes included with 1.5 mtr cable |
| Battery Temperature Sensor Port | RJ12 (battery temp. sensor use) |
| Digital Display Port | RJ12 (optional display panel use) |
| Display | |
| LCD Display (with back lighting) | Charging status, Battery Voltage |
| Warning and Fault Code | A01-02, E01-09 |
| Ac input and dc output connection | |
| AC Input Connection | Hardwire or AC Cord |
| DC Output Connection | Heavy Duty Studs (3 banks) |
| DC Output Ground | Single Heavy Duty Common Ground Stud |
| Environmental and operating temperature | |
| Storage Range | -40° to 70°C |
| Operating Range | -20° to 60°C |
| Humidity | 5-95%, RH non-condensing |
| Ingress Protection | IP32 |
Documents: Datasheet
