Description

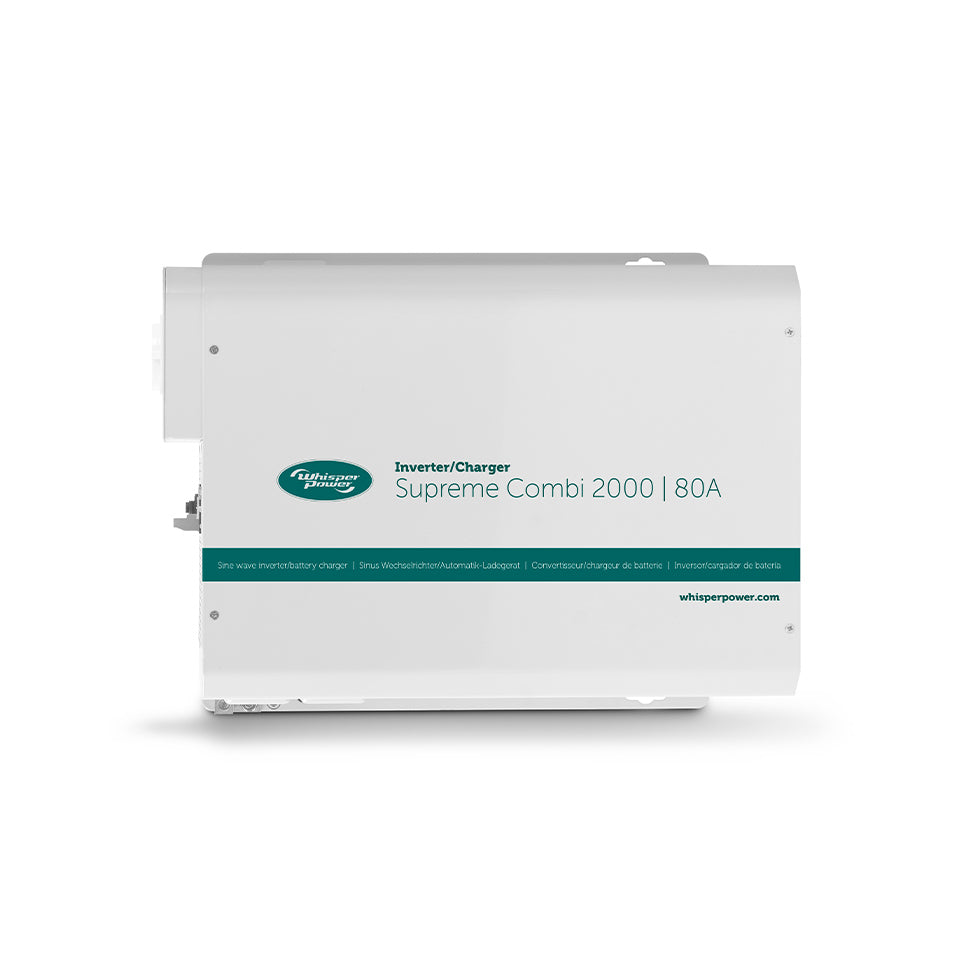

The Supreme Combi 12 V / 2000 W – 80 A will offer you reliable service by providing AC power and 5 V USB power for your home, cabin, boat, RV or Trailer using battery power and recharge your battery automatically when utility AC is available. The Sinewave Inverter-Charger can run many AC-powered appliances when you need AC power anywhere. The 5 V USB power can charge many USB-powered devices. The multi-stage battery charger will charge different types of batteries.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61122080 |
| Dimensions & weight | |
| Length x width x height, mm (in.) | 391 x 302 x 106 (15.4 x 11.9 x 4.2) |
| Weight, kg (lb.) | 8 (17.6) |
| Inverter | |
| AC output power 25°C (continuous) | 2000 W |
| AC output current | 8.6 A |
| AC peak power (2 sec) | 4000 VA |
| AC output voltage/ Hz | 230 V - 50 Hz / 60 Hz |
| AC Voltage wave form | pure sine wave (<3% THD) |
| Ac switching relay | |
| Switching time | <30 ms |
| Capacity switching relay | 16 A |

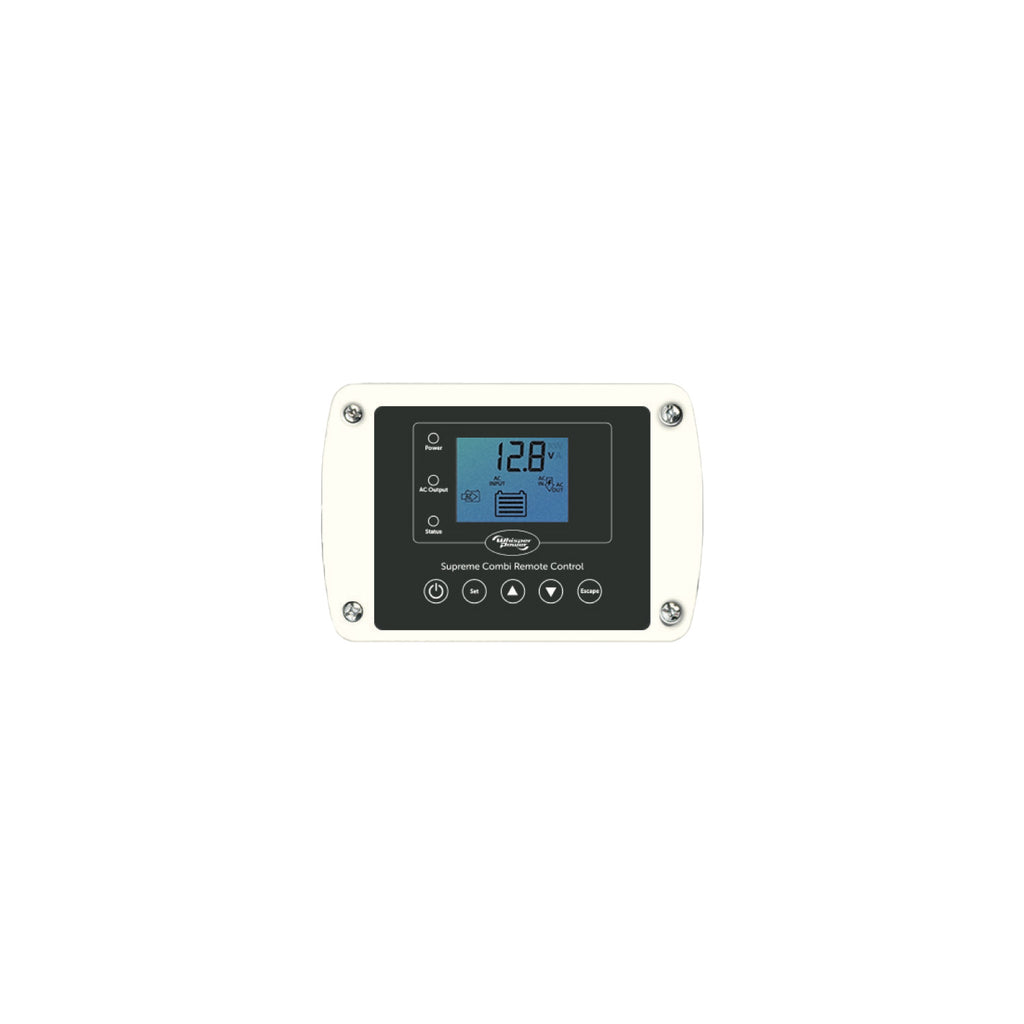

| Display | |
| Connection display | RJ12 |
| Inverter info | input voltage, output power |
| Charger info | status, battery voltage |
| Charger | |
| AC input voltage | 230 VAC - 50 Hz |
| Load Voltage Range | 13.8 - 14.8 VDC |
| Float Voltage Range | 13.0 - 14.4 VDC |
| Charge current (max) | 80 ADC |
| Charge current settings | 80 |
| Battery type | GEL, Flooded, AGM, Lithium, Programmable, Power Supply |
| Charge characteristics | bulk / absorption / float |
| Efficiency | >80% |
| Safety & environment | |
| Conformity marking | CE |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 5 - 90% non-condensing |
| Usage height | up to 3.000 m above sea level |
| Power supply | |
| Available plug sockets | EU - UK - AUS |
Documents: Datasheet · User Manual 230 VAC · User Manual 120 VAC
