Description
The Supreme Pro 24 VDC – 100 A is your all-in-one charging solution. Compact and unobtrusive, this battery charger runs cool and quietly, fitting seamlessly into any setup. A ripple-free DC output, perfect for electronic devices that need a non-stop DC power supply of the highest quality. Ultimate solution for fast charging of lithium and lead batteries. For buffer charging, feeding and maintenance charging.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60205401 |
| Dimensions & weight | |
| Weight | 6.6 kg / 14.55 lbs |
| Enclosure type & dimensions (hxwxd in mm) | 445 x 210 x 145 |
| Enclosure type & dimensions (hxwxd in inch) | 17.5 x 8.2 x 5.7 |
| General specifications | |
| Nominal input voltage | 120/230 V (90-265 V) |
| Nominal input frequency | 50/60 Hz (45-65 Hz) |
| Nominal output voltage | 24 V |
| Total charge current | 100 A @ 28.8 V |
| Number of battery outlets | 3 |
| Charge current second output | 6 A, ±1 A |
| Charge current third output | 6 A, ±1 A |
| Charge characteristic | IUoUo, automatic / 3-step for GEL/AGM/wet/lead acid batteries |
| Charge voltage Bulk (25 ̊C) * | 28.8 V |
| Charge voltage Absorption (25 ̊C) * | 28.5 V |
| Charge voltage Float (25 ̊C) * | 26.5 V |
| Max. Absobtion time * | 4 hours |
| Max. Bulk time (start @ 13.25/26.5V) * | 8 hours |
| Min. Absorption time * | 15 min. |
| Battery capacity (recommendation) | 400-1500 Ah |

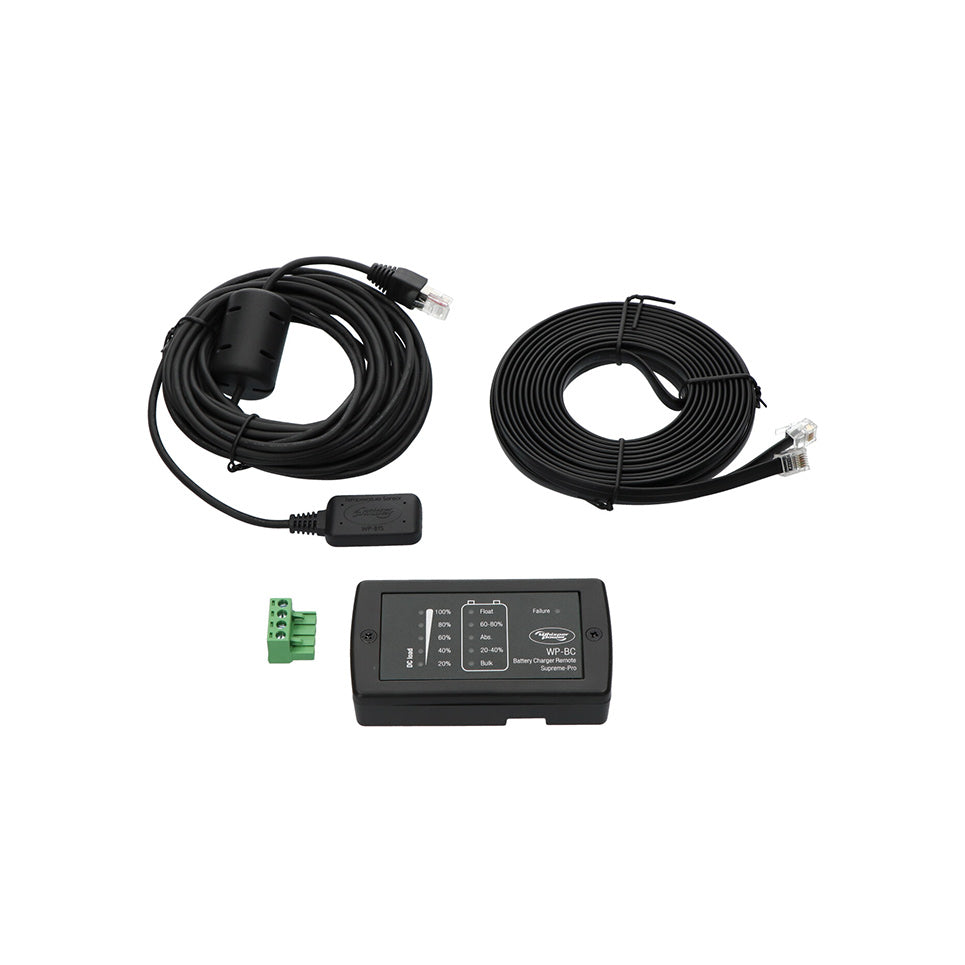

| Temperature compensation | By BTS-Battery temperature sensor, standard supply |
| Power factor (cos phi) | _> 0.97 |
| Full load consumption (230VAC) | 3375 VA |
| Voltage compensation | Yes, automatic |
| DC consumption with connected battery | < 5 mA |
| Display | LCD |
| Temperature range | -25 to +60 ̊C / -13 to 140 ̊F, above 40 ̊C derating |
| Cooling | Vario fan and natural cooling to ensure optimized cooling |
| Sound level | < 55dBA @ 1 m |
| Protection degree | IP23 |
| Optional | - Remote panel WP-SCC with current adjust- Touch panel 5, 7 or 10 inch |
Documents: Datasheet
