Description

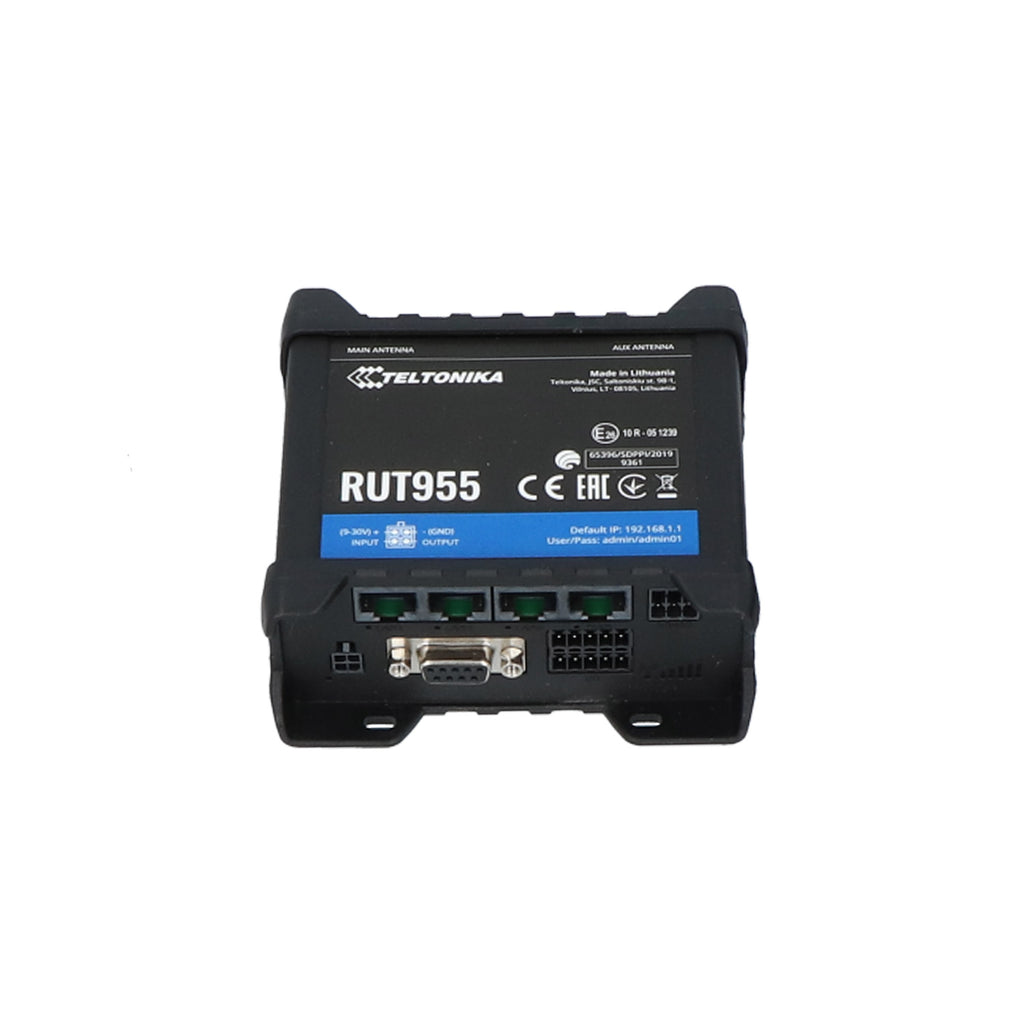

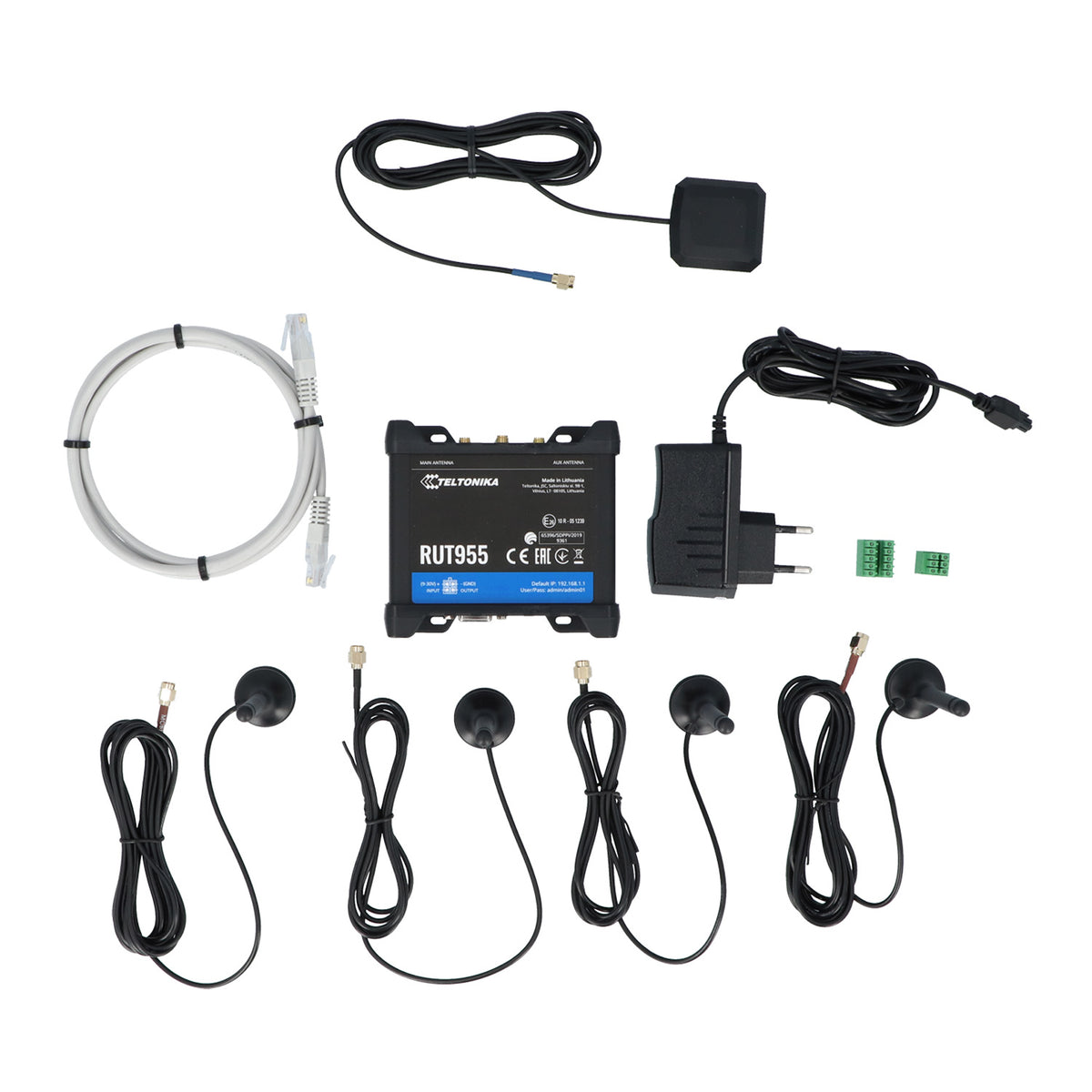

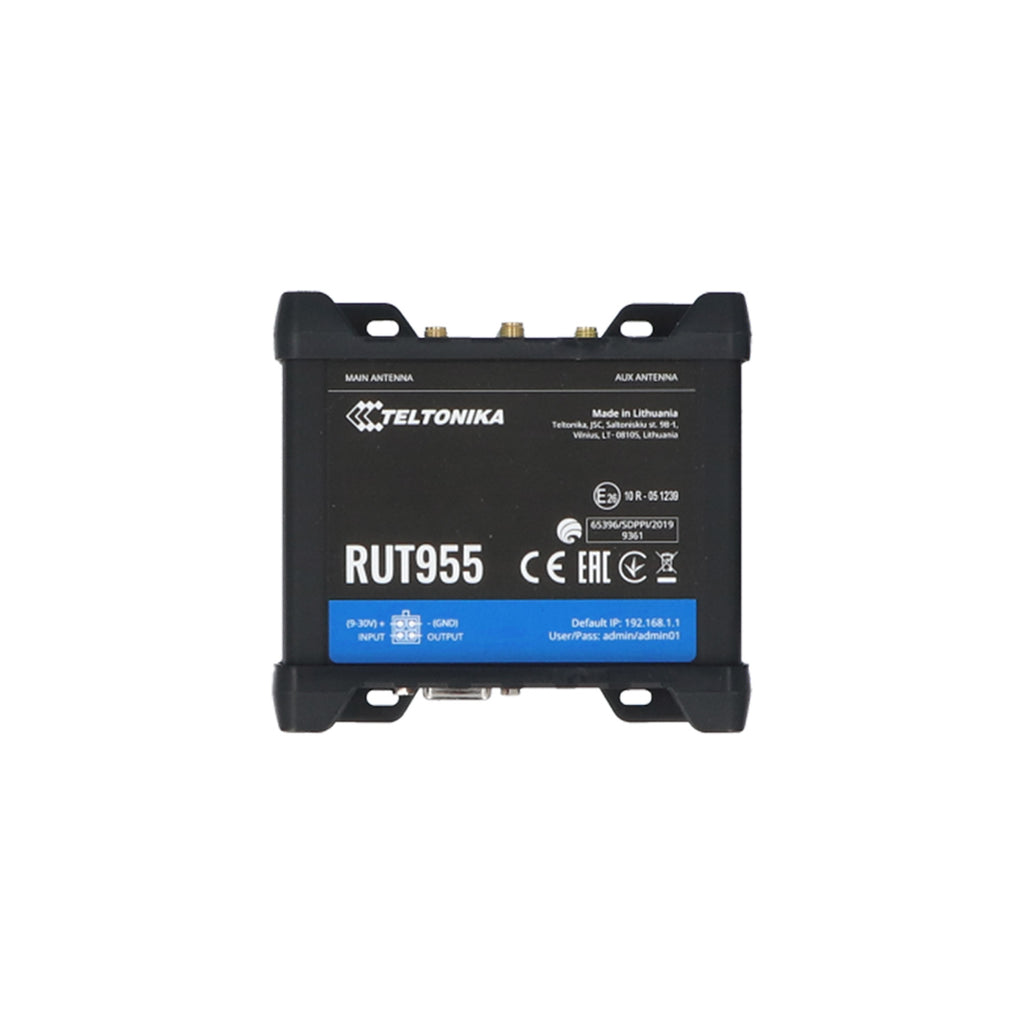

WhisperCare 1.5 cloud-based monitoring/control and communication router enables complete control of WhisperPower systems. Onboard, in the vehicle, or remotely.
WhisperCare displays at a glance all the essential information of the WhisperPower system of a ship, vehicle, or off-grid object. It can be connected to the WP 7 or 10 inch Touch Panel, or to existing screens (Garmin, Raymarine, Simrad, Navico, and many others). If the internet is available, the system information can be accessed remotely via the cloud from a computer, tablet or mobile phone.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60116059 |
| Main specifications | |
| Input voltage | 9 - 30 V |
| Power consumption | <2 W idle, <7 W Max |
| Operation temperature | -20 °C to +75 °C |
| Storage temperature | -40~80 °C, Relative humidity in operation/storage up to 95% non-condensing |
| Mobile connectivity | 4G/LTE (Cat 4), 3G, 2G |
| SIM | Dual SIM (Mini SIM - 2FF), with auto switch |
| Wireless (Wi-Fi) | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Ethernet | 1x WAN port 10/100 Mbps, 3x LAN ports, 10/100 Mbps |
| Location GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Mechanical specifications | |
| Casing material | Aluminium housing, plastic panels |
| Dimensions (h x w x d) | 100 x 110 x 50 mm |
| Weight | <0.5 kg |
| Ingress Protection Rating | IP30 |
| Installation advice | For interior use |
