Description

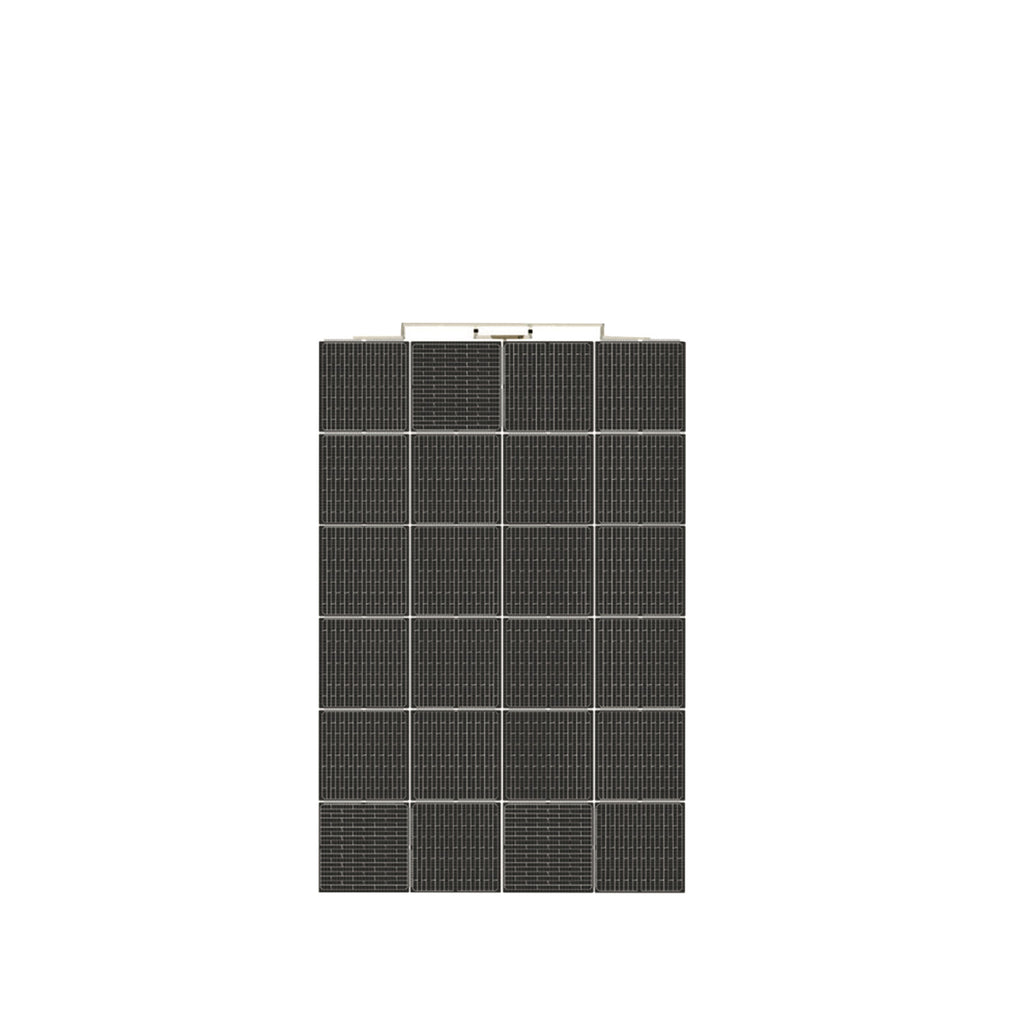

Introducing the WhisperSolar Flex 124 Wp, our cutting-edge, versatile solar module. These panels epitomize the ultimate in solar technology flexibility and efficiency. At only 2.2 kg/m2 and less than 2 mm in thickness, they are exceptionally light and flexible, perfect for various applications including marine and remote deployments.
These modules are completely waterproof and resistant to saltwater, designed for durability and compliance with IEC 61215, IEC 61730, and IEC 61701 standards. They feature integrated bypass diodes that minimize power losses from shading to ensure a steady energy supply. Compatible with battery systems ranging from 5 to 48 volts, including lead-acid and lithium types, and manufactured with pride in Europe, the WhisperSolar Flex marks a new era in sustainable energy technology.
Technical data
| Manufacturer | WhisperPower |
| Article number | 60110438 |
| Dimensions & weight | |
| Length x width x height | 1046 x 683 x 2 mm (41.2" x 26.9" x 0.1" inch) |
| Weight | 1.7 kg / 3.7 lb. |
| Main specifications | |
| Maximum power [W] | 124 |
| Max power Voltage Vmp [V] | 13.1 |
| Max power Current Imp [A] | 9.5 |
| Open circuit voltage Voc [V] | 16 |
| Short circuit current Isc [A] | 9.8 |
| NOCT [°C] | 45 ± 2 |
| Operating temperature [°C] | -40/+85 |
| Temp. coeff. Pmax [%/°C] | -0.38 |
| Temp. coeff. Voc [%/°C] | -0.27 |
| Temp. coeff. Isc [%/°C] | 0.05 |
| Maximum system voltage [V] | 1000 V |
| Maximum reverse current [A] | 12 A |
| Safety class | A |
| Mechanical specifications | |
| Columns x Rows (cells n°) | 4 x 6 (24) |
Documents: User manual · Brochure
Need help choosing the right solution or with installation? Write to us – we are happy to help.
